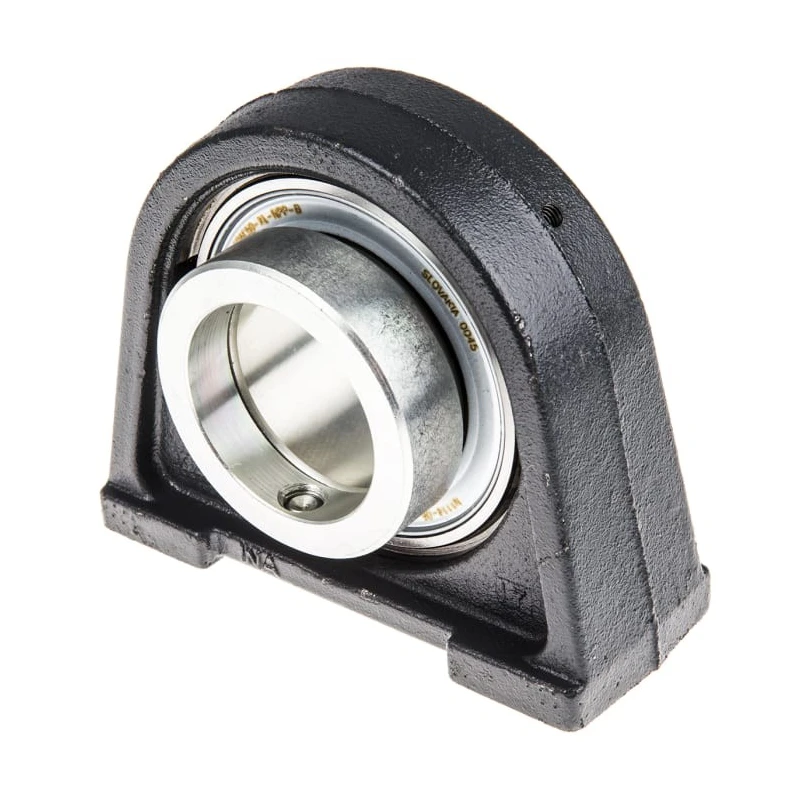

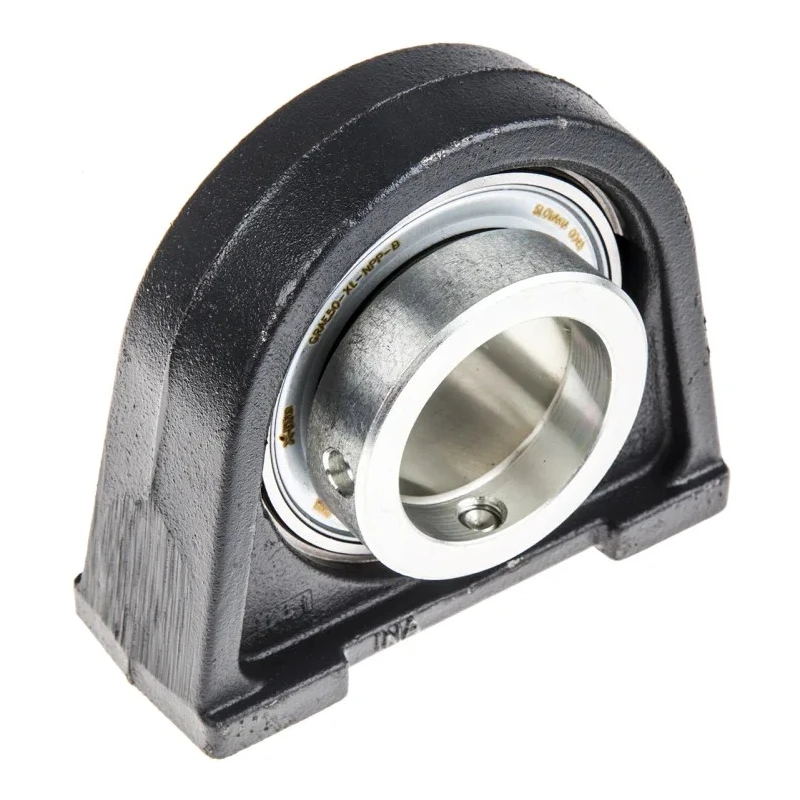

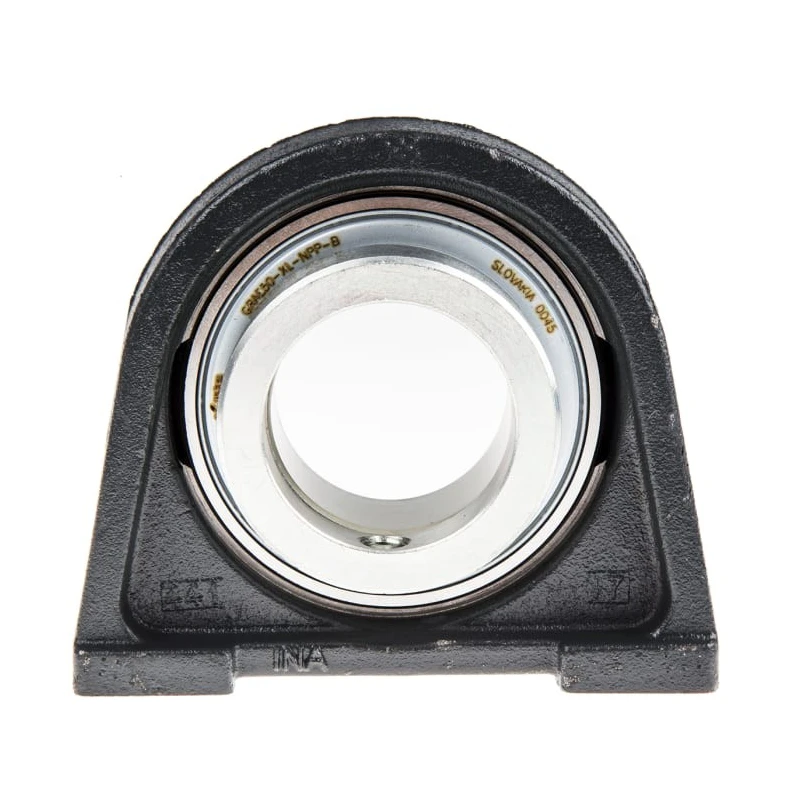

INA Plummer Block Housing Unit Cast Iron 50 mm Inside Diameter PSHE50-XL-N

INA PSHE50-XL-N Plummer Block Housing Unit is a robust and precisely engineered component designed to support rotary bearings in a wide range of industrial applications. Manufactured from cast iron, it offers excellent durability and resistance to wear, making it suitable for harsh operating conditions. The housing features a 50 mm inside diameter, making it compatible with shafts of that size.

The unit's centre height of 57.2 mm aligns with standard shaft systems, facilitating straightforward installation. The plummer block houses INA radial insert ball bearings precisely fitted to ensure optimal bearing performance and longevity.

The inclusion of an M16 mount hole size and a mount hole centre-to-centre distance of 101.6 mm provides secure and stable fixing. The overall dimensions - 135 mm length, 54 mm depth, and 115 mm height - make it a compact yet sturdy housing suitable for many mechanical machinery and rotary bearing systems.

The spherical outside surface of the bearing outer ring combined with the concave bore of the housing allows for compensation of static angular misalignment, thereby enhancing functional reliability under all operating conditions.

This product is part of the INA PSHE series, recognised for extended product life and energy-saving benefits, aligning with environmental sustainability goals. It is a new condition product made in India, ideal for manufacturing, mechanical engineering, maintenance, and fluid power systems applications.

Constructed from durable cast iron for long service life. Designed as a plummer block housing unit suitable for rotary bearing installations. Features an inside diameter of 50 mm to fit specified shaft sizes. Centre height of 57.2 mm ensures compatibility with standard shaft alignments.

Equipped with M16 mounting hole size and 101.6 mm mount hole centre-to-centre distance for secure installation. Overall dimensions include length 135 mm, depth 54 mm, and height 115 mm. Matched with INA radial insert ball bearings to provide reliable bearing performance.

Spherical bearing outer ring and concave housing bore accommodate static angular misalignment. Suitable for industrial applications requiring robust rotary bearing units including mechanical and fluid power systems.
