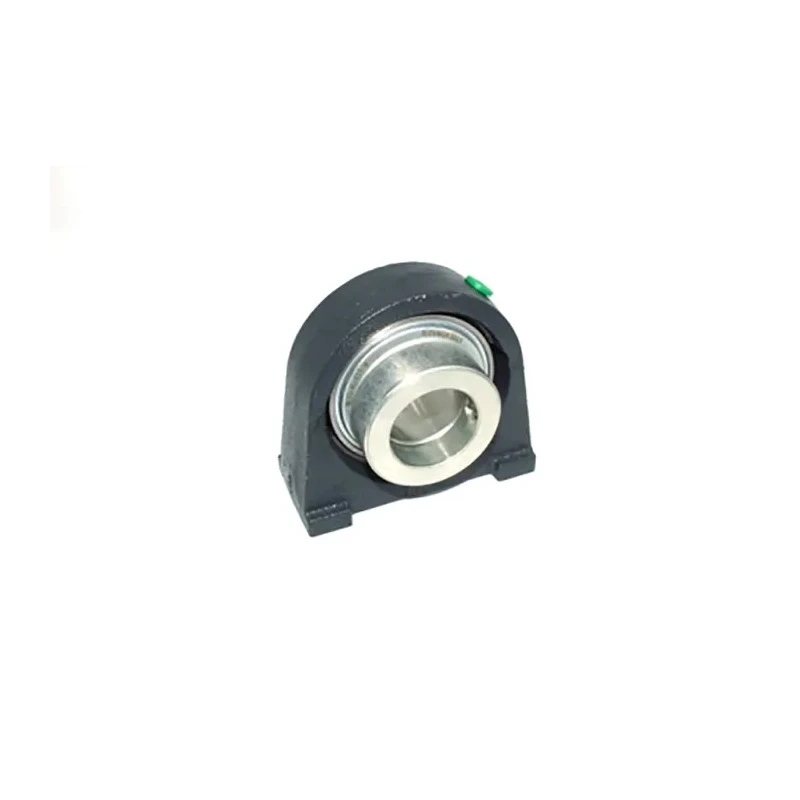

INA Plummer Block House Cast Iron 40 mm ID RSHE40-XL-N

INA RSHE40-XL-N Plummer Block House is a high-quality rotary bearing housing unit made of cast iron, featuring a 40 mm inside diameter that supports radial insert ball bearings. This plummer block is part of the RSHE series, designed for reliable function and ease of installation in industrial machinery.

The housing unit offers a centre height of 49.2 mm, length of 116 mm, and depth of 56.5 mm, with M12 mounting holes spaced 88.9 mm apart center-to-center, providing stable and secure mounting options. The height of 99 mm accommodates proper bearing seating and shaft alignment.

The spherical outside surface of the bearing ring combined with the concave bore of the housing compensates for static angular misalignment, enhancing operational reliability under varied conditions. These ready-to-fit housings are commonly screw mounted on adjacent structures and are principally used as locating bearings but are also suitable for non-locating bearing applications under low loads and speeds.

Manufactured from cast iron, this unit ensures durability and extended service life. It supports energy saving and sustainability initiatives under the RS Better World program, emphasizing extended product life and energy efficiency.

Constructed from durable cast iron for long service life. Inside diameter of 40 mm suitable for specified shaft sizes. Centre height measures 49.2 mm ensuring proper shaft alignment. Equipped with M12 sized mounting holes for secure installation.

Overall length is 116 mm and depth is 56.5 mm for compact mounting. Mount hole centre-to-centre distance is 88.9 mm for stable fixation. Product height is 99 mm providing adequate housing volume. Designed to compensate for static angular misalignment of shafts.

Screw mounted housing unit ready to fit adjacent construction. Suitable for both locating and low-load non-locating bearing applications.

This plummer block is ideal for use in mechanical machinery and spare parts for industrial tools and equipment, contributing to applications in manufacturing, fluid power systems, and rotary bearing support roles.
