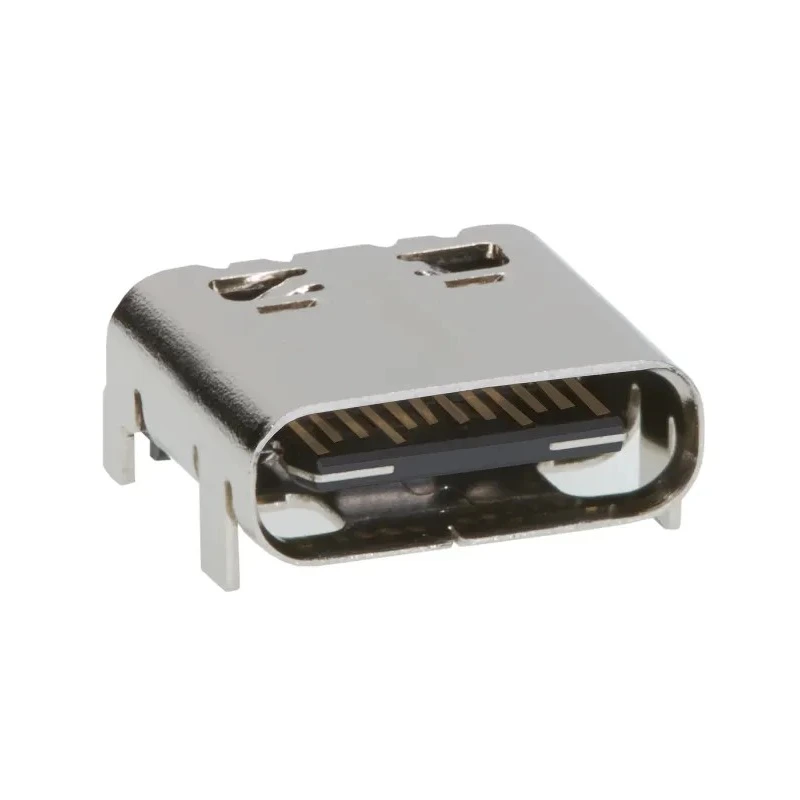

Molex Right Angle Surface Mount Female USB Type C Connector USB 3.1 5A 30V 105450-0101

Molex 105450-0101 Right Angle Surface Mount Female USB Type C Connector is engineered to deliver high-speed USB 3.1 data transfer at rates up to 10 Gbps and support power transmission of 5A at 30V. The connector features a robust construction using copper alloy contacts with gold-plated termination points that guarantee durability and corrosion resistance. Its thermoplastic housing is designed to perform reliably under operating temperatures ranging from -30°C to 85°C, making it suitable for demanding industrial environments.

The right-angle orientation of this USB Type C connector allows efficient use of space in compact electronic assemblies. It is designed for surface mounting and utilizes solder termination to ensure strong mechanical and electrical connections. The connector supports three insert mould processes to reinforce the mating tongue, enhancing solder joint strength and longevity.

Highly durable with a service life rated for up to 10,000 mating cycles, this Molex USB connector also includes full shielding to protect against electromagnetic interference during high-speed data transmissions.

Typical applications include computer networking devices, charging ports, and gaming hardware where USB Type C connectors are preferred for their reversible plug orientation and superior performance. The design reduces downtime by enabling faster charging - by 40% to 64% compared to older USB standards - and offers compatibility with modern laptops, phones, and tablets.

Supports data transfer speeds up to 10 Gbps. Rated for 5A current and 30V voltage. Gold-plated copper alloy contacts ensure corrosion resistance. Right-angle surface mount design ideal for space-constrained layouts. Thermoplastic housing with operating temperature range - 30°C to +85°C.

Fully shielded to minimize electromagnetic interference. Durable up to 10,000 cycles mating life. Wire-to-board application for versatile electronics integration. Mating tongue strengthened by triple insert mould processes.

Suitable for computer, networking, and gaming device interfaces.

This Molex USB connector series provides a reliable and efficient solution for high-speed power and data transfer needs in industrial, commercial, and consumer electronics applications. Explore more Connectors and components in the Electronics Components category on EnvMart.
