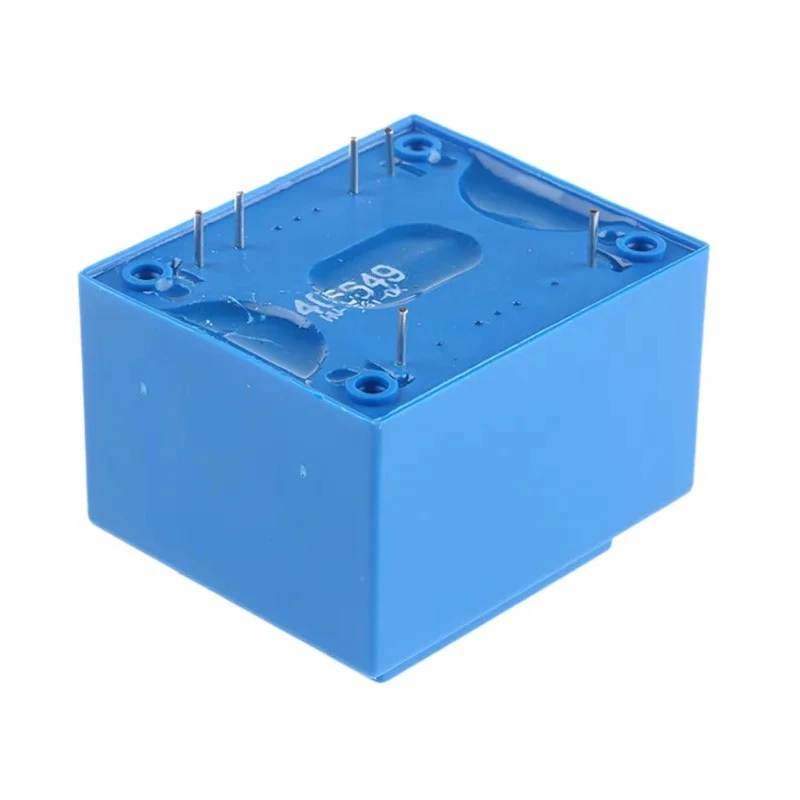

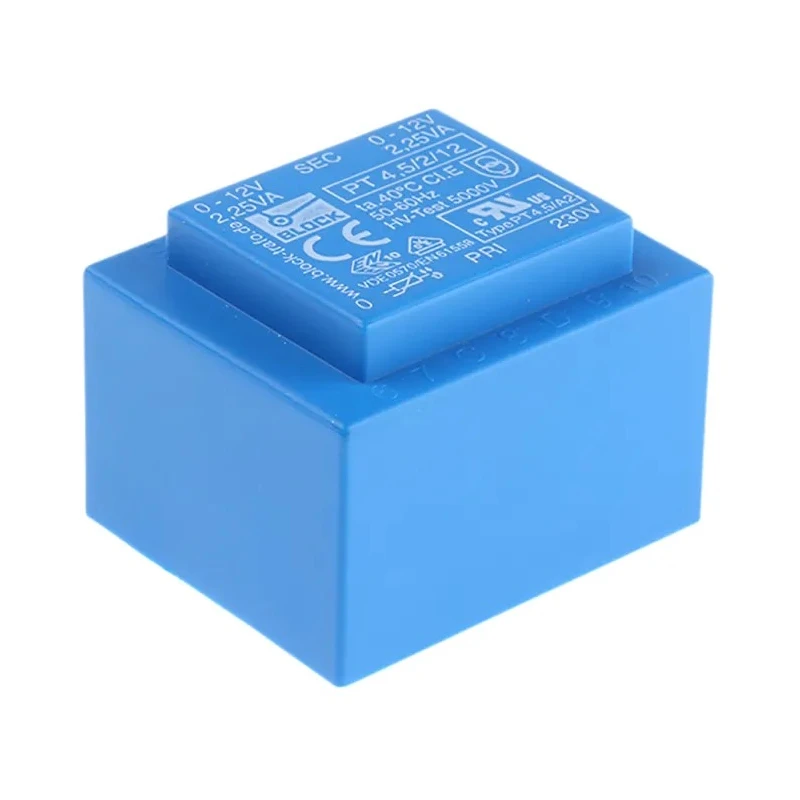

Block 12 V AC 2 Output Through Hole PCB Transformer 4.5 VA PT 4.5/2/12

Free Delivery in India | Lowest Global Shipping Charges

Block 12 V AC 2 Output Through Hole PCB Transformer 4.5 VA PT 4.5/2/12

Name: Block 12 V AC 2 Output Through Hole PCB Transformer 4.5 VA PT 4.5/2/12
Brand: Block
SKU: 275508
Price: 23.19 USD
Availability: InStock



Category PCB Transformer Brand Block Condition New

Specifications

Country of Origin	Germany
Brand	Block
Efficiency	65%
Length	44mm
Model	PT 4.5/2/12
Depth	37mm
Gross Weight	190g
Width	33mm
Mount Type	Through Hole
Maximum Operating Temperature	40°C
Number of outputs	2
Winding Type	Single Primary, Dual Secondary
Standards/Approvals	UL, VDE
Primary Voltage	230 V ac
Secondary Voltage	12 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz

Key Features

Primary voltage rating of 230 V AC for mains compatibility.
Dual secondary outputs each providing 12 V AC voltage.
Constructed for through hole PCB mounting ensuring secure installation.
High efficiency of 65% and protected by UL and VDE certifications.
Operating frequency range between 50 Hz minimum and 60 Hz maximum.
Maximum operating temperature rated at 40°C ensuring thermal reliability.
Features vacuum epoxy resin moulding to UL94-V0 standard for safety and durability.
Includes extra fixing holes for secure mountings on boards.

Product Description

Block PT 4.5/2/12 is a 12 V AC PCB Transformer designed with two independent secondary outputs delivering a total power of 4.5 VA. It is engineered for through hole PCB mounting, ideal for compact electronic power supply applications.

This transformer operates at a primary voltage of 230 V AC, suitable for common mains power input. The device features a single primary and dual secondary winding type, allowing for series or parallel connections as per design requirements.

Its compact dimensions of 44 mm length, 33 mm width, and 37 mm depth, combined with a weight of 190 grams, provide easy integration into PCB layouts without excessive space consumption.

The PT series transformers incorporate internal PTC devices for short circuit protection and are vacuum epoxy resin moulded, achieving UL94-V0 fire retardant rating. The use of double section glass fibre reinforced polyamide bobbins enhances mechanical strength.

Operating within a frequency range of 50 Hz to 60 Hz and maximum temperature of 40°C, this transformer ensures reliable and efficient performance, boasting 65% efficiency and low temperature rise during operation. It is certified to UL and VDE standards, attesting to its safety and quality compliance.

Additional features include low inter-winding capacitance to reduce noise, low radiated electromagnetic interference, and extra fixing holes for secure mounting on PCBs especially for 4.5 VA and above models.

Primary voltage: 230 V AC. Secondary voltage: 12 V AC with 2 outputs. Power rating: 4.5 VA. Mount type: Through hole for PCB. Standards: UL and VDE certified. Compact size: 44x33x37 mm (LxWxD). Weight: 190 grams. Efficiency: 65%.

Operating frequency: 50-60 Hz. Max operating temperature: 40°C.

This transformer is suitable for electronic components, power supplies, and transformer applications requiring reliable low power AC voltage transformation on PCBs. It supports industrial, laboratory, manufacturing, and HVAC control systems demanding UL and VDE compliant toroidal transformers.
