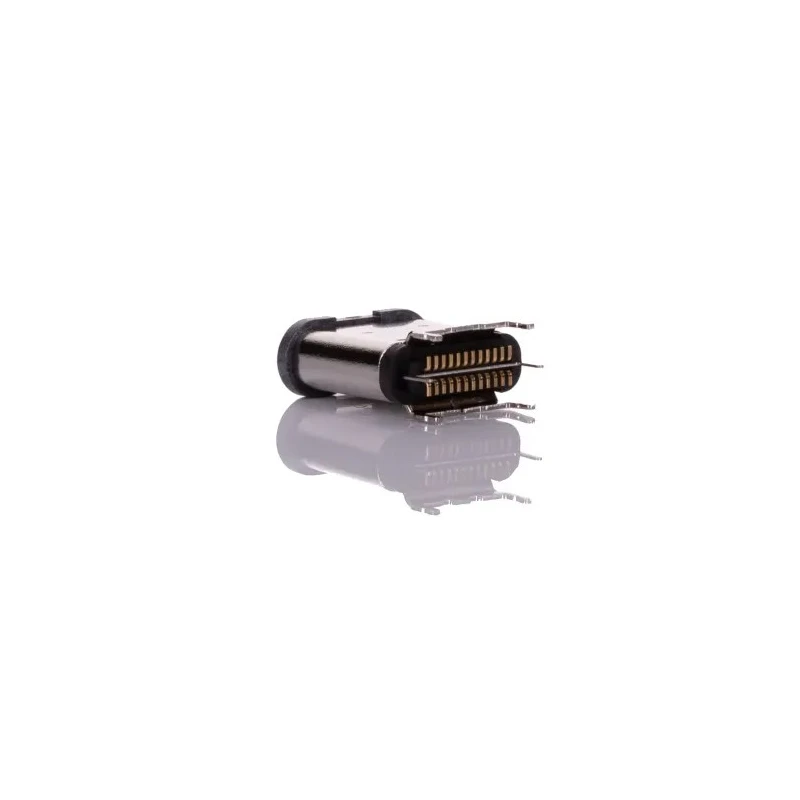

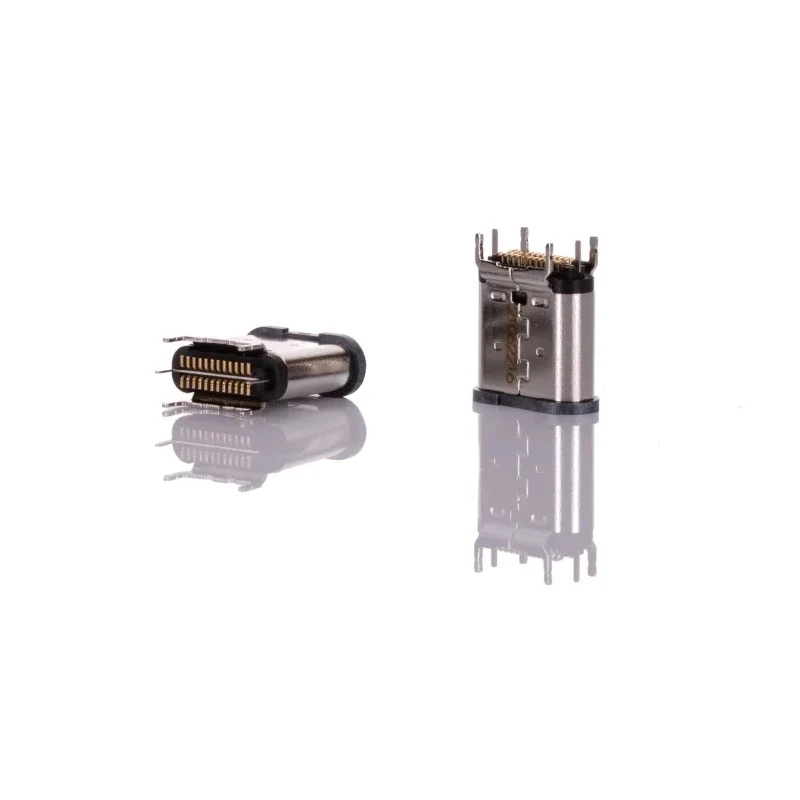

Molex Vertical Surface Mount USB Type C Female Connector USB 3.1 30V 5A 204711-0001

Molex 204711-0001 is a USB Type C female connector designed for vertical surface mounting, supporting USB 3.1 standards to transmit data and power simultaneously. Rated for 30 volts and 5 amperes, it accommodates high speed USB 3.1 data transfer rates of up to 10Gbps, providing efficient communication for computers and multimedia devices.

The connector uses copper alloy contacts with gold plating to resist corrosion, ensuring a reliable and durable connection even in challenging conditions. Its surface mount termination style ensures a secure attachment to printed circuit boards (PCBs), with a mechanical life of 10,000 mating cycles for extended operational longevity.

Operating over a temperature range of -30°C to 85°C, this connector is well-suited for industrial, communication, mobile phone, tablet, and CCTV security system applications, where consistent USB signal transmission and robust physical connection are critical.

The product is part of Molex's USB Products and Solutions series and is manufactured in China to meet industrial connector standards. It is intended for use in environments requiring dependable high-speed data and power delivery through a compact, single-port USB Type C interface.

Complies with USB 3.1 standard enabling 10Gbps data transmission. Surface mount termination style ensuring strong PCB connection. Gold-plated copper alloy contacts for enhanced corrosion resistance. Rated for 5A current and 30V voltage suitable for power delivery.

Wide temperature range from -30°C to 85°C for various conditions. Mechanical lifetime rated for 10,000 mating cycles for reliability. Compact design compatible with mobile devices and CCTV systems. Vertical orientation supports space-saving PCB layouts.
