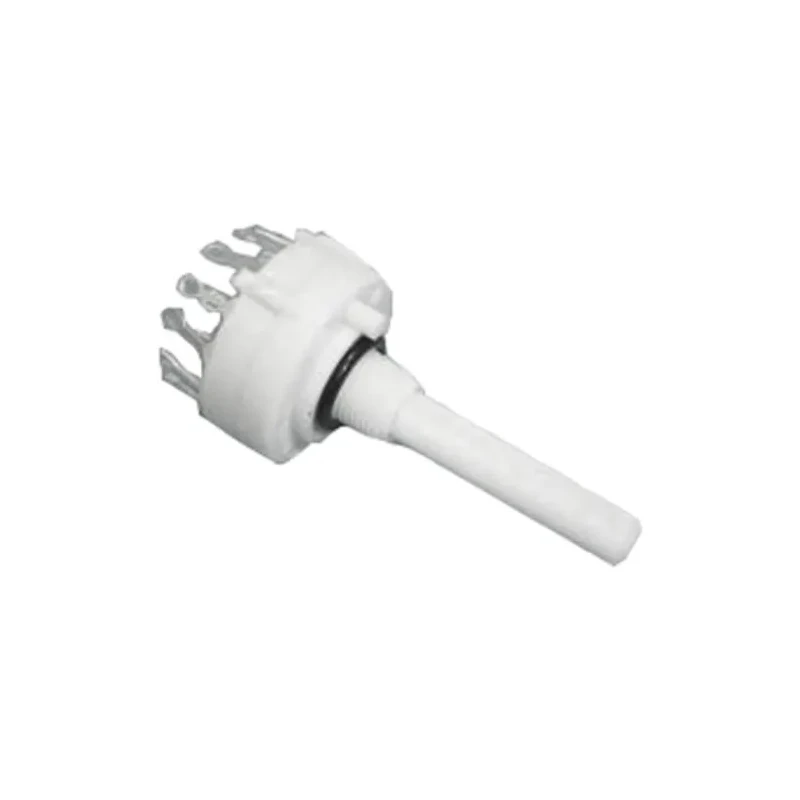

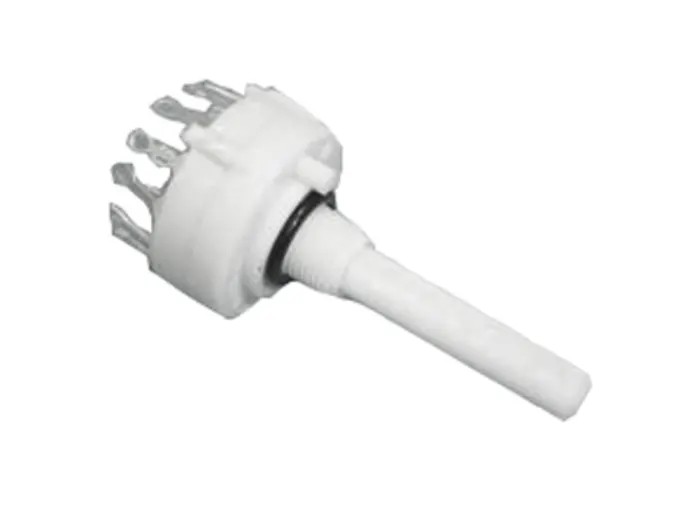

Lorlin CK Rotary Switch, 1A Contact Current, PCB Terminal, IP65 Sealed, 24V AC/DC, 90° Angle of Throw, Black Actuator CKF1060
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Diameter | 27.5mm |
| Brand | Lorlin |
| Model | CKF1060 |
| Depth | 27.5mm |
| IP Rating | IP65 |
| Width | 26.2mm |
| Mount Type | PCB |
| Housing Material | Polyamide |
| Series | CK |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -30°C |
| Terminal type | PCB Terminal |
| Maximum dc Voltage | 24V dc |
| Standards/Approvals | RoHS |
| Switch Operation | Rotary |
| Actuator Colour | Black |
| Switch Contact Current | 1A |
| Mechanical Life | 10000Cycles |
| Maximum AC Voltage | 24V ac |
| Angle of Throw | 90 ° |
Key Features
- The switch features a black actuator with a 90° angle of throw for precise mechanical operation.
- Constructed with a durable polyamide housing, ensuring resistance to environmental wear.
- Offers IP65 front panel sealing, providing effective protection against dust and water ingress.
- Supports up to 4 poles per switch and a maximum of 12 positions, enabling versatile signal routing.
- Mechanical life rated at 10,000 cycles ensures long-term reliability in industrial usage.
- Operates efficiently within temperature ranges from -30°C to 85°C for varied environmental conditions.
- Terminal type is designed as PCB terminals for easy and secure mounting on circuit boards.
- Compliant with RoHS standards, supporting environmentally responsible manufacturing.
Product Description
Lorlin CKF1060 rotary switch is a high-quality IP65 sealed rotary switch designed for reliable electrical signal control in industrial and electronic applications. Featuring a black actuator with a 90° angle of throw, this switch enables precise multi-position switching with up to 4 poles and 12 positions.
Its robust polyamide housing provides excellent durability and insulation, while the front panel sealing rated IP65 ensures protection against dust and water, making it suitable for harsh environments. The switch is mounted using PCB terminals, facilitating straightforward integration into circuit boards.
Operating at a contact current rating of 1A and supporting voltages up to 24V AC and 24V DC, the CKF1060 is ideal for automation, control systems, and signal switching tasks. Its mechanical life of 10,000 cycles ensures long service life and reliability in demanding industrial settings.
The switch functions within a broad temperature range of -30°C to 85°C, accommodating various operating conditions. It conforms to RoHS standards, ensuring compliance with environmental regulations.
The switch's compact dimensions (27.5mm diameter and 26.2mm width) allow for efficient space usage. Dampened indexing and reduced axial play provide a smooth feel and precise operation. Available in solder or PCB terminal options, with this product specifically having PCB terminals.
Shorting (make before break) or non-shorting (break before make) contacts cater to varied switching requirements.
Made in the United Kingdom, the Lorlin CKF1060 rotary switch is a cost-effective solution for signal switching in electronics, automation, and industrial manufacturing sectors. Its IP65 seal and mechanical robustness make it a dependable choice for both commercial and industrial use.
Explore other components in our Rotary Switch category on EnvMart to find complementary products for your project requirements.
Explore more products in our Rotary Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating for this model is 1A.
It supports a maximum voltage of 24V AC and 24V DC.
The switch has an IP65 rating, providing effective protection against dust and water ingress.
The angle of throw for the CKF1060 rotary switch is 90 degrees.
The switch has a diameter of 27.5mm and a width of 26.2mm.
The mechanical life of the CKF1060 is rated at 10,000 cycles.
This model uses PCB terminals for easy and secure mounting on circuit boards.
It operates efficiently within a temperature range of -30°C to 85°C.
The housing is constructed from durable polyamide, ensuring resistance to environmental wear.
Yes, it is compliant with RoHS standards, supporting environmentally responsible manufacturing.
This switch supports up to 4 poles and a maximum of 12 positions for versatile signal routing.
The CKF1060 rotary switch is made in the United Kingdom.
