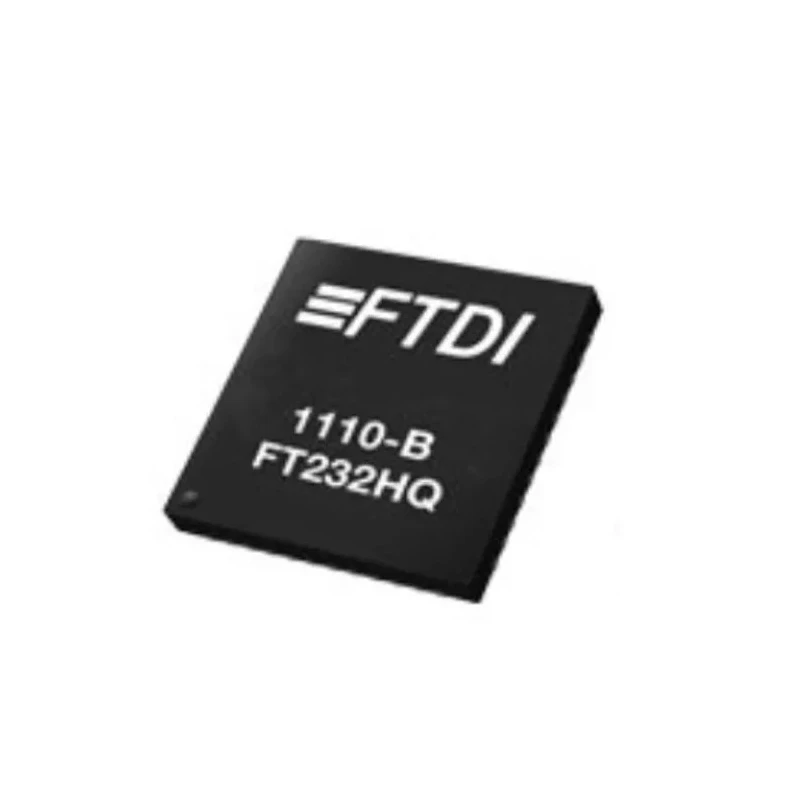

FTDI Chip Controller IC 1-Channel, 12 Mbps, 1.98V, USB 2.0, 1.8 V, I2C, UART, SPI, 48-Pin QFN FT232HQ-TRAY

FTDI Chip FT232HQ-TRAY is a controller integrated circuit designed for efficient USB 2.0 interface applications supporting a single channel with data transfer speeds up to 12 Mbps. Operating at a supply voltage between 1.8V and 1.98V, this device facilitates multiple protocol interfaces including USB, I2C, UART, and SPI, making it highly versatile for embedded system designs.

Featuring a compact 48-pin QFN surface mount package with a height of 850μm and length of 8mm, it suits space-constrained PCB layouts. The device operates reliably across an industrial temperature range from -40°C to 85°C and includes robust ESD protection to safeguard against electrostatic discharge hazards common in electronics manufacturing and use.

The FT232HQ-TRAY belongs to the FT232H series, offering flexible serial or parallel FIFO interface configurations supporting data rates up to 40 Mbytes/s. It integrates onboard voltage regulators delivering 3.3V and 1.8V from a single 5V input source, accompanied by a power-on-reset function to ensure stable start-up conditions.

The device is engineered with a synchronous, half-duplex FT1248 bus option employing 1 to 8 data lines, enabling designers to optimize bandwidth versus pin utilization according to system requirements. The 3.3V I/O structure with 5V tolerant inputs allows seamless interfacing with FPGAs and microcontrollers operating at different voltage levels.

Software support includes royalty-free virtual COM port and D2XX drivers compatible with a wide range of operating systems such as Microsoft Windows (from XP to Windows 7), Apple Mac OSX, and Linux distributions, facilitating ease in driver deployment and integration.

Supports multiple serial protocols for versatile communication. Compact 48-pin QFN package ideal for modern PCB designs. Wide operating temperature range suited for industrial environments. Onboard voltage regulator simplifies power supply design.

Enhanced ESD protection improves device reliability. High data rates up to 12 Mbps on USB 2.0 interface. Compatible with multiple operating systems through provided drivers. Allowance for bandwidth and pin count customization with FT1248 bus.

This product is suitable for industrial, manufacturing, communication, and embedded applications requiring reliable USB interfacing with flexible serial communication standards. Explore more USB Interface ICs and semiconductor components with FTDI Chip brand products in the EnvMart catalog for your industrial electronics and embedded system projects.
