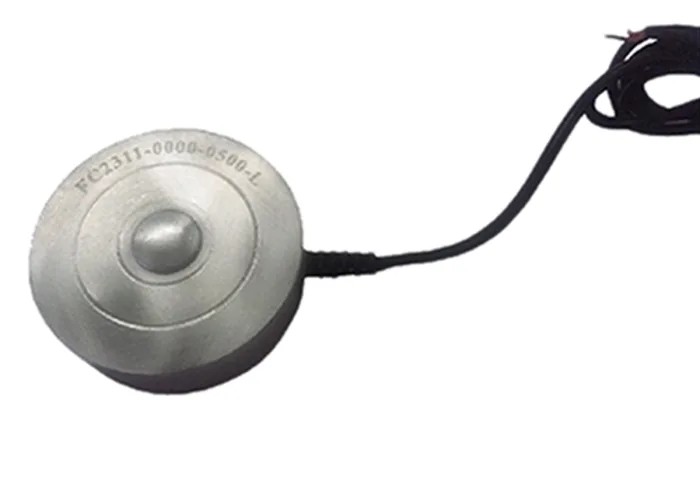

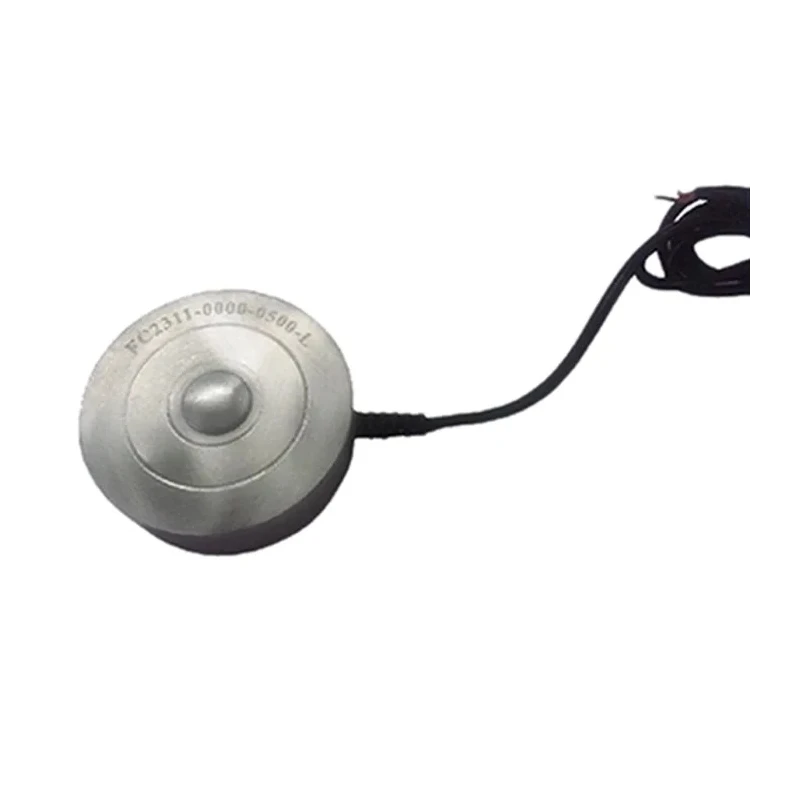

TE Connectivity FC23 Series Compression Load Cell, Plastic Housing, 0 lbf to 227 kg Measurement Range, Thermal Compensation
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 10.2mm |
| Model | FC23 |
| Depth | 25.4mm |
| Width | 10.2mm |
| Housing Material | Plastic |
| Series | FC23 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Standards/Approvals | RoH, IEC61000-4-3, CE, IEC61000-4-2 |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 227kg |
| Gauge Length | 31.75mm |
| Minimum Force/Load Measurement | 0lbf |
| Honeywell Button Load Cell, 227kg Range, Compression MeasureBrand | Honeywell |
Key Features
- Robust plastic housing ensures durability in industrial environments.
- Thermally compensated for zero and span changes under temperature variations.
- Wide operating temperature range from -40°C to 85°C for diverse applications.
- Microfused technology enables long life cycle with superior resolution.
- High over-range capability and low deflection for reliable force sensing.
- Suitable for load sensing, robotics, pumps, weighing, and force control systems.
- Interchangeable with normalized zero and span for ease of replacement.
- Fast response time enhances precision in dynamic measurements.
Product Description
TE Connectivity FC2311-0000-0500-L FC23 Series Compression Load Cell provides accurate force measurement within a range of 0 lbf to 227 kg. Its robust plastic housing and microfused technology deliver exceptional reliability and long life cycle expectancy, ideal for industrial and laboratory use.
Thermal compensation ensures minimal zero and span drift across an operating temperature range from -40°C to 85°C, suitable for demanding environmental conditions. The sensor features low deflection and high over-range capability, making it suitable for precise compression force sensing.
Compact with dimensions of 31.75 mm gauge length, width and length both 10.2 mm, and depth 25.4 mm, this load cell includes a wire terminal for straightforward electrical connection. Its interchangeable design with normalized zero/span simplifies replacements and system upgrades.
This load cell is widely used in industrial automation, robotics end-effectors, pumps, hoist and winch load measurements, weighing systems, batch weighing, and variable force control applications.
Robust plastic housing ensures durability in industrial environments. Thermally compensated for zero and span changes under temperature variations. Wide operating temperature range from -40°C to 85°C for diverse applications.
Microfused technology enables long life cycle with superior resolution. High over-range capability and low deflection for reliable force sensing. Interchangeable with normalized zero and span for ease of replacement. Suitable for load sensing, robotics, pumps, weighing, and force control systems.
Fast response time enhances precision in dynamic measurements. Compact dimensions with 31.75 mm gauge length and wire terminal for easy integration.
This product is part of EnvMart's high-quality Load Cell offerings designed for industrial, laboratory, and automation applications. Explore more sensors and precision measurement devices in our Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TE Connectivity FC23 Series Compression Load Cell has a measurement range from 0 lbf to 227 kg.
This load cell has a gauge length of 31.75 mm, a width and length of 10.2 mm, and a depth of 25.4 mm.
This model measures compression forces.
The housing of this load cell is made from plastic.
Thermal compensation minimizes zero and span drift under temperature variations, ensuring accurate measurements.
It features a wire terminal for straightforward electrical connection.
It complies with RoHS, IEC61000-4-3, CE, and IEC61000-4-2 standards.
This load cell is suitable for load sensing, robotics, pumps, weighing systems, and force control applications.
It features a high over-range capability, allowing for reliable force sensing beyond the specified measurement range.
This model has a fast response time, enhancing precision in dynamic measurements.
Yes, it has an interchangeable design with normalized zero and span for ease of replacement and system upgrades.
