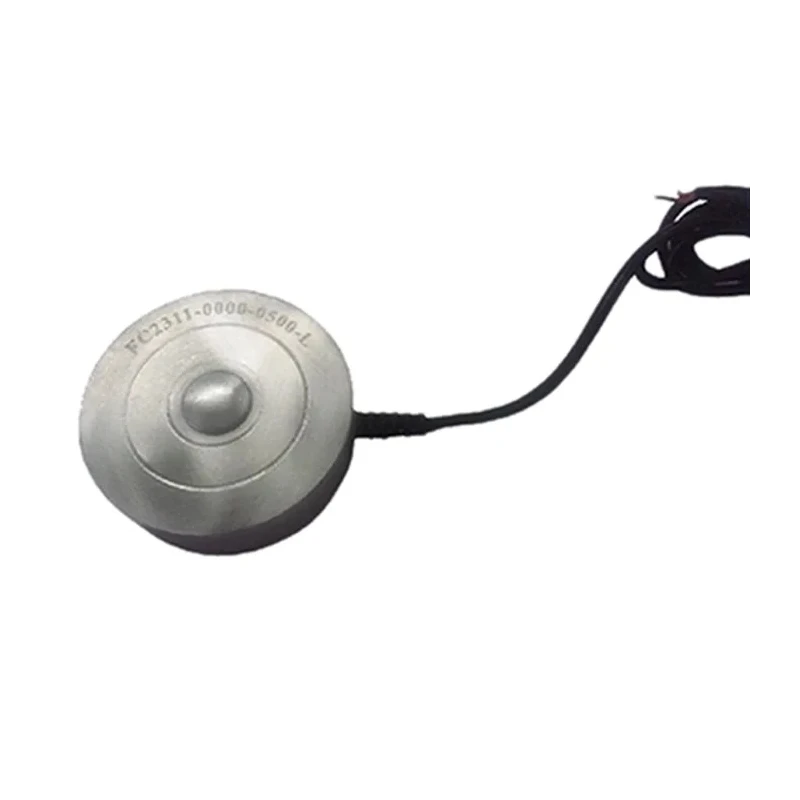

TE Connectivity FC23 Series Load Cell Compression Force Sensor 0 lbf to 227 kg Measurement FC23
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Length | 10.2mm |
| Model | FC23 |
| Depth | 25.4mm |
| Width | 10.2mm |
| Housing Material | Plastic |
| Series | FC23 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Standards/Approvals | RoH, IEC61000-4-3, CE, IEC61000-4-2 |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 227kg |
| Gauge Length | 31.75mm |
| Minimum Force/Load Measurement | 0lbf |
Key Features
- Measures compressive forces accurately from 0 lbf to 227 kg.
- Constructed with a durable plastic housing for long-term operation.
- Terminated with wire leads for easy integration.
- Gauge length of 31.75 mm allows stable sensor response.
- Temperature operating range from -40°C to 85°C for versatile use.
- Complies with RoHS, IEC61000-4-3, CE, and IEC61000-4-2 standards.
- Compact size with width 10.2 mm and depth 25.4 mm for tight fitting in assembly.
- Offers high reliability and fast response time suitable for industrial applications.
Product Description
TE Connectivity FC23 Series Load Cell is a robust and precise compression load sensor optimized for industrial and automation applications, measuring forces from 0 lbf up to 227 kg. Featuring a plastic housing and wire terminal connections, this load cell is thermally compensated for temperature variations from -40°C to 85°C, ensuring consistent zero and span readings for reliable force measurement.
Utilizing advanced Microfused™ technology, the FC23 load cells deliver superior resolution, exceptional over-range capability, and essentially unlimited life cycle expectancy without degradation typically caused by age-sensitive epoxies. Its compact form factor with gauge length 31.75 mm, depth 25.4 mm, and width 10.2 mm allows integration into space-constrained environments.
Common applications include load sensing in robotics end-effectors, pumps, hoist and winch load monitoring, weighing systems, batch weighing, variable force control, and assembly line force measurement. The sensor's fast response time and high repeatability make it ideal for precision industrial control and automation systems.
Measures compressive forces with high accuracy and stability. Plastic housing protects sensitive gauge elements from environmental stresses. Wide operating temperature range supports diverse industrial environments. Standards-compliant: RoHS, IEC61000-4-3, CE, IEC61000-4-2.
Microfused™ technology enhances durability and sensor lifespan. Compact dimensions enable versatility in machine integration. Reliable sensor option for automation, robotics, and weighing applications.
This TE Connectivity FC23 Load Cell is designed for seamless integration in electric, automation, robotics, manufacturing, and material handling applications. Its interchangeability and robustness provide maintenance and calibration efficiencies. Browse EnvMart's extensive Automation & Control Gear and Sensors categories for complementary industrial components and sensors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This load cell measures compressive forces from 0 lbf to 227 kg.
The operating temperature range for the FC23 load cell is from -40°C to 85°C.
This model has a width of 10.2 mm, a depth of 25.4 mm, and a gauge length of 31.75 mm.
It features a plastic housing that protects sensitive gauge elements from environmental stresses.
The load cell is terminated with wire leads, allowing for easy integration into various systems.
It complies with RoHS, IEC61000-4-3, CE, and IEC61000-4-2 standards.
This load cell utilizes advanced Microfused™ technology for superior resolution and reliability.
It is suitable for load sensing in robotics, pumps, hoist and winch load monitoring, and weighing systems.
The specific weight of the FC23 load cell is not provided in the specifications.
It is designed for essentially unlimited life cycle expectancy without degradation typically caused by age-sensitive epoxies.
It is thermally compensated for temperature variations, ensuring consistent zero and span readings for reliable force measurement.
