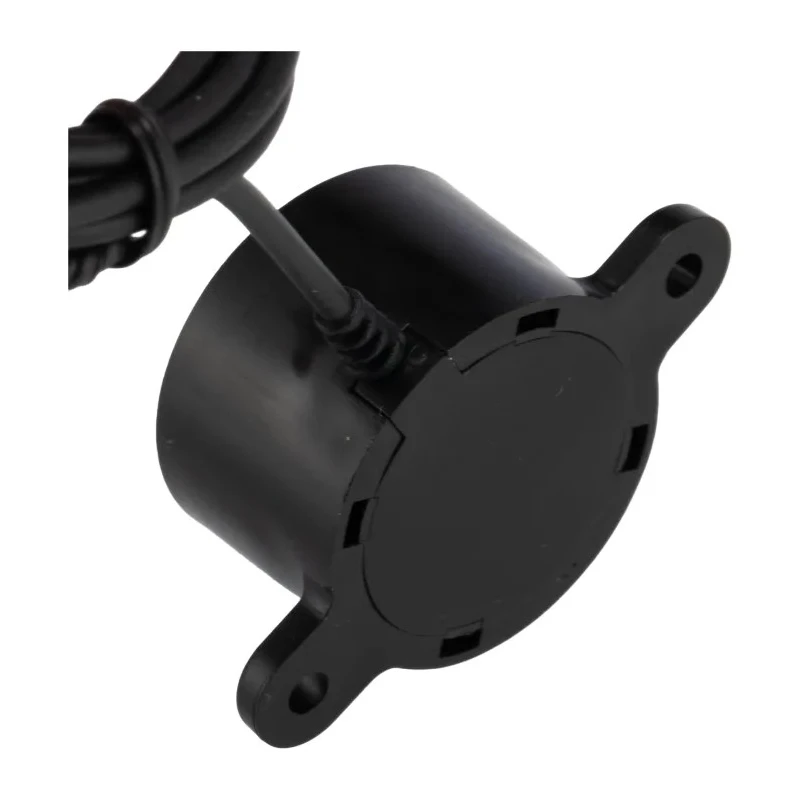

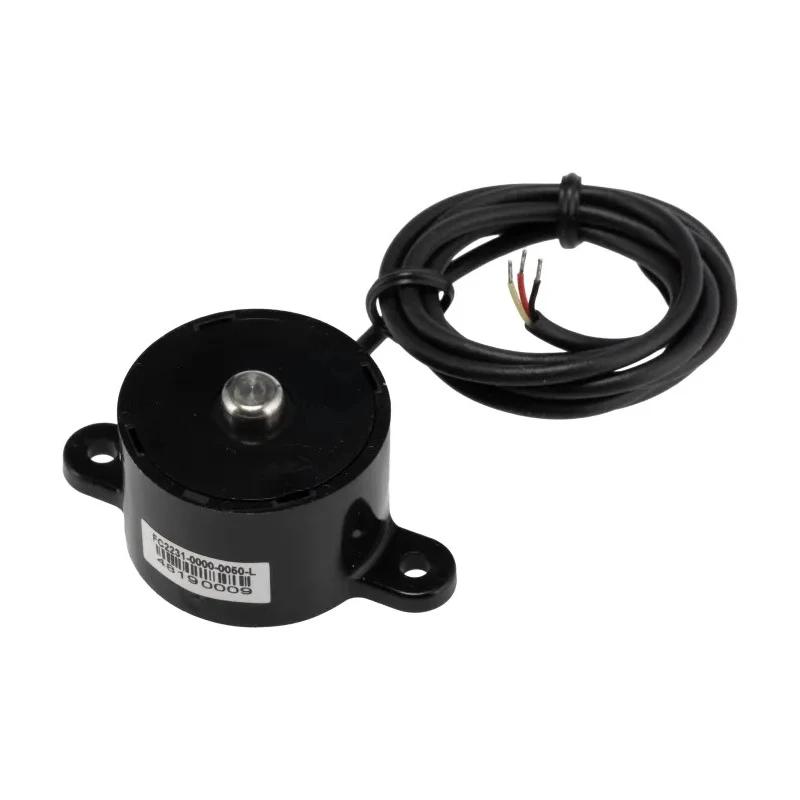

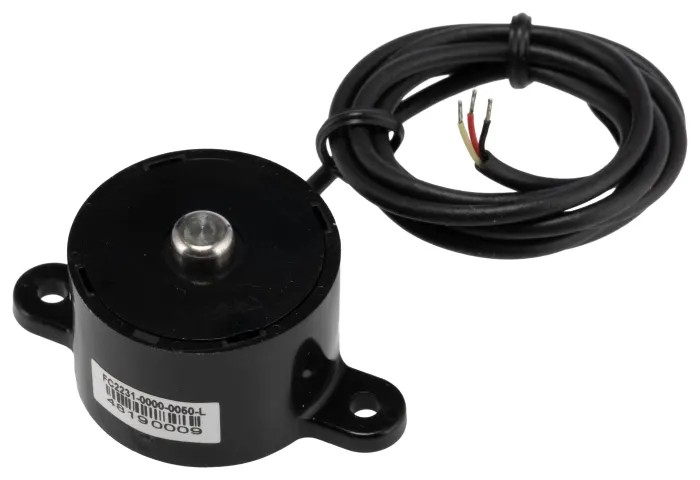

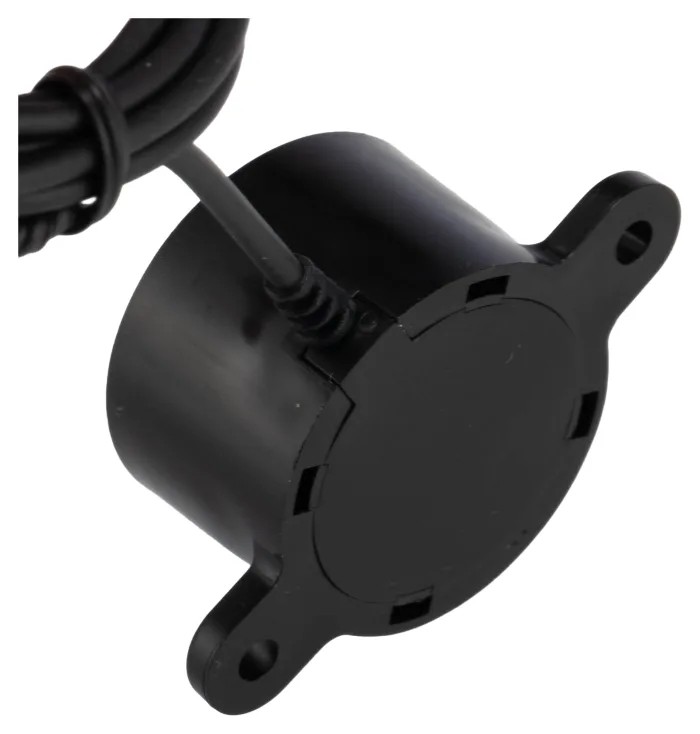

TE Connectivity Microfused Silicon Piezoresistive Compression Load Cell 22.6 kg 3kΩ FC22
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Model | FC22 |
| Depth | 34mm |
| Sensor Type | Microfused Silicon Piezoresistive |
| Width | 16.8mm |
| Housing Material | Plastic |
| Series | FC22 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Wire |
| Maximum dc Voltage | 5.25V dc |
| Standards/Approvals | IEC55022 Class A, IEC61000-4-3, RoHS Compliant, CE, IEC61000-4-2 |
| Force Measured | Compression |
| Maximum Force/Load Measurement | 22.6kg |
| Gauge Resistance | 3kΩ |
| Gauge Length | 26mm |
| Minimum Force/Load Measurement | 0lb |
Key Features
- Compact and robust load cell for medium compression force sensing.
- Utilizes Microfused technology ensuring unlimited life cycle expectancy.
- Thermally compensated for zero and span stability across temperature ranges.
- High resolution and fast response for precise measurement needs.
- Reverse polarity protected for durability and reliability.
- Suitable for applications including pumps, robotics, medical infusion, exercise equipment, weighing, and household appliances.

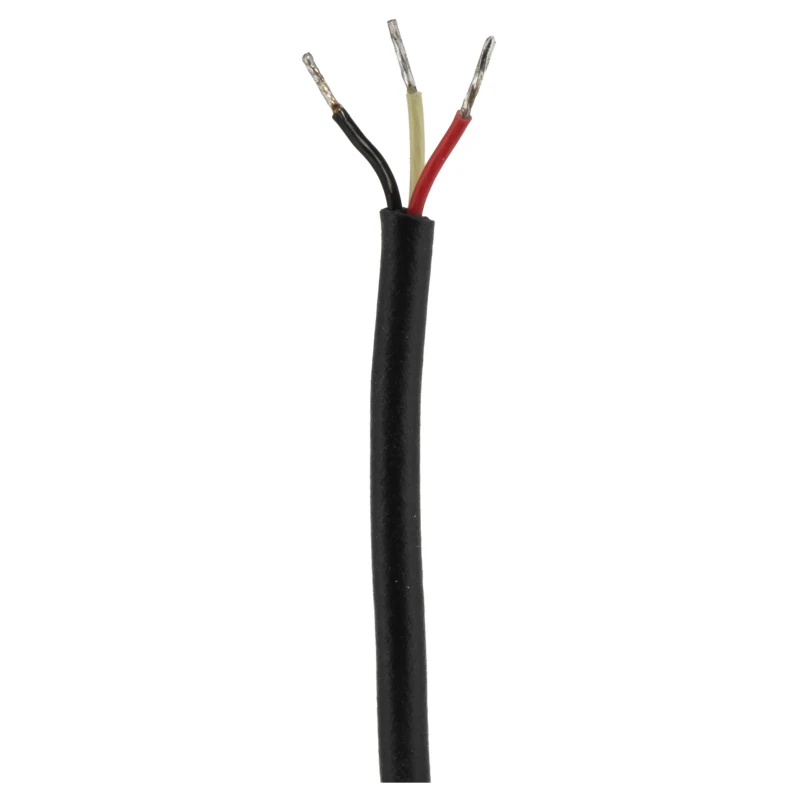

- Plastic housing with wire terminal type for easy mounting and connection.
- Operational temperature range from -40°C to 85°C ensures versatility.
Product Description
TE Connectivity FC2231-0000-0050-L is a high-performance microfused silicon piezoresistive compression load cell designed for precise force measurement up to 22.6 kg. This load cell features Microfused technology which eliminates aging issues associated with traditional epoxies, providing an essentially unlimited lifecycle and superior resolution.
The sensor is thermally compensated for changes in zero balance and span, ensuring high accuracy and interchangeability in varied environments. It has a compact plastic housing for durability and ease of integration with a wire terminal type connection. The device supports a maximum DC voltage of 5.25 V and maintains stable operation between -40°C and 85°C.
Its compact dimensions with a gauge length of 26 mm, width of 16.8 mm, and depth of 34 mm make it ideal for applications with space constraints. Typical uses include variable force control in pumps, medical infusion pumps, robotics end-effectors, contact sensing, load and compression measurement, exercise equipment, weighing devices, and household appliances.
Compact and robust load cell for medium compression force sensing. Utilizes Microfused technology ensuring unlimited life cycle expectancy. Thermally compensated for zero and span stability across temperature ranges. High resolution and fast response for precise measurement needs.
Reverse polarity protected for durability and reliability. Suitable for pumps, robotics, medical infusion, exercise machinery, weighing, and household applications. Plastic housing with wire terminal type for easy mounting and connection.
Operation range from -40°C to 85°C suits diverse industrial environments. Certified to IEC55022 Class A, IEC61000-4-3, RoHS, CE, and IEC61000-4-2 standards. Gauge length of 26 mm and compact size enable versatile installation.
This Load Cell is designed for industrial, laboratory, medical, and commercial applications where reliable and precise compression force measurement is critical. Its robust design and certifications underscore its suitability for harsh and demanding environments.
Explore more measurement and sensing products from TE Connectivity and related categories at EnvMart for all your industrial automation and control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum load measurement for this load cell is 22.6 kg.
It operates within a temperature range of -40°C to 85°C.
This load cell utilizes Microfused silicon piezoresistive technology.
The load cell has a gauge length of 26 mm, a width of 16.8 mm, and a depth of 34 mm.
The gauge resistance is 3 kΩ.
The maximum DC voltage supported is 5.25 V.
The housing material is plastic.
Yes, it is suitable for applications including medical infusion pumps.
It is certified to IEC55022 Class A, IEC61000-4-3, RoHS, CE, and IEC61000-4-2 standards.
It features a wire terminal type connection for easy mounting.
It is suitable for applications such as pumps, robotics, exercise equipment, and weighing devices.
The load cell is thermally compensated for zero and span stability across temperature ranges.
