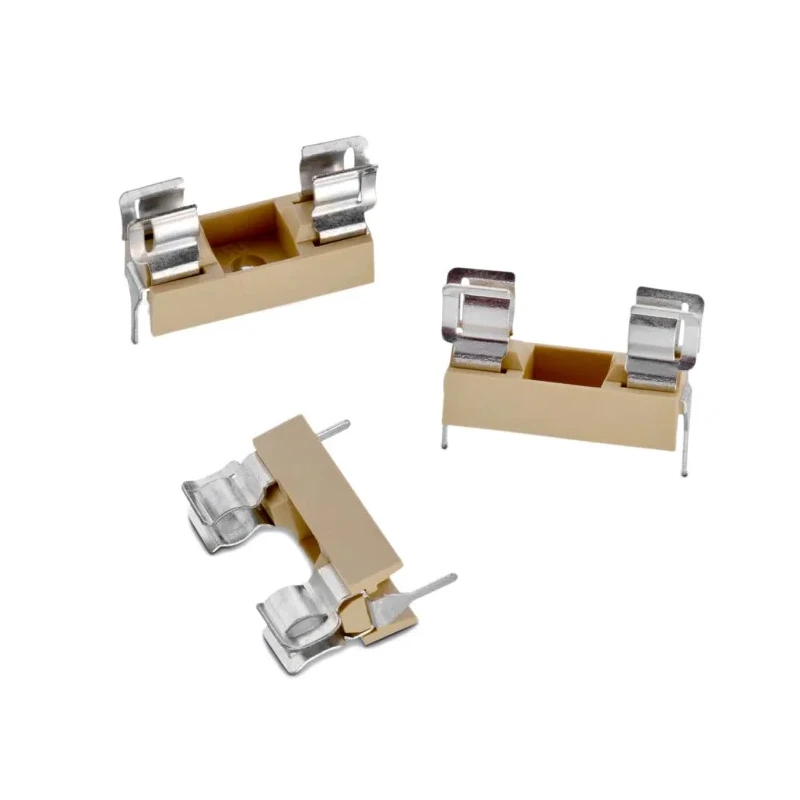

Wurth Elektronik 10A 250V AC 1-Pole PCB Mount Fuse Holder for 5 x 20 mm Fuses 696101000002
Specifications
| Country of Origin | Romania |
|---|---|
| Voltage | 250V ac |
| Brand | Wurth Elektronik |
| Body Material | Polyoxymethylene |
| Contact Material | Copper Alloy |
| Current Rating | 10A |
| Series | PTF/15 |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | 30°C |
| Terminal type | Solder |
| Number of Poles | 1 |
| Standards/Approvals | UL, VDE, UL94 V-0, RoHS, cULus |
| Compatible Fuse Size | 5 x 20 mm |
| Cap Style | Slotted |
Key Features
- Constructed from polyoxymethylene body material ensuring durability.
- Compatible with 5 x 20 mm fuses for PCB mount applications.
- Features a slotted cap style and copper alloy contacts for reliable conductivity.
- Rated to operate safely in temperature ranges from 30°C to 120°C.
- Equipped with solder terminal type for secure PCB installation.
- Conforms to UL, VDE, UL94 V-0, RoHS, and cULus standards for safety and quality.
- Provides a working voltage up to 250V AC with a dielectric withstand voltage of 1500V AC per minute.
- Ideal for electrical circuit protection in industrial and electronic manufacturing applications.
Product Description
Wurth Elektronik 696101000002 is a high-quality PCB mount fuse holder designed for 5 x 20 mm fuses, supporting a current rating of 10A and voltage of 250V AC. This single-pole fuse holder is constructed with polyoxymethylene body material, offering excellent mechanical strength and durability under electrical stress.
The fuse holder features copper alloy contacts with matt tin plating over nickel, ensuring reliable electrical conductivity and corrosion resistance. The slotted cap style allows easy fuse replacement while maintaining a secure fit. Operating temperature ranges from 30°C to 120°C, allowing use in varied thermal environments.
Conforming to stringent international safety standards such as UL, VDE, UL94 V-0, RoHS, and cULus, this fuse holder is suitable for industrial electronics, automation systems, and PCB circuit protection applications. The solder-type terminals facilitate robust mounting on printed circuit boards.
Wurth Elektronik's 696101000002 fuse holder offers a dielectric withstand voltage of 1500 VAC/min, ensuring safety against voltage surges. It is made in Romania and designed to meet demanding environmental and electrical reliability requirements in laboratory, manufacturing, and industrial automation contexts.
Durable polyoxymethylene body construction. Reliable copper alloy contacts plated with matt tin over nickel. Compatible with standard 5 x 20 mm fuses. Rated for 10 Amp current and 250 Volt AC voltage. Operating temperature range of 30°C to 120°C.
Slotted cap for easy fuse access. Solder terminals for secure PCB mounting. Certified to UL, VDE, UL94 V-0, RoHS, and cULus standards.
This Fuse Holder optimizes circuit protection performance for electronic device manufacturers and industrial automation projects requiring reliable and accessible fuse mounting. Explore our range of electrical components for your PCB and mounting needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 10A and a voltage of 250V AC.
It is compatible with standard 5 x 20 mm fuses.
The body is constructed from polyoxymethylene, and the contacts are made from copper alloy with matt tin plating over nickel.
The operating temperature range is from 30°C to 120°C.
It features solder terminals for secure mounting on printed circuit boards.
It has a dielectric withstand voltage of 1500V AC per minute.
It conforms to UL, VDE, UL94 V-0, RoHS, and cULus standards.
It features a slotted cap style for easy fuse access and replacement.
This unit is manufactured in Romania.
It belongs to the PTF/15 series.
This fuse holder is a single-pole design.
It is suitable for electrical circuit protection in industrial and electronic manufacturing applications.
