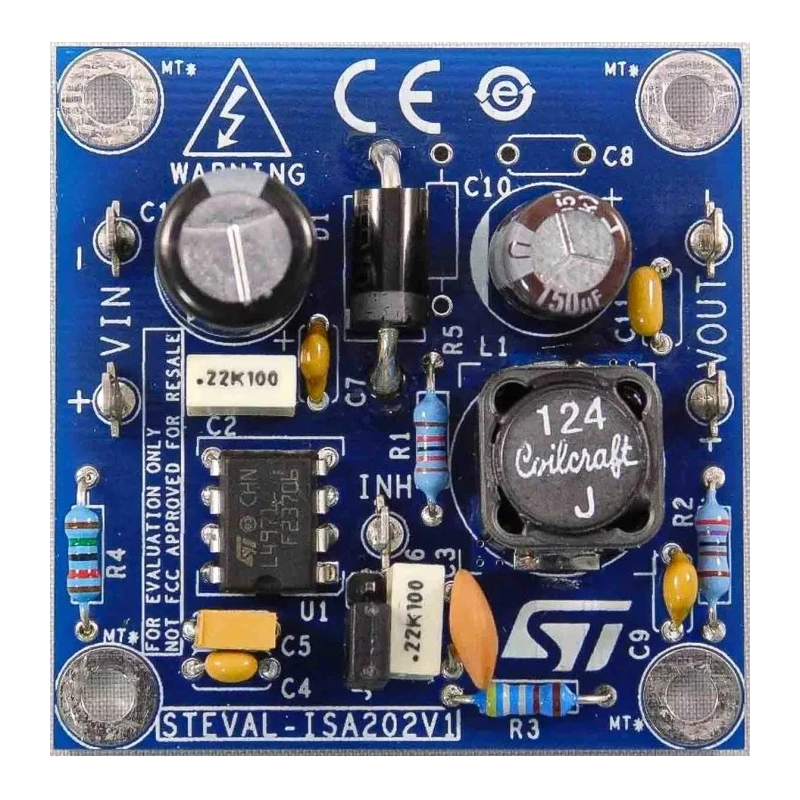

STMicroelectronics Evaluation Board Step Down Switching Regulator for L4971 Asynchronous Step-Down Power STEVAL-ISA202V1
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | STMicroelectronics |
| Model | STEVAL-ISA202V1 |
| Input Voltage Range | 8 V to 55 V |
| Output Current Range | up to 1.5 A |
| Switching Frequency | 200 kHz |
| Output Voltage | 5.1 V ± 3% (line, load and thermal) |
| Current Limit | 2.5 A typ |
| For Use With | Asynchronous Step-Down Power Switching Regulator |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Featured Device | L4971 |
| Kit Name | Evaluation Board |
| Output ripple | less than 51 mV |
| Max output ripple current | 30% |
Key Features
- The device supports an input voltage range from 8 V to 55 V.
- Output voltage is adjustable from 3.3 V to 30 V via external voltage divider, with a typical output of 5.1 V ± 3%.
- Provides output current capability up to 1.5 A with typical current limit of 2.5 A.
- Incorporates zero load current operation for efficient power management.
- Switching frequency is set at 200 kHz for effective regulation.
- Output ripple voltage is maintained below 51 mV to ensure stable performance.
- Suitable for power management development and evaluation in industrial and electronic applications.
- RoHS compliant and manufactured in Italy ensuring quality and compliance standards.
Product Description
The STMicroelectronics STEVAL-ISA202V1 evaluation board provides a comprehensive platform for assessing the performance and capabilities of the L4971 asynchronous step-down power switching regulator. This device enables efficient DC-DC conversion with an input voltage range spanning from 8 V up to 55 V, making it adaptable to diverse power supply conditions.
The output voltage is flexibly adjustable between 3.3 V and 30 V by configuring an external voltage divider network, typically set at 5.1 V with precision of ±3% accounting for line, load, and thermal variations. The board supports output currents up to 1.5 A ensuring suitability for moderate power applications.
Designed for low power loss and heat dissipation, the evaluation board features zero load current operation that reduces energy consumption under light load conditions. The switching frequency is maintained at 200 kHz, providing a balance between efficiency and electromagnetic interference management.
The output ripple voltage is kept minimal, below 51 mV, which promotes power stability and improved performance in sensitive electronic circuits. The evaluation kit includes necessary input and output capacitors capable of sustaining RMS currents for reliable operation across the specified range.
This evaluation board is ideal for use in industrial electronics, power management development, motor controls, and robotics power supplies. It supports engineers and designers in testing and integrating the L4971 regulator into their systems with ease.
The device operates with an input voltage range of 8 V to 55 V. Output voltage adjustable from 3.3 V to 30 V with 5.1 V nominal output. Output current capability up to 1.5 A with typical current limit of 2.5 A. Switching frequency at 200 kHz enhances power regulation.
Maintains output ripple below 51 mV for stable supply. Zero load current operation lowers power consumption. RoHS compliant evaluation board manufactured in Italy.
Explore detailed evaluation and power management solutions with the STEVAL-ISA202V1 board from STMicroelectronics. Find more semiconductor and Evaluation Boards within the Electronics & Electricals category on EnvMart for industrial and research applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this evaluation board is from 8 V to 55 V.
The output voltage is adjustable from 3.3 V to 30 V, with a typical setting of 5.1 V ± 3%.
It can provide output currents of up to 1.5 A, with a typical current limit of 2.5 A.
The switching frequency is set at 200 kHz, which helps in effective power regulation.
The output ripple voltage is maintained below 51 mV to ensure stable performance.
The evaluation kit includes necessary input and output capacitors capable of sustaining RMS currents for reliable operation.
This evaluation board is suitable for industrial electronics, power management development, motor controls, and robotics power supplies.
The evaluation board is manufactured in Italy, ensuring compliance with quality standards.
Zero load current operation reduces energy consumption under light load conditions, enhancing overall efficiency.
Yes, it is RoHS compliant, which ensures it meets specific environmental standards.
The typical output voltage precision is ±3%, accounting for line, load, and thermal variations.
It evaluates the L4971 asynchronous step-down power switching regulator.
