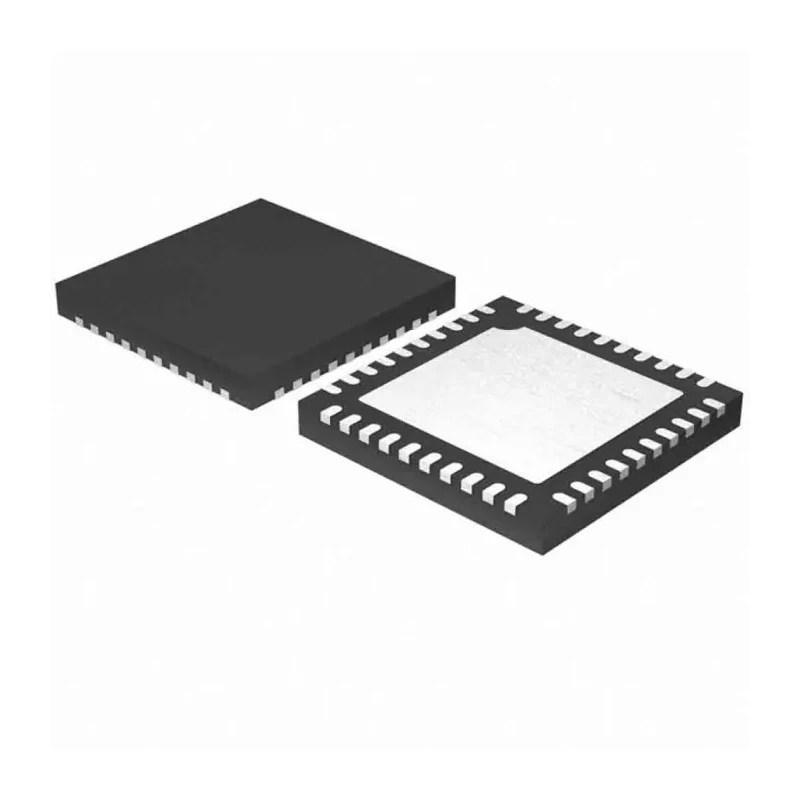

Infineon Controller IC 1-Channel 1 Mbps 2.7-5.5 V USB Type C QFN 40-Pin CYPD3120-40LQXI
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 550μm |
| Length | 6mm |
| Model | CYPD3120-40LQXI |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Pin Count | 40 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 25mA |
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB Type C |
| Supported Protocols | UART, USB, SPI, I2C |
Key Features
- This 40-pin QFN package IC operates at a supply voltage range of 2.7 V to 5.5 V.
- Supports multiple communication protocols including UART, USB, SPI, and I2C for versatile interface compatibility.
- Designed for robust ESD protection and reliability in industrial applications.
- Operates efficiently with a supply current of 25 mA and withstands temperatures from -40°C to +85°C.
- Compact 6 mm length and 550 μm height allow integration into space-constrained designs.
- Ideal for USB Power Delivery port control in notebooks, dongles, monitors, and docking stations.
- Implements Cypress proprietary M0S8 technology with a 32-bit 48 MHz ARM Cortex-M0 processor for optimal control performance.
- Includes integrated gate drivers and system level protection, supporting advanced USB Type-C and PD standards.
Product Description
Infineon CYPD3120-40LQXI is a high-performance Controller IC designed for USB interface applications, featuring a single transceiver channel capable of 1 Mbps data transmission. It operates over a supply voltage range of 2.7 V to 5.5 V with robust electrostatic discharge (ESD) protection, suitable for industrial and commercial electronic devices.
This 40-pin QFN packaged IC integrates Cypress's proprietary M0S8 technology, embedding a 32-bit 48 MHz ARM Cortex-M0 processor with 128 KB flash memory and 8 KB SRAM, offering efficient processing power for protocol management. It supports multiple communication protocols including UART, USB, SPI, and I2C, making it versatile for USB Type-C and Power Delivery implementations.
The IC features integrated gate drivers for controlling external VBUS FETs as well as two FETs to switch a 5 V VCONN supply for powering cables. Its design ensures compliance with the latest USB Type-C and Power Delivery standards, rendering it suitable for notebooks, dongles, monitors, docking stations, and power adapters.
Operating temperature range from -40°C up to +85°C and a low supply current of 25 mA ensure reliable and efficient performance across various environments. The compact footprint (6 mm length, 550 μm height) facilitates integration in space-sensitive electronic assemblies. The surface mount package type simplifies assembly processes for large-scale manufacturing.
This controller IC supports UART, USB, SPI, and I2C communication protocols. Robust ESD protection safeguards sensitive electronic circuits. Operates at minimum 2.7 V and maximum 5.5 V supply voltages. Compact 40-pin QFN package enables high-density board designs.
Thermal operating range from -40°C to +85°C suits demanding industrial applications. Includes integrated gate drivers for external VBUS FETs control. Low supply current requirement of 25 mA enhances energy efficiency. Compatible with USB Type-C and USB Power Delivery standards.
Infineon products like the CYPD3120-40LQXI are widely used in electronic design, industrial automation, and consumer electronics, offering reliable and efficient control in USB interface applications. Explore more semiconductor interface ICs and USB controllers on EnvMart to find components tailored to complex industrial, commercial, and consumer electronics requirements.
Explore more products in our USB Interface IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this model is 1 Mbps.
It operates within a supply voltage range of 2.7 V to 5.5 V.
This unit supports multiple communication protocols including UART, USB, SPI, and I2C.
The operating temperature range is from -40°C to +85°C.
This model comes in a QFN package type.
It has a total of 40 pins.
The height of this controller IC is 550 μm.
The length of this model is 6 mm.
The supply current requirement is 25 mA.
Yes, it is designed with robust electrostatic discharge (ESD) protection.
It is suitable for USB Power Delivery port control in notebooks, dongles, monitors, and docking stations.
It implements Cypress's proprietary M0S8 technology with a 32-bit 48 MHz ARM Cortex-M0 processor.
