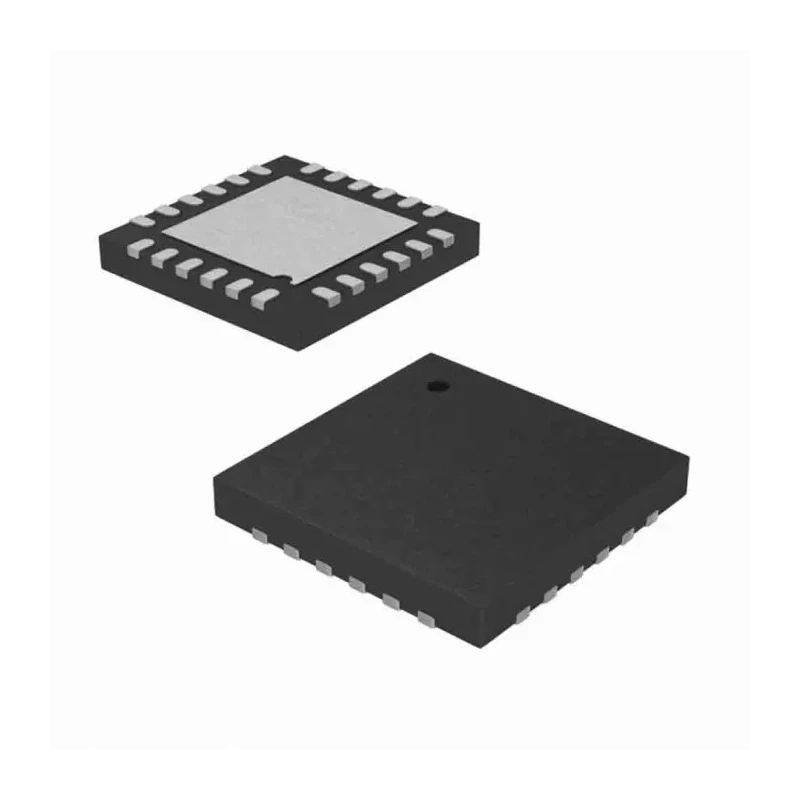

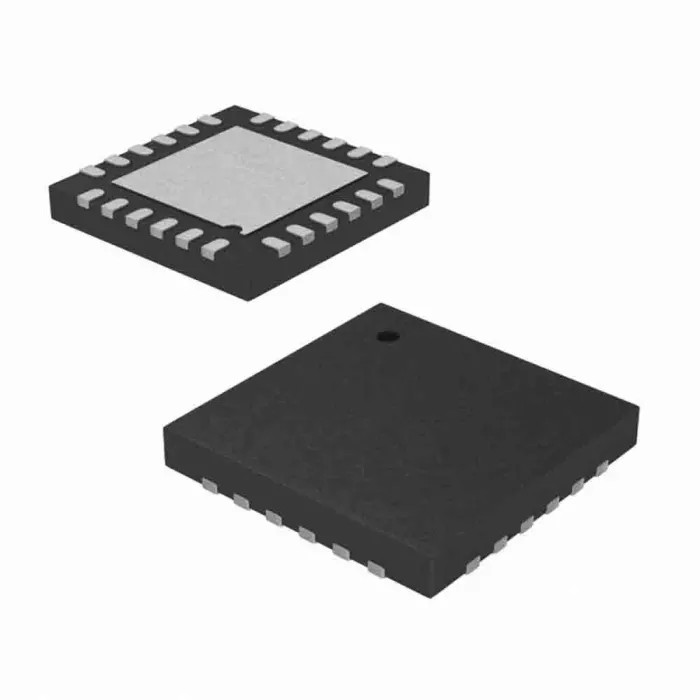

Infineon Controller IC USB Type-C 1 Channel 1 Mbps 5.5V 24-Pin QFN CYPD2122-24LQXI
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 500μm |
| Length | 4mm |
| Model | CYPD2122-24LQXI |
| Mount Type | Surface |
| Series | CCG2 |
| Maximum Operating Temperature | 85°C |
| Package Type | QFN |
| Sub Type | Controller |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB Type-C EMCA cables |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.71V |
| Supply Current | 7.5mA |
| Maximum Data Rate | 1Mbps |
| Number of Transceivers | 1 |
| USB Specification | USB Type C |
| Supported Protocols | USB, I2C, SPI, UART |
Key Features
- Supports USB, I2C, SPI, and UART communication protocols.
- Features ESD protection ensuring device robustness.
- Operates within a temperature range of -40°C to 85°C.
- Uses 32-bit 48-MHz Arm Cortex-M0 processor with 32-KB flash memory for efficient processing.
- Ideal for USB Type-C EMCA cables and powered accessories applications.
- Surface mount design for easy PCB integration.
- Supply current is 7.5mA enabling low power operation.
Product Description
Infineon CYPD2122-24LQXI is a cutting-edge controller IC designed for USB Type-C applications. It features a single channel supporting maximum data rates of 1 Mbps and operates with supply voltages ranging from 1.71V to 5.5V. The device is packaged in a 24-pin QFN surface-mount package with compact physical dimensions of 4mm length and 500μm height, suitable for high-density circuit designs.
Powered by a proprietary 32-bit 48-MHz Arm Cortex-M0 processor with 32-KB flash and 4-KB SRAM, this controller integrates complete USB Type-C transceiver functionality, including termination resistors RP, RD, and RA. The product provides robust ESD protection, meeting demanding operational standards with a temperature rating from -40°C to 85°C and a supply current of 7.5mA.
This IC supports multiple communication protocols such as USB, I2C, SPI, and UART, making it versatile for a wide array of USB Type-C powered accessories, upstream and downstream port applications, and EMCA cable solutions.
Supports USB, I2C, SPI, and UART communication protocols. Offers ESD protection enhancing device reliability. Compact 24-pin QFN surface mount package ensures easy PCB assembly. Operates between -40°C and 85°C for industrial environments.
Integrates 32-bit Arm Cortex-M0 processor with 32-KB flash and 4-KB SRAM. Provides a complete USB Type-C transceiver with integrated termination resistors. Low supply current of 7.5mA for energy-efficient operation. Ideal for USB Type-C EMCA cables and powered accessories.
This controller IC is well-suited for industrial, electronics manufacturing, and consumer device applications requiring reliable USB Type-C connectivity and data transfer. It supports precise power delivery and port control in devices ranging from passive cables to active accessories.
Explore EnvMart’s extensive range of semiconductor and interface ICs for your electronic design needs, and find products like the Infineon CYPD2122-24LQXI for your next-generation USB Type-C solutions.
Explore more products in our USB Interface IC category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum data rate of this controller IC is 1 Mbps.
It supports multiple communication protocols including USB, I2C, SPI, and UART.
This controller IC operates with supply voltages ranging from 1.71V to 5.5V.
The operating temperature range is from -40°C to 85°C.
It comes in a 24-pin QFN surface-mount package.
The supply current is 7.5mA, enabling low power operation.
It is powered by a 32-bit 48-MHz Arm Cortex-M0 processor.
It is ideal for USB Type-C EMCA cables and powered accessories applications.
The dimensions are 4mm in length and 500μm in height.
Yes, it features ESD protection to enhance device reliability.
It utilizes a surface mount design for easy PCB integration.
This model belongs to the CCG2 series.
