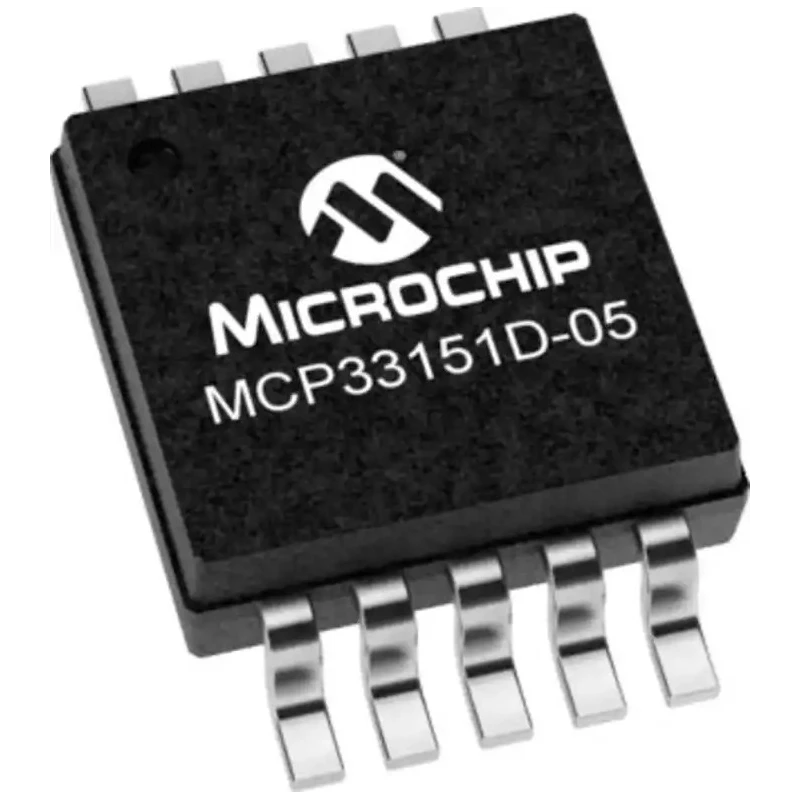

Microchip 14-Bit Successive Approximation ADC 500ksps Serial Interface Surface Mount 10-Pin MCP33151D-05-E/MS
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 14 bit |
| Brand | Microchip |
| Height | 1.1mm |
| Length | 3mm |
| Model | MCP33151D-05-E/MS |
| Mount Type | Surface |
| Sampling rate | 500ksps |
| Series | MCP331X1-XX |
| Input Type | Single Ended |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial |
| Architecture | SAR |
| Standards/Approvals | AEC-Q100 |
| Pin Count | 10 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.7V |
| Number of ADCs | 1 |
Key Features
- Features a successive approximation register (SAR) architecture for 14-bit resolution.
- Operates with a single-ended input and provides a serial SPI interface.
- Designed for surface mount with a 10-pin package for compact integration.
- Supports a wide operating temperature range from -40°C to 125°C.
- Low power consumption with 1.5μA standby and 0.33mA active current.
- Suitable for battery-powered systems and remote data acquisition.
- Meets automotive standard AEC-Q100 for harsh environments.
- Maximum supply voltage of 5.5V and minimum of 1.7V for flexible system design.
Product Description
Microchip MCP33151D-05-E/MS is a 14-bit analog-to-digital converter (ADC) featuring a SAR architecture and high-speed 500ksps sampling rate. This surface-mount device with a 10-pin configuration is optimized for applications demanding precise and reliable data acquisition.
The device accepts a single-ended input and communicates via an industry-standard SPI interface, allowing seamless integration with PIC microcontrollers and other embedded systems. Its low power consumption makes it ideal for battery-operated devices and portable instrumentation.
This ADC operates comfortably within a broad temperature range of -40°C to 125°C, and it adheres to the automotive AEC-Q100 standard, ensuring durability in challenging industrial and automotive environments.
Its maximum supply voltage of 5.5V, combined with a minimum of 1.7V, enables flexible power options. The small 3mm by 1.1mm package height allows for compact PCB designs. Features a successive approximation register architecture providing precise 14-bit resolution.
Single-channel ADC with a 10-pin surface mount package. Supports a 500ksps sampling rate suitable for high-speed signal conversion. Low power consumption supports battery-powered and remote applications. Operating temperature from -40°C to 125°C supports industrial and automotive use.
AEC-Q100 automotive qualification ensures high reliability. Serial SPI interface for easy microcontroller integration. Compact size with 3mm length and 1.1mm height dimensions.
This device is highly suitable for industrial automation, motor control, electric vehicle battery management systems, medical instrumentation, and switch-mode power supplies. It allows engineers to add precision 14-bit ADC capability to embedded systems requiring efficient power management and robustness.
Explore EnvMart's extensive range of semiconductor components and data converters to find reliable, high-performance solutions for your specialized electronic designs.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts a single-ended input, making it compatible with various signal types.
The supply voltage can range from a minimum of 1.7V to a maximum of 5.5V, allowing for flexible power options.
The device has a length of 3mm and a height of 1.1mm, allowing for compact PCB designs.
Yes, it meets the AEC-Q100 automotive standard, ensuring reliability in automotive applications.
This unit contains one ADC, designed for single-channel applications.
It is suitable for industrial automation, motor control, electric vehicle battery management systems, and medical instrumentation.
It has a low power consumption of 0.33mA in active mode and 1.5μA in standby mode, making it ideal for battery-powered applications.
