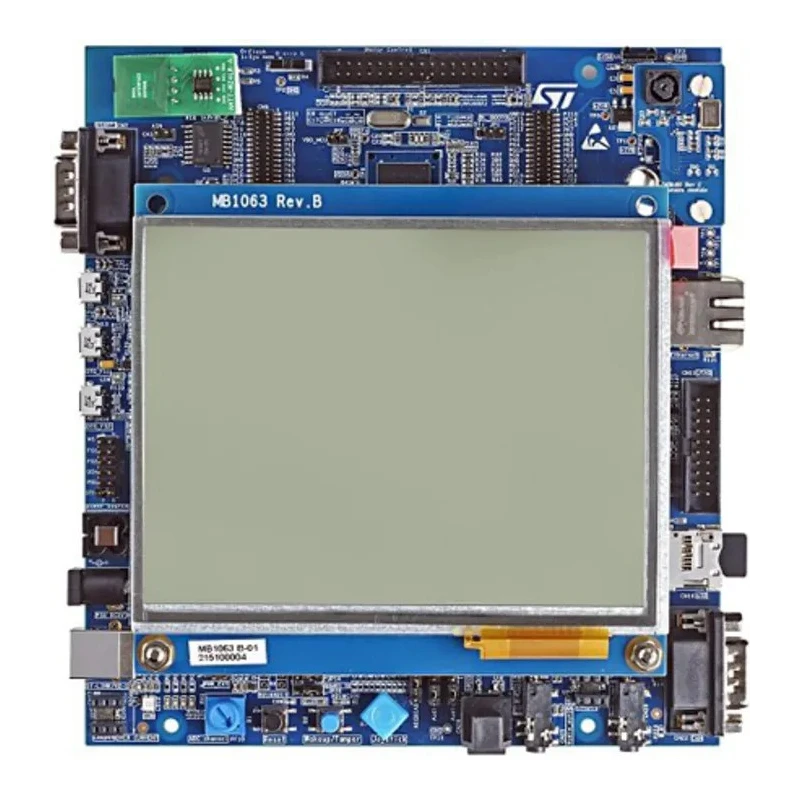

STMicroelectronics MCU Evaluation Board with STM32F756NG Microcontroller ARM Cortex-M7 Core STM32756G-EVAL2

STMicroelectronics STM32756G-EVAL2 MCU Evaluation Board is a comprehensive development platform designed for the STM32F756NGH6 microcontroller based on the ARM Cortex-M7 32-bit core. It integrates 1 Mbyte Flash memory and 320 Kbytes plus 4 Kbytes backup SRAM, providing high-speed operation at 216MHz clock frequency for demanding embedded applications.

The board supports six 5V power supply options including external connector and multiple USB interfaces ensuring versatile powering methods. It features extensive connectivity options such as four I2C interfaces, six SPI ports with multiplexed simplex I2S, four USARTs, two CAN buses, USB OTG High Speed and Full Speed connectors, Ethernet MAC, and SDMMC interface supporting microSD cards of 2 Gbytes or more.

With peripherals like stereo audio jack supporting headset with microphone, stereo digital microphone, RF-EEPROM with I2C interface, IrDA transceiver, RS-232 serial communication, and camera module interface with 8- to 14-bit digital camera support, the board enables rich multimedia and communication development.

Memory resources include 8M×32-bit SDRAM, 1M×16-bit SRAM, 8M×16-bit NOR Flash, and 512 Mbits QuadSPI NOR Flash. The 5.7 inch 640x480 pixel TFT colour LCD with capacitive touch screen and joystick with selector button enhance user interaction and control options.

The STM32F7 microcontroller on this board features ST's ART Accelerator™ with L1 cache achieving up to 1082 CoreMark / 462 DMIPS performance. The hardware and software debugging is facilitated by JTAG/SWD with ETM trace and an embedded ST-LINK/V2-1 programmer/debugger.

This evaluation board is ideal for industrial, laboratory, STEM education, and prototyping applications requiring high computational power and diverse peripheral support. It supports real-time clock with backup battery, CAN 2.0 A/B interface, potentiometer, motor control connector, and multiple user interface LEDs and buttons.

Equipped with ARM Cortex-M7 32-bit core for high performance. Includes 1 Mbyte Flash and 320 Kbytes plus 4 Kbytes backup SRAM memory. Provides multiple interfaces including I2C, SPI, USART, CAN, USB OTG HS and FS, Ethernet MAC, and SDMMC.

Features a 5.7 inch 640x480 TFT color LCD with capacitive touch panel and joystick control. Supports JTAG debugging and ST-LINK/V2-1 embedded programmer. Offers versatile power supply options including USB and external connectors.

Includes peripherals such as stereo audio jack, digital microphone, camera interface, and CAN connectivity. Equipped with 8Mx32-bit SDRAM, 1Mx16-bit SRAM, 8Mx16-bit NOR Flash memory and 512 Mbits QuadSPI NOR Flash. Provides real-time-clock with backup battery and motor control connector.
