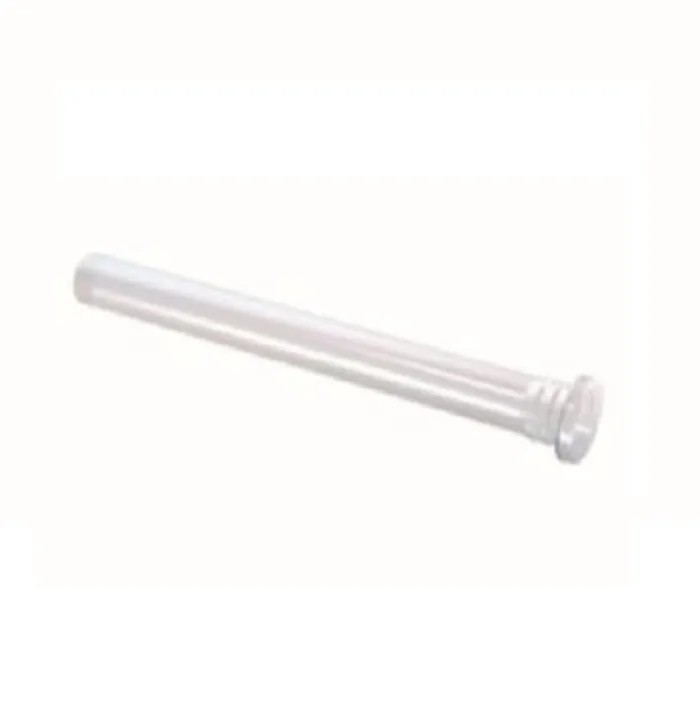

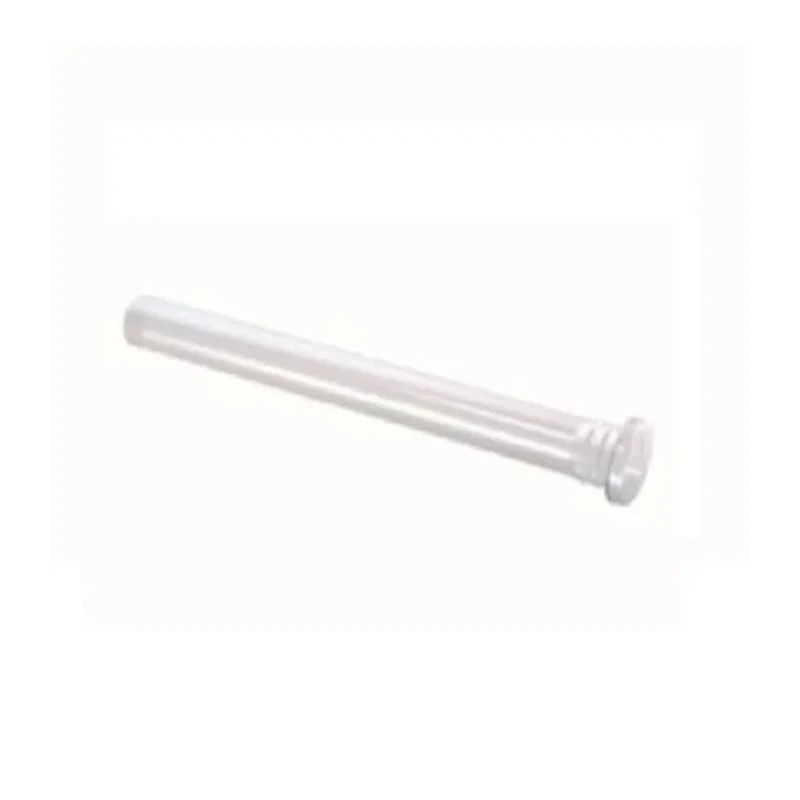

Mentor GmbH Panel Mount 1-Way Straight Rigid LED Light Pipe Clear Yellow 45.4mm 1293.1401

Mentor GmbH 1293.1401 Panel Mount 1-Way Straight Rigid LED Light Pipe is engineered for front panel mounting applications requiring precise light guidance with a length of 45.4mm. The device utilizes a clear PC UL94 plastic material ensuring robustness and flame retardance suitable for various demanding environments.

This rigid LED light pipe features a recessed shape and a diagonal 45° inject face designed to closely align with surface mounted LEDs, such as the TOPLED and CHIPLED series from OSRAM Opto Semiconductors, enhancing light output efficiency.

Its dimensions include a 4mm inside diameter and 5.2mm outside diameter, while the single-way channel ensures a focused light path. The product supports an ambient operating temperature range from -40°C to +85°C and offers IP68 waterproof protection, making it suitable for harsh industrial, medical instrumentation, security systems, communication devices, and industrial control panels.

The light pipe complies with RoHS environmental regulations, highlighting its adherence to toxic substance restrictions. The design includes a 1 x 1 configuration (one row by one column), optimized for panel-mounted LED applications requiring reliable and consistent illumination performance.

Its application versatility includes usage in medical devices, industrial control equipment, security safety components, and communication hardware, attributed to its optical clarity and rugged physical construction.

The light pipe offers a straight rigid design ensuring stable light transmission. Constructed from clear PC UL94 for flame retardance and durability. Designed for compatibility with SMD LEDs, particularly OSRAM Opto Semiconductors’ TOPLED and CHIPLED series.

IP68 rated for waterproof protection suitable for harsh conditions. Operating temperature range from -40°C to +85°C suits broad industrial environments. Recessed light pipe shape with clear lens ensures precise light guidance.

Compact dimensions with 4mm inside and 5.2mm outside diameters provide easy panel integration. RoHS compliant ensuring environmentally safe manufacturing and usage.

This LED Light Pipe enriches LED lighting assemblies by delivering targeted and reliable light transmission for panel-mounted devices. It constitutes a dependable component in industrial, medical, security, and communication sectors, enhancing device visibility and operational safety.
