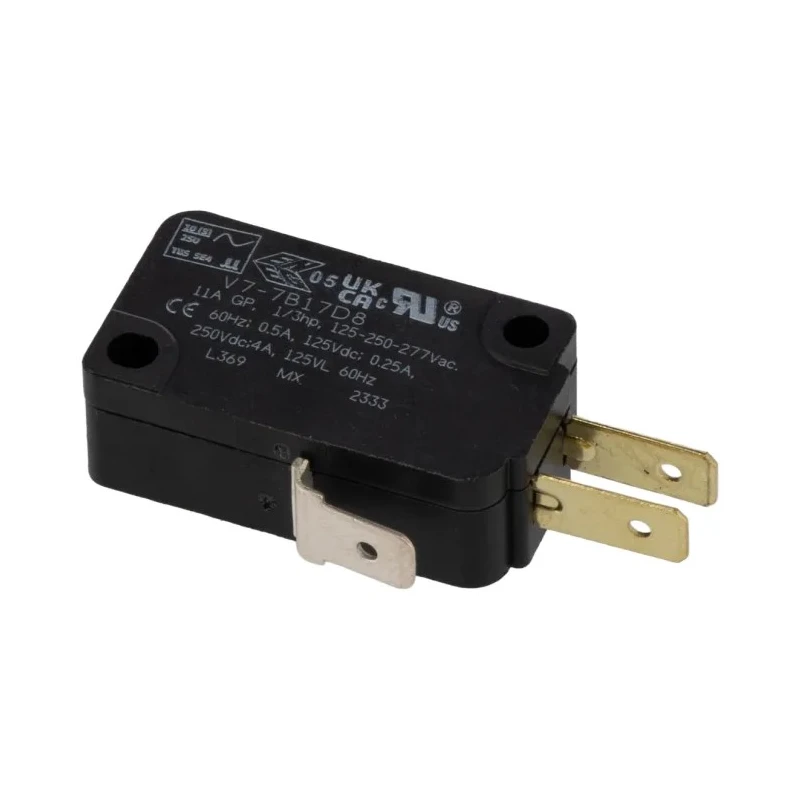

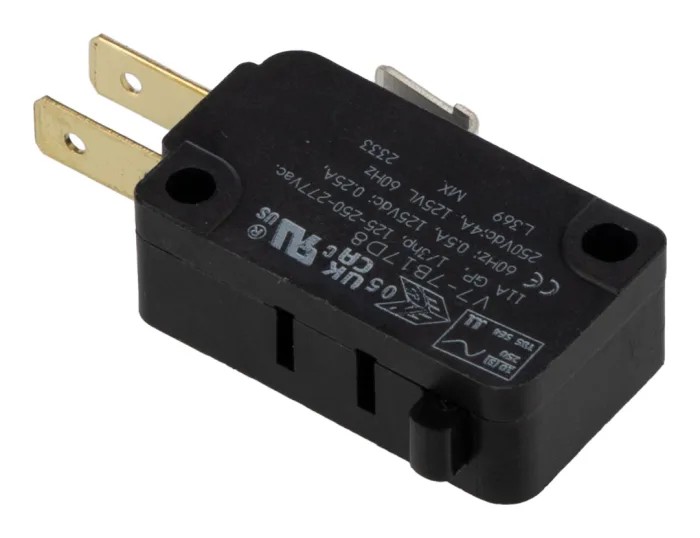

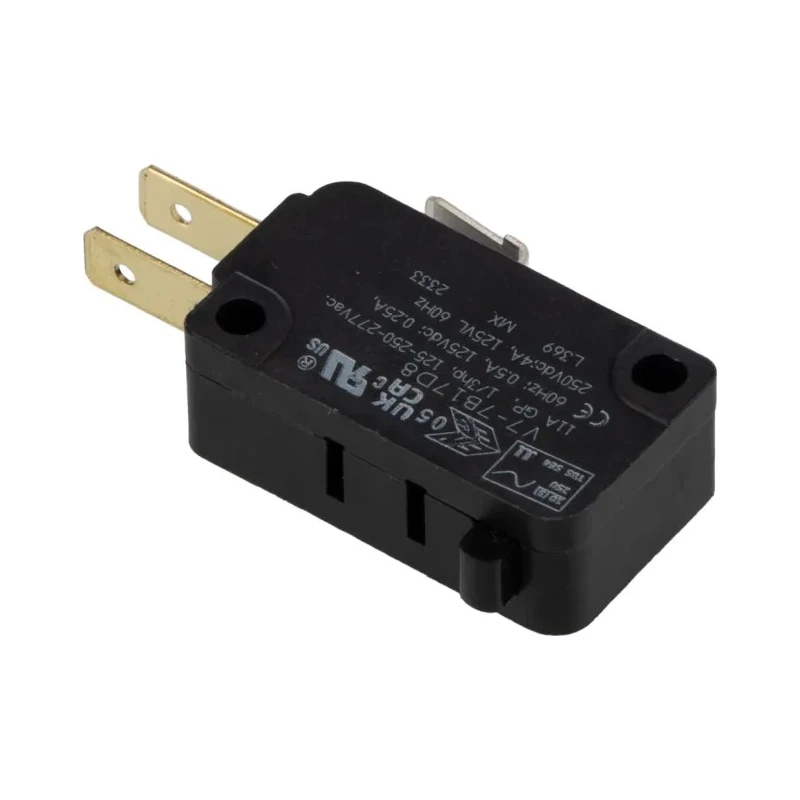

Honeywell Technologies Pin Plunger Micro Switch Quick Connect Terminal 11A 125V SPDT V7-7B17D8

Honeywell Technologies V7-7B17D8 Pin Plunger Micro Switch is a compact electromechanical control device designed for precise mechanical movement detection and reliable switching actions in industrial and equipment environments. This miniature micro switch features a pin plunger actuator that provides accurate actuation with minimal deflection, making it suitable for integration into applications requiring sensitive and dependable switch responses.

The device supports a single-pole double-throw (SPDT) contact configuration, enabling versatile circuit control scenarios. It is capable of handling a high switch contact current of 11A at 125V AC, suitable for mains-level electrical loads. Quick connect terminals provide easy and rapid wiring, facilitating maintenance and installation processes.

Manufactured with a housing of glass filled polycyclohexylenedimethylene terephthalate, this micro switch ensures excellent electrical insulation and resistance to typical industrial environments. The switch operates effectively within a thermal range from -40°C to 85°C, accommodating varied temperature conditions from cold storage to warm plant settings.

With a mechanical life expectancy of 10 million cycles, this micro switch offers extended service life and reduced replacement frequencies. It complies with important international standards and approvals including ENEC, RoHS, UL, and CSA, ensuring high-quality manufacturing practices and safety compliance.

Typical applications include limit detection in automated machinery, position sensing in control panels and actuators, safety interlocks on industrial equipment, and as user-interface switches in heavy-duty devices. Its robust construction and certified standards make it a reliable choice for industrial, manufacturing, and automation use cases.

Pin plunger actuator delivers precise actuation with minimal deflection. Single-pole changeover contact supports versatile circuit control. Rated for 125V AC operation suitable for mains-level switching. Quick connect terminals permit rapid wiring and maintenance.

High switching capacity of 11A enables heavier load handling. Mechanical endurance of 10 million cycles reduces replacement frequency. Operating temperature range from -40°C up to 85°C allows use in varied environments. Complies with ENEC, RoHS, UL, and CSA standards for safety and quality.

Compact design suitable for industrial, manufacturing, and automation applications. Explore more in the Micro Switch category for industrial-grade switches and components on EnvMart.
