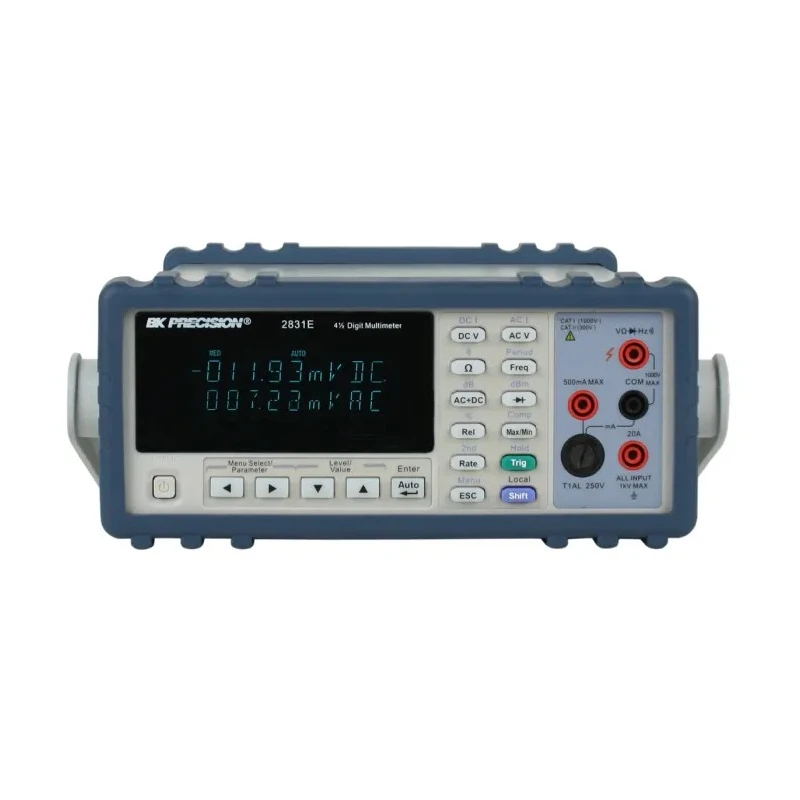

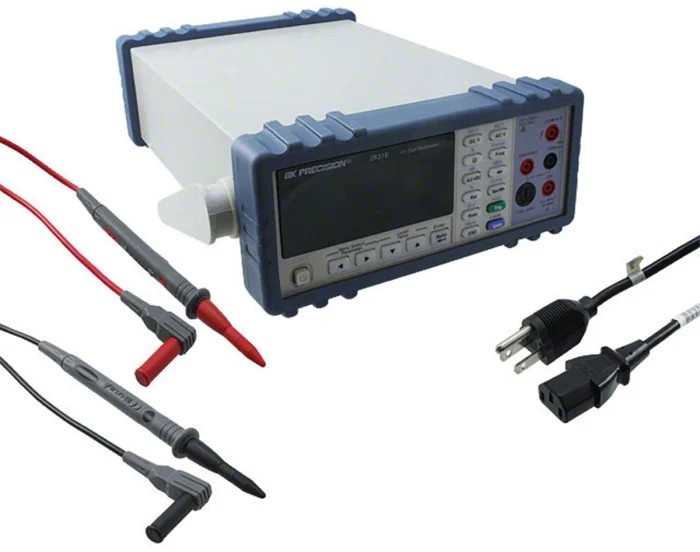

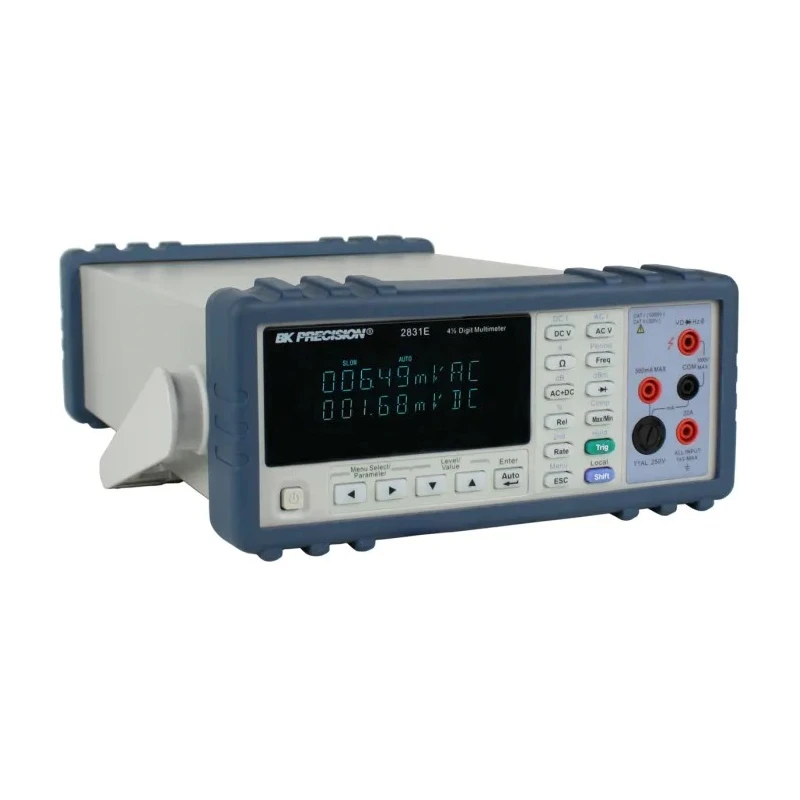

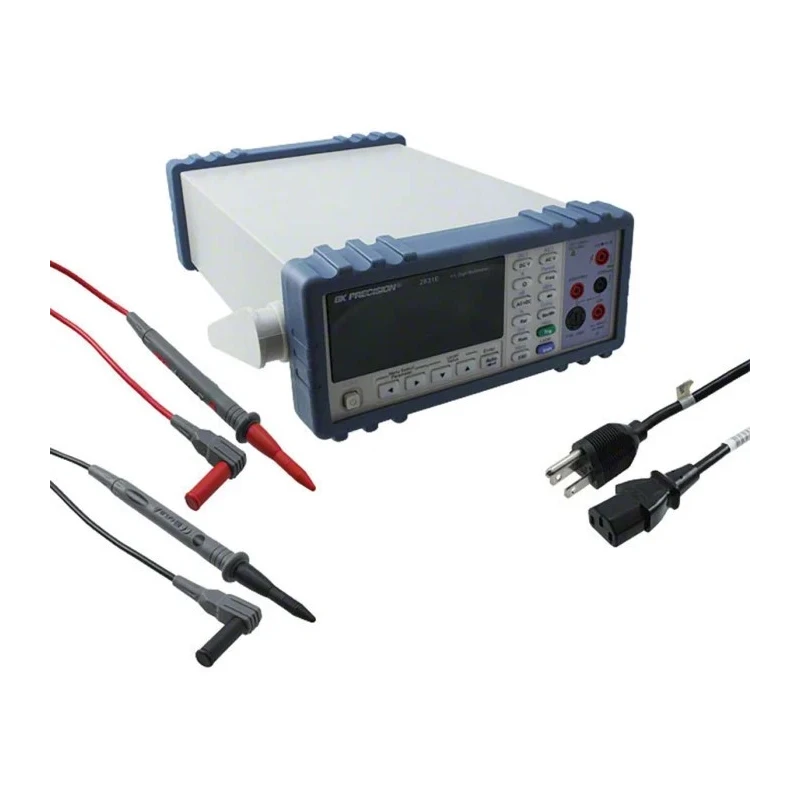

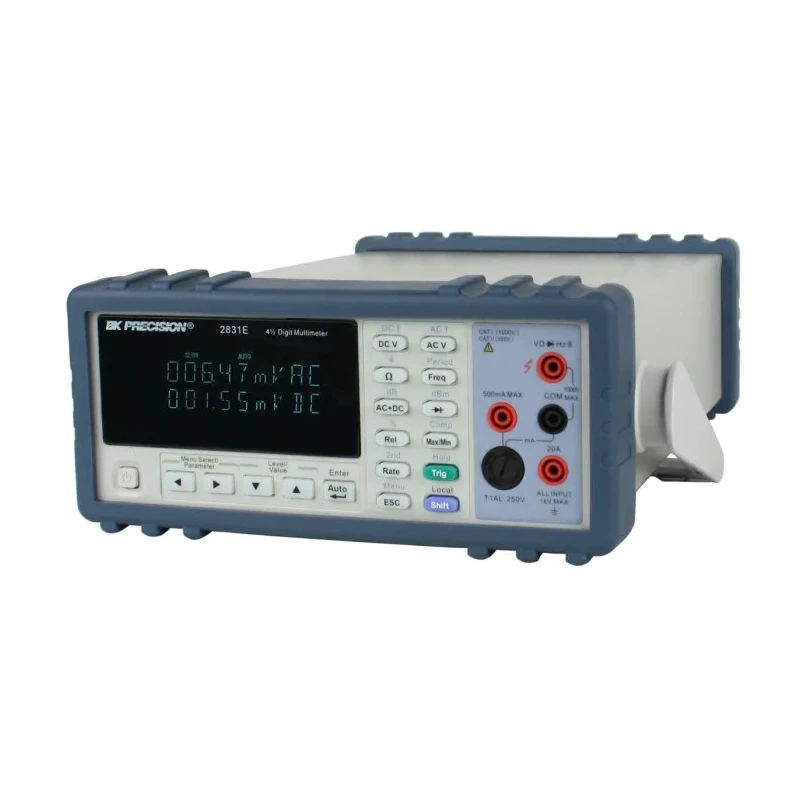

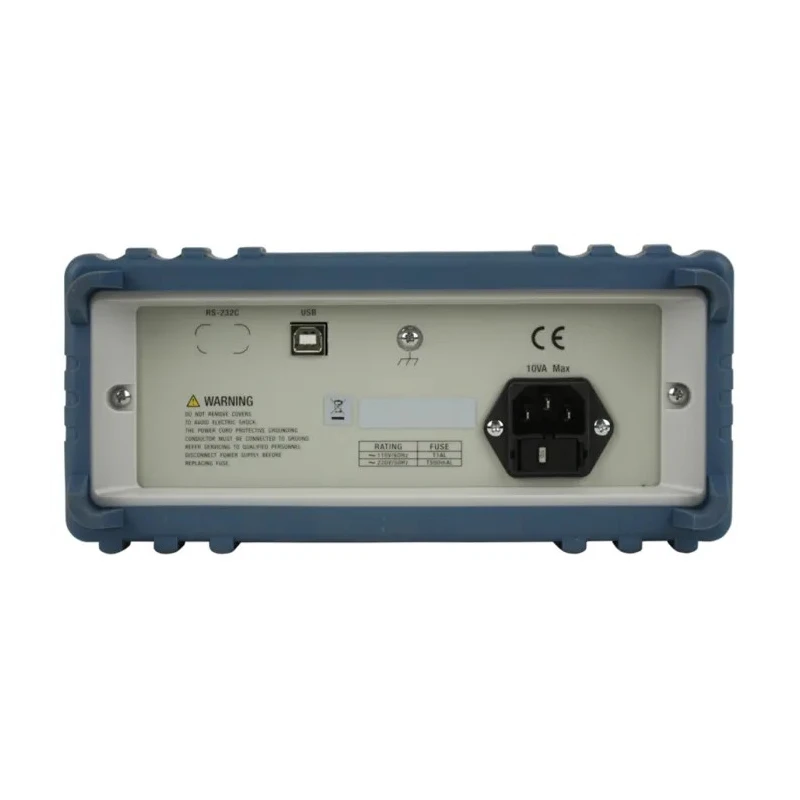

BK Precision Bench Digital Multimeter True RMS 750V AC, 20A AC/DC, 1kV DC BK2831E

BK Precision BK2831E Bench Digital Multimeter True RMS is a reliable and versatile 4 1/2 digit bench-top instrument designed for industrial, laboratory, and field applications requiring high accuracy electrical testing. It accurately measures AC and DC voltage, current, resistance, and frequency with maximum measurements of 750V AC, 20A AC/DC, and 1kV DC. The True RMS capability ensures correct readings of non-sinusoidal waveforms commonly encountered in advanced electronics and manufacturing diagnostics.

The dual LED display offers up to 20,000 counts resolution, providing crisp and detailed visualization even in dim environments. It supports high-speed data acquisition with up to 25 readings per second, selectable by the user to optimize measurement precision and response time. This multimeter is ideal for education, product development, service repair, manufacturing quality control, and routine electrical maintenance tasks.

The unit includes useful features such as limit mode pass/fail testing and built-in mathematical functions including relative measurement, max/min capture, dBm, dB, and percentage calculations, facilitating complex analysis without additional equipment. With IEC 61010 certification and CAT I and CAT II safety ratings, the BK2831E ensures safe operation in both protected low energy installations and fixed power supplies typical in household and industrial environments.

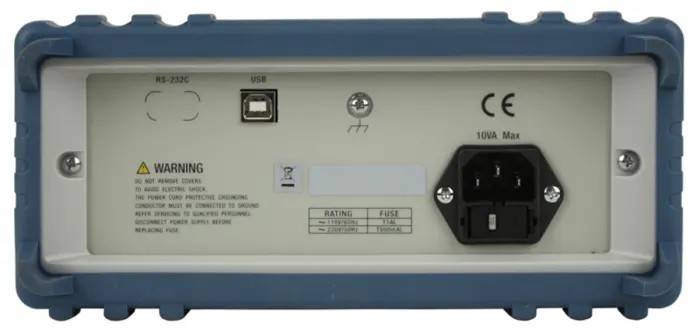

Integrated USB Virtual COM interface simplifies data logging and remote control operations, supporting modern connectivity requirements. The compact footprint of 225mm length, 335mm width, and 100mm height with a weight of 2.5kg makes it convenient to deploy in benchtop or workstation setups.

4 1/2 digit dual LED display with 20,000 counts resolution. True RMS measurement capability for accurate AC signal assessment. Maximum AC current: 20A; Maximum DC current: 20A; Maximum AC voltage: 750V; Maximum DC voltage: 1kV.

Measurement accuracy: DC current ±0.3%; AC current ±2%; DC voltage ±0.04%; resistance ±0.3% reading. Frequency measurement capability up to 1MHz. Safety category CAT I 1000V and CAT II 300V compliant. USB Virtual COM port for communication and data transfer.

Suitable for industrial, manufacturing, education, laboratory, and repair applications.

This BK Precision bench Multimeter delivers robust performance and versatile functionality sought by professionals across electrical and electronic test environments. Its comprehensive measurement range, speed, precision, and compliance with safety standards make it a dependable instrument for ensuring electrical system quality and performance. Explore our extensive range of industrial instruments at EnvMart for complementary test and measurement solutions.
