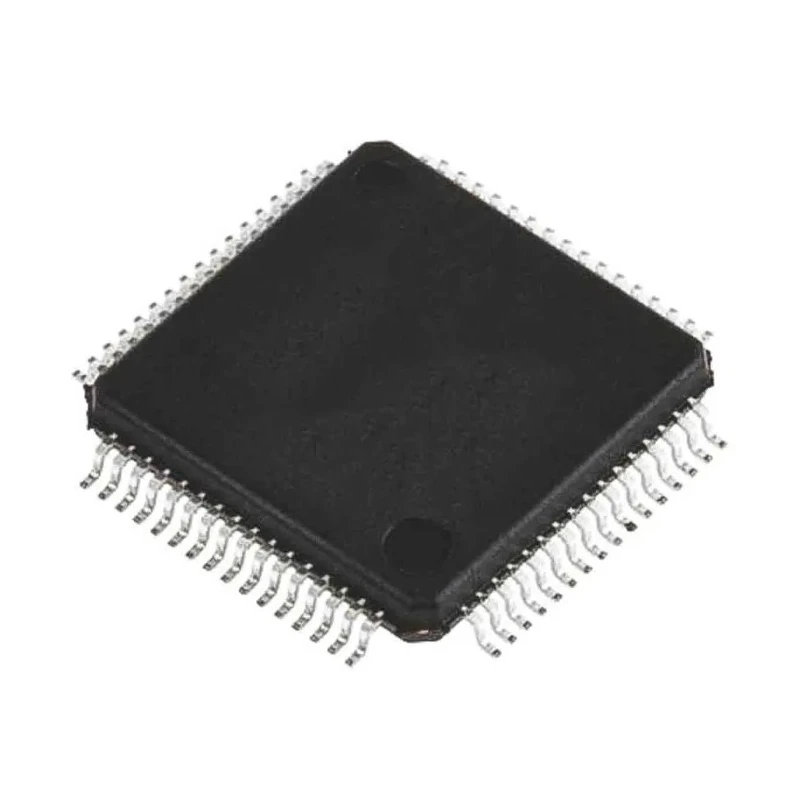

STMicroelectronics 32bit ARM Cortex-M0 48 MHz 128kB FLASH 64-Pin LQFP Microcontroller STM32F070RBT6TR

STMicroelectronics STM32F070RBT6TR is a state-of-the-art 32-bit ARM Cortex-M0 based microcontroller designed for efficient embedded system applications. Operating at a maximum clock frequency of 48 MHz, it features 128kB of FLASH memory and 16kB of SRAM, supporting fast and reliable processing.

This microcontroller is housed in a 64-pin LQFP surface mount package measuring approximately 10 mm by 10 mm by 1.45 mm, allowing compact and versatile PCB design integration. Its supply voltage range of 2.4 V to 3.6 V ensures compatibility with various power conditions.

The device incorporates up to 51 general-purpose input/output pins with 5V tolerance, and it includes 3 timers, an advanced 16-bit timer for sophisticated PWM control, and up to seven additional 16-bit timers making it suitable for timing-critical applications. The embedded ADC features 18 channels of 12-bit resolution providing accurate analog-to-digital conversion with a range of 0 to 3.6 V.

Communication interfaces integrated into the STM32F070RBT6TR include two I2C interfaces, two SPI ports supporting high data rates, and up to four USARTs with features such as synchronous SPI, modem control, and auto baud rate detection, ensuring versatile connectivity options.

Additional features such as digital and analog power management, a calendar RTC with alarm and periodic wakeup from low power modes, and a range of low power operation modes (Sleep, Stop, Standby) make it well-suited for battery-powered and energy-efficient industrial, laboratory, and consumer applications.

Operating reliably within a temperature range from -40°C to +85°C, this Microcontroller meets stringent industrial standards, though not certified for automotive applications. Its power dissipation rating of 455 mW supports sustained operation under demanding conditions.

ARM Cortex-M0 based 32-bit core with 48 MHz frequency. 128kB FLASH and 16kB SRAM memory. 64-pin LQFP surface mount packaging. Multi-interface connectivity including USB 2.0 full-speed. Rich timer and ADC features for embedded control.

Wide operating voltage and temperature ranges. Low power modes for energy-efficient operation. Suitable for industrial and consumer electronic designs. Explore the STM32F0 family and more semiconductor products for advanced embedded system designs here on EnvMart.
