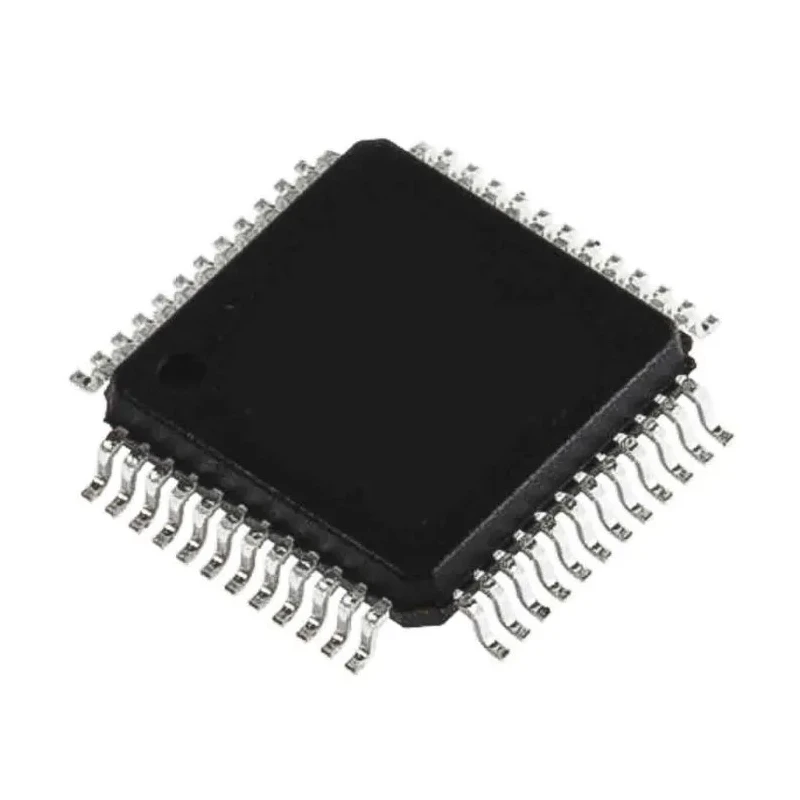

STMicroelectronics 32 bit ARM Cortex M0 Microcontroller 48 MHz 32kB FLASH 48-Pin LQFP STM32F030C6T6TR

STMicroelectronics STM32F030C6T6TR is a new 32 bit ARM Cortex M0 series microcontroller operating at a maximum clock frequency of 48 MHz. It includes 32kB of Flash memory and 4kB of SRAM with hardware parity support, packaged in a 48-pin LQFP form factor measuring 7.2 mm by 7.2 mm by 1.45 mm. The device operates over a supply voltage range of 2.4 V to 3.6 V, with separate analog supply VDDA managed between VDD and 3.6 V. It supports digital and analog I/O voltages compatible with industrial requirements.

The microcontroller features two timers and an advanced 16-bit timer capable of six-channel PWM outputs, suitable for precise timing and motor control applications. It includes twelve 12-bit ADC channels capable of 1.0 µs conversion, supporting analog input ranges from 0 to 3.6 V, with separate analog supply capabilities. Low power modes such as Sleep, Stop, and Standby enable efficient power management for battery-operated or energy-sensitive applications. An integrated 5-channel DMA controller optimizes data handling efficiency.

Communication interfaces include up to two I2C buses, six USARTs with support for synchronous SPI and modem control, one USART with auto baud rate detection, and up to two SPI ports supporting 18 Mbit/s data rate with programmable bit frames. The microcontroller includes a Serial Wire Debug interface facilitating development and debugging.

Additional features include a real-time calendar RTC with alarm and periodic wakeup from Stop or Standby modes, reset and power management units, and a CRC calculation unit to enhance data integrity. It complies with FBI standards and operates across a temperature range of -40°C to 85°C, suitable for diverse industrial, embedded, and laboratory control systems.

Operates at 48 MHz clock using Arm® 32-bit Cortex®-M0 CPU architecture. 32kB Flash memory with FLASH program memory type and 4kB SRAM with HW parity. 48-pin LQFP surface-mount package, dimensions 7.2×7.2×1.45 mm. Wide supply voltage range from 2.4 V to 3.6 V with separate analog supply support.

12-ch 12-bit ADC with conversion range 0 to 3.6 V and 1.0 µs conversion speed. Multiple timers including one 16-bit advanced-control timer for PWM output and system watchdogs. Supports communication via I2C, USART, and SPI interfaces with various advanced control options.

Low power consumption with Sleep, Stop, and Standby modes for energy-efficient designs. Industrial-grade operating temperature range -40°C to 85°C. FBI standard approved for reliable performance.

This microcontroller is well suited for industrial automation, embedded control systems, instrumentation, and consumer electronics applications. Its compact LQFP packaging and advanced peripheral integration make it ideal for efficient PCB layouts and high-performance system designs. For exploring more microcontroller options and technical specifications, visit the Microcontroller category at EnvMart.
