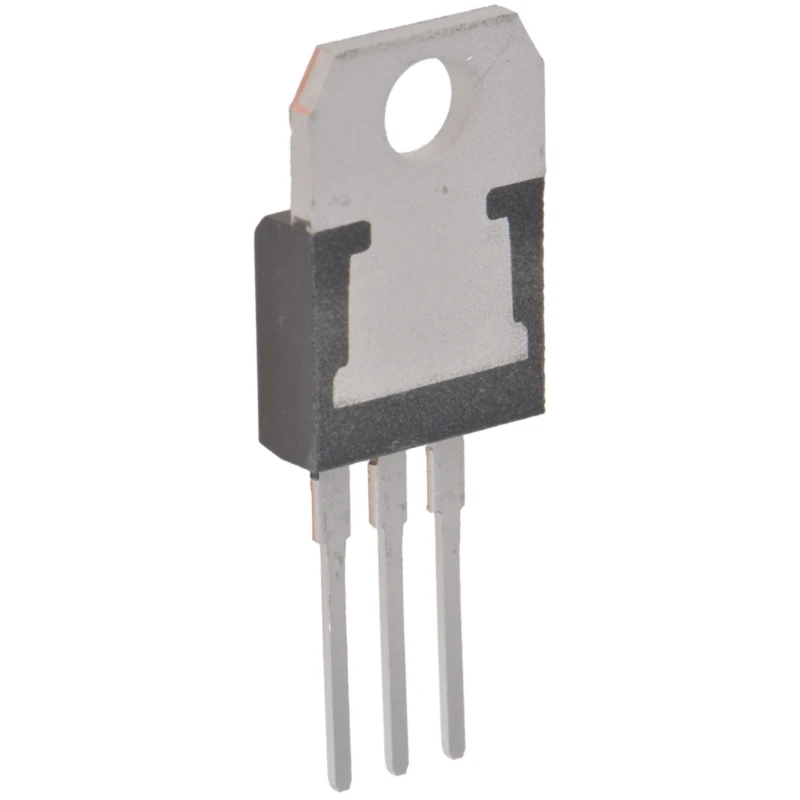

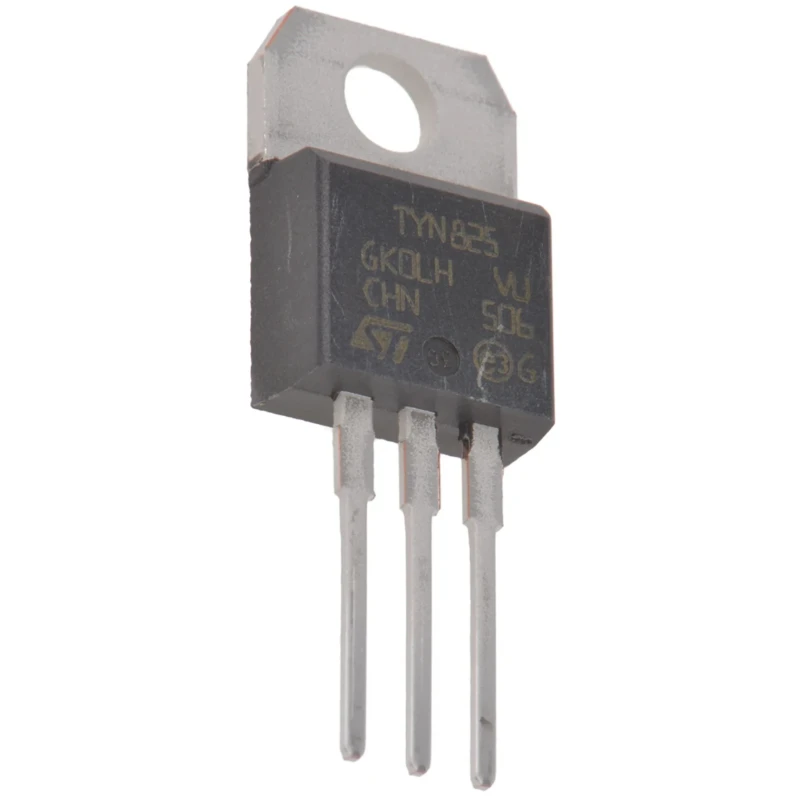

STMicroelectronics Thyristor SCR 800 V 16 A 40 mA TO-220 Through Hole TYN825RG
Specifications
| Country of Origin | China |
|---|---|
| Brand | STMicroelectronics |
| Model | TYN825RG |
| Mount Type | Through Hole |
| Series | 25 A SCRs |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 16A |
| Thyristor Type | SCR |
| Repetitive Peak Reverse Voltage VDRM | 800V |
| Surge Current Rating | 314A |
| Maximum Gate Trigger Current Igt | 40mA |
| Maximum Holding Current Ih | 50mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Repetitive Peak Off-State Current | 5μA |
Key Features
- The TYN825RG is a silicon controlled rectifier designed for power switching and control.
- Features a TO-220 package type suitable for through hole mounting applications.
- Has a surge current rating of 314 A ensuring robust transient handling.
- Operates within a temperature range from -40°C to 125°C for versatile environmental conditions.
- Includes a maximum holding current of 50 mA and a gate trigger voltage of 1.3 V.
- Designed as a 3-pin device for easy integration in electronic circuits.
- Ideal for use in industrial, power control, and switching applications requiring reliable SCR performance.
Product Description
STMicroelectronics TYN825RG is a general-purpose Thyristor (Silicon Controlled Rectifier) rated at 800 V repetitive peak reverse voltage and a 16 A rated average on-state current. This SCR is housed in a TO-220 package designed for through hole mounting, providing efficient heat dissipation and easy integration in power electronics assemblies.
With a surge current rating of 314 A, the TYN825RG can handle high transient loads, making it suitable for power switching and control applications across industrial automation, motor control, and power management systems. It has a maximum gate trigger current of 40 mA and a gate trigger voltage of 1.3 V for precise triggering control.
The device operates reliably over a wide temperature range from -40°C to 125°C, allowing it to perform in demanding environmental conditions. It has a maximum holding current of 50 mA and a repetitive peak off-state current of only 5 μA, signifying excellent off-state leakage characteristics.
This 3-pin Thyristor is ideal for use in various power electronics applications including AC/DC power conversion, industrial load switching, and controlled rectification. Its robust electrical characteristics comply with typical power semiconductor standards, though specific certifications are not listed.
The TO-220 package form factor ensures compatibility with standard mounting methods and offers reliable thermal performance. Manufactured in China, maintaining high quality and compliance with industry standards. Explore EnvMart’s extensive range of power semiconductors and discrete components to find compatible parts and solutions tailored to your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TYN825RG has a maximum repetitive peak reverse voltage of 800 V.
This model has a rated average on-state current of 16 A.
The surge current rating for the TYN825RG is 314 A, allowing it to handle high transient loads effectively.
It is housed in a TO-220 package type, which is suitable for through hole mounting applications.
This thyristor operates within a temperature range from -40°C to 125°C.
The maximum gate trigger voltage for the TYN825RG is 1.3 V.
The maximum holding current for this model is 50 mA.
This thyristor features a 3-pin configuration for easy integration into electronic circuits.
The maximum gate trigger current for the TYN825RG is 40 mA.
The repetitive peak off-state current for this model is only 5 μA, indicating excellent off-state leakage characteristics.
This SCR is suitable for power switching and control applications, including industrial automation and motor control.
The TYN825RG is manufactured in China.
