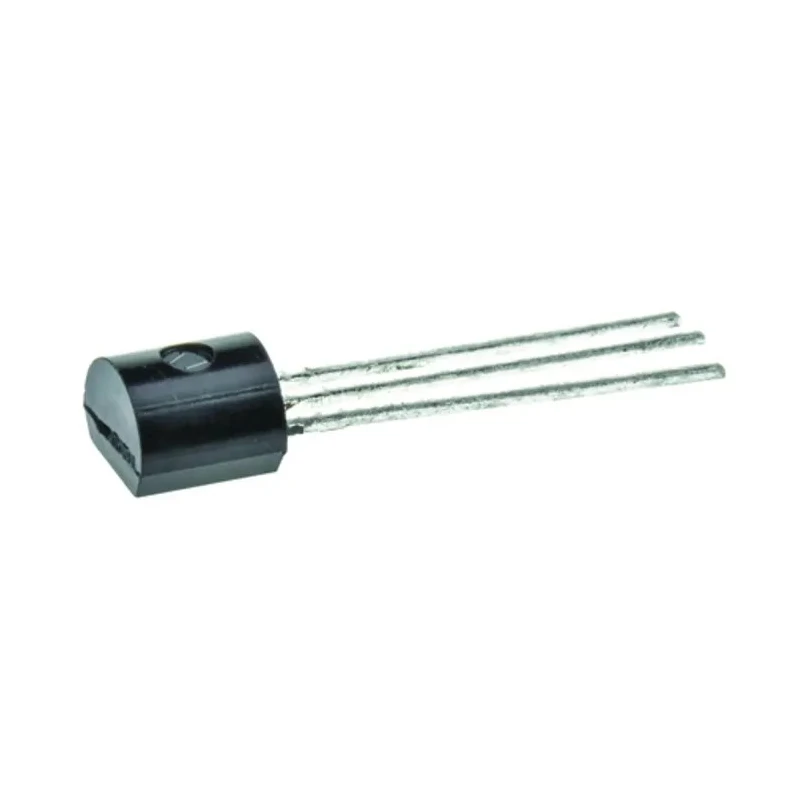

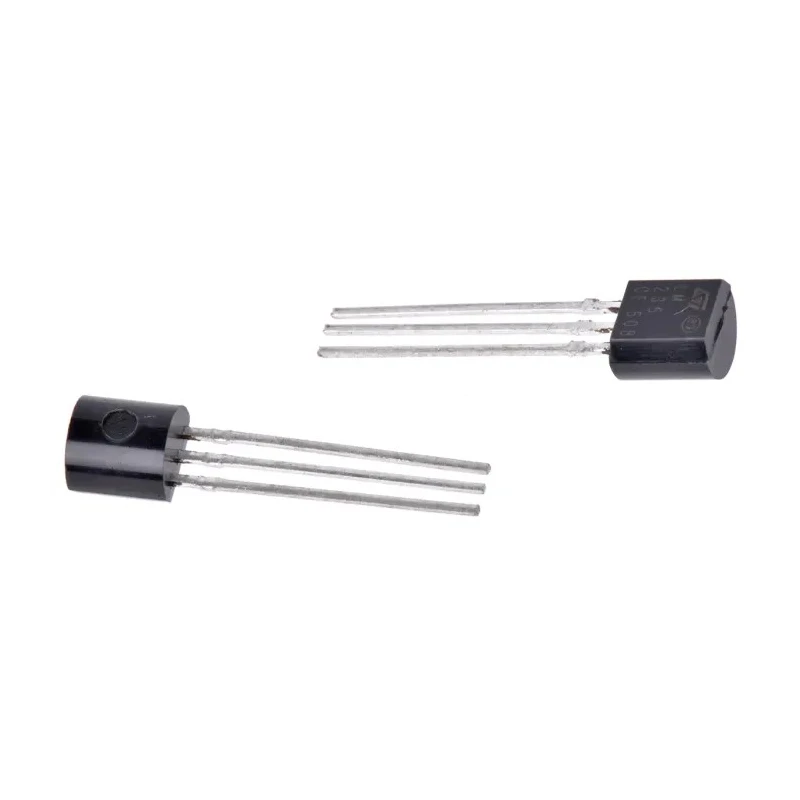

STMicroelectronics Series Voltage Output Temperature Sensor, Through Hole Mount, Analogue, ±1°C Accuracy, 3-Pin MCP9501PT
Specifications
| Country of Origin | China |
|---|---|
| Accuracy | ±1°C |
| Brand | STMicroelectronics |
| Height | 5.33mm |
| Length | 5mm |
| Model | MCP9501PT |
| Width | 4.2mm |
| Mount Type | Through Hole |
| Output type | Voltage |
| Series | MCP9501PT |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | Analogue |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Supply Voltage | 40V |
| Minimum Supply Voltage | 5V |
| Sensor Gain | 10mV/°C |
Key Features
- Operating temperature range from -40°C to 125°C.
- Compact TO-92 package measuring 5×4.2×5.33 mm.
- 3-pin configuration for easy through-hole PCB mounting.
- Sensor gain of 10mV/°C ensures precise temperature measurements.
- Wide supply voltage range from 5V to 40V.
- RoHS compliant to ensure environmental safety.
- Suitable for industrial, laboratory, and HVAC temperature monitoring.
Product Description
STMicroelectronics MCP9501PT Series voltage output temperature sensor delivers precise analogue temperature sensing with an accuracy of ±1°C. Featuring a compact TO-92 package with dimensions 5 mm length, 4.2 mm width, and 5.33 mm height, this 3-pin device is designed for through-hole mounting on printed circuit boards.
The sensor operates reliably within a temperature range from -40°C to 125°C, making it suitable for diverse industrial and laboratory applications including HVAC systems, environmental monitoring, and embedded temperature measurement solutions.
Its voltage output is linearly proportional to absolute temperature, with a sensor gain of 10mV per degree Celsius, facilitating simple analogue interfacing without complex conversion circuitry.
The wide supply voltage input range between 5V and 40V enhances flexibility for use in various power environments while maintaining robust performance. Additionally, it meets RoHS standards, ensuring environmentally friendly manufacturing compliance.
Voltage output type suitable for analogue interfacing. Operating temperature range from -40°C to 125°C. Compact TO-92 package measuring 5×4.2×5.33 mm. 3-pin through-hole mounting configuration. Sensor gain of 10 mV/°C for precise temperature measurement.
Wide supply voltage range from 5 V to 40 V for versatile application. RoHS compliant for environmental safety. Suitable for industrial, laboratory, HVAC, and environmental temperature monitoring. Manufactured in China by STMicroelectronics.
This STMicroelectronics MCP9501PT temperature sensor series is ideal for engineers and developers requiring reliable temperature sensing in electronic designs. Browse our Electronics & Electricals Sensors category for more Temperature Sensor options from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP9501PT temperature sensor operates within a temperature range from -40°C to 125°C.
This model has an accuracy of ±1°C.
The sensor gain is 10mV per degree Celsius, allowing for precise temperature measurements.
It has a wide supply voltage range from 5V to 40V, making it versatile for various applications.
This temperature sensor provides a voltage output that is linearly proportional to absolute temperature.
The dimensions of the TO-92 package are 5 mm in length, 4.2 mm in width, and 5.33 mm in height.
This model features a 3-pin configuration for easy through-hole PCB mounting.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
It is suitable for industrial, laboratory, HVAC, and environmental temperature monitoring applications.
The MCP9501PT is designed for through-hole mounting on printed circuit boards.
The interface type for this temperature sensor is analogue, facilitating simple interfacing without complex circuitry.
This temperature sensor is manufactured in China by STMicroelectronics.
