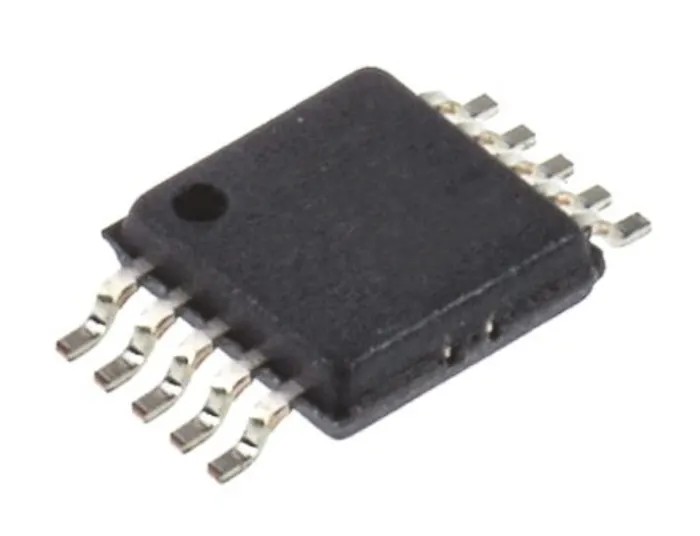

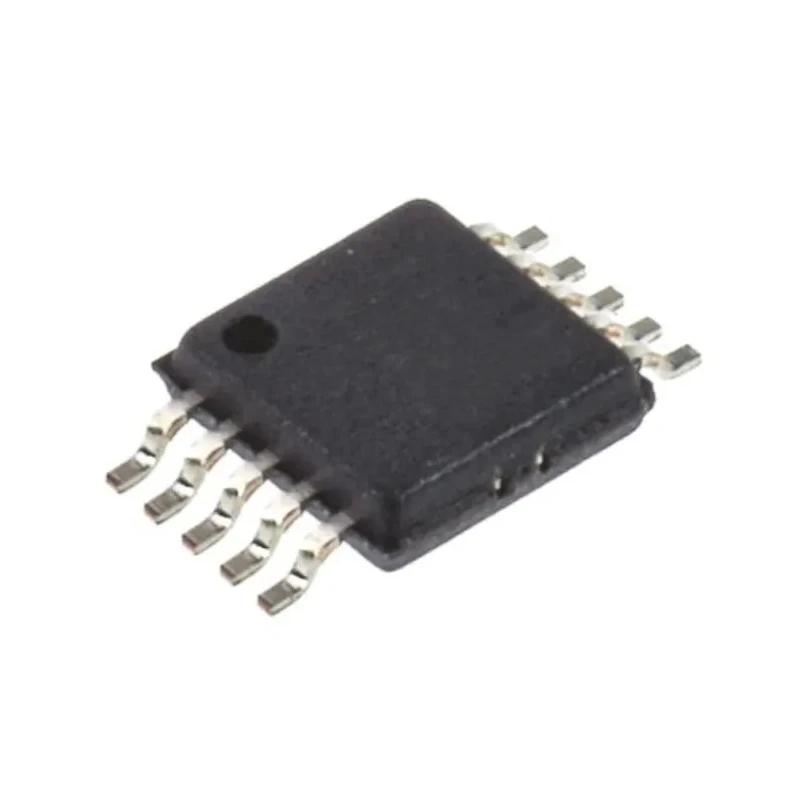

Maxim Integrated Operational Amplifier, 3 MHz GBP, 10-Pin μMAX Package, Dual Channel, 2.4-6 V MAX4253EUB+

Free Delivery in India | Lowest Global Shipping Charges

Maxim Integrated Operational Amplifier, 3 MHz GBP, 10-Pin μMAX Package, Dual Channel, 2.4-6 V MAX4253EUB+

Name: Maxim Integrated Operational Amplifier, 3 MHz GBP, 10-Pin μMAX Package, Dual Channel, 2.4-6 V MAX4253EUB+
Brand: Maxim Integrated
SKU: 263549
Price: 20.22 USD
Availability: InStock



Category Operational Amplifier Brand Maxim Integrated Condition New

Specifications

Country of Origin	India
Brand	Maxim Integrated
Height	0.95mm
Length	3.05mm
Model	MAX4253EUB+
Width	3.05mm
Mount Type	Surface
Output Current	68mA
Industrial	Process Measurement and Control
Maximum Operating Temperature	85°C
Package Type	μMAX
Displays	Industrial, Front Panel, and Instrumentation
Minimum Operating Temperature	-40°C
Number Of Channels	2
Pin Count	10
Maximum Supply Voltage	6V
Minimum Supply Voltage	2.4V
GBP - Gain Bandwidth Product	3MHz
Input Bias Current	1500 pA
Vos - Input Offset Voltage	±1.85 mV
Slew Rate	2.1V/μs
Input Offset Current	100 pA
Low distortion	0.0002% THD (1kΩ load)

Key Features

Surface mount type designed for space-saving applications.
Operates from 2.4 V to 6 V supply with low quiescent current.
Low distortion of 0.0002% THD at 1 kΩ load.
Input offset voltage of ±1.85 mV and input bias current of 1500 pA.
Output current capability up to 68 mA with slew rate of 2.1 V/μs.
Wide operating temperature range from -40°C to 85°C.
Includes low-power shutdown mode reducing supply current to 0.5 μA.
Ideal for industrial, medical instrumentation, and communication applications.

Product Description

Maxim Integrated's MAX4253EUB+ is a dual-channel operational amplifier featuring a 3 MHz gain bandwidth product within a compact 10-pin μMAX surface mount package. It supports single-supply operation from 2.4 V to 6 V with a low quiescent supply current of 400 μA per amplifier, making it suitable for battery-powered and space-constrained applications.

The device exhibits excellent DC performance with a low input offset voltage of ±1.85 mV and input bias currents around 1500 pA. It delivers a high slew rate of 2.1 V/μs and can drive output currents up to 68 mA. Low distortion performance of 0.0002% total harmonic distortion at 1 kΩ load ensures signal fidelity for demanding analog circuits.

This operational amplifier operates reliably over a wide temperature range from -40°C to 85°C, fulfilling industrial and automotive requirements; however, it does not hold any automotive standard certification.

The MAX4253EUB+ features low-power shutdown mode that reduces supply current to an ultra-low 0.5 μA and places outputs in a high-impedance state, enabling efficient power management in portable devices.

Additional technical strengths include input common-mode voltage range that includes ground, rail-to-rail output swing within 8 mV of rails with a 10 kΩ load, and capability to drive capacitive loads up to 400 pF without oscillations.

Space-saving 10-pin μMAX surface mount package supports compact PCB designs. Dual op-amps suitable for multi-channel applications requiring low power and high precision. Low distortion and excellent DC characteristics support high accuracy in sensor and instrumentation systems.

Robust operation in harsh industrial, medical instrumentation, and communications environments. Ideal for ADC buffer stages, process control, and programmable logic controllers.

The MAX4253EUB+ operational amplifier is well-suited for a broad range of demanding applications such as automated test equipment, medical devices, industrial measurement, and wireless communication systems.
