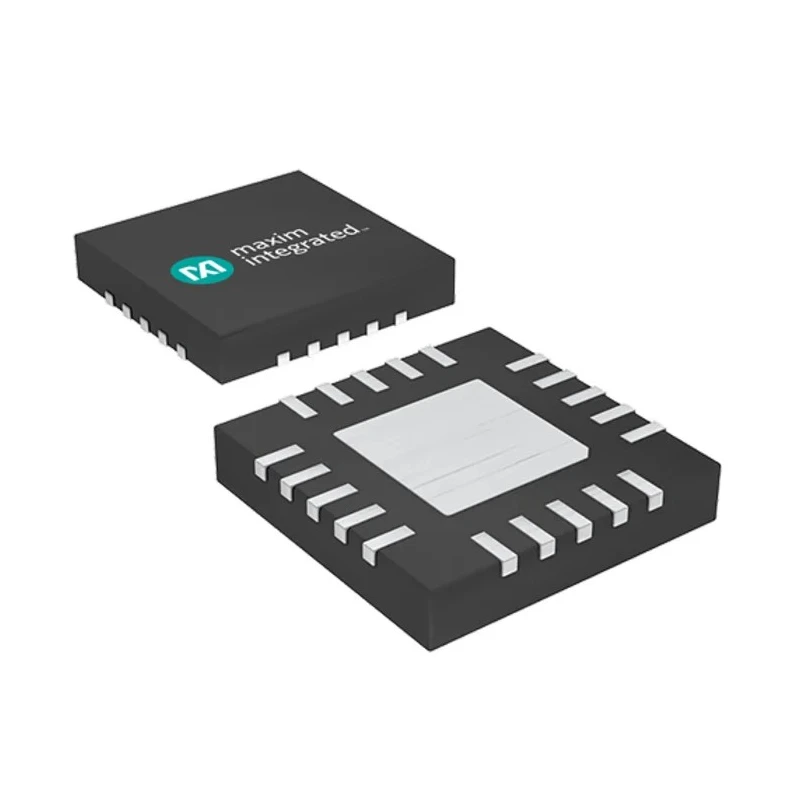

Maxim Integrated Resistor String DAC 12 bit 4-Channel Buffered Voltage Output Microwire DSP SPI QSPI Interface MAX5135GTG+
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Maxim Integrated |
| Length | 4mm |
| Model | MAX5135GTG+ |
| Width | 4mm |
| Mount Type | Surface |
| Settling Time | 5μs |
| Output type | Buffered Voltage |
| Series | MAX5134-MAX5137 |
| Maximum Operating Temperature | 105°C |
| Package Type | TQFN-EP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | Microwire, DSP, SPI, QSPI |
| Architecture | Resistor String |
| Standards/Approvals | RoHS-compliant |
| Pin Count | 24 |
| Maximum Supply Voltage | 5.25V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Features a 24-pin TQFN-EP surface mount package measuring 4mm by 4mm.
- Operates on a wide supply voltage range from 2.7V to 5.25V ensuring versatile application.
- Offers a fast settling time of 5 microseconds for efficient signal conversion.
- Values guaranteed monotonic performance and low gain error less than ±0.5% FS.
- Includes hardware-selectable zero/midscale DAC output on power-up or reset.
- Equipped with double-buffered input registers and asynchronous LDAC updating.
- Supports daisy chaining via active-low READY signal for multiple device control.
- Designed for industrial temperature range from -40°C to 105°C for robust operation.
Product Description
Maxim Integrated MAX5135GTG+ is a 12-bit resolution, 4-channel Digital to Analog Converter (DAC) featuring a resistor string architecture and buffered voltage output type integrated in a compact 24-pin TQFN-EP surface mount package measuring 4 mm by 4 mm.
This device supports versatile serial interfaces including Microwire, DSP, SPI, and QSPI, making it compatible with a variety of microcontrollers and digital signal processors.
Operating over a wide supply voltage range of 2.7V to 5.25V, it ensures stable performance with low gain error (less than ±0.5% full scale) and offset voltage (less than ±10mV). The DAC offers a fast settling time of 5 microseconds, suitable for high-speed applications.
The hardware-selectable zero or midscale DAC output on power-up or reset and double-buffered input registers deliver precise and flexible control. Active-low LDAC signal asynchronously updates DAC outputs simultaneously, and active-low READY facilitates daisy chaining of multiple devices.
Designed to operate within an industrial temperature range from -40°C to 105°C, this DAC meets robust reliability standards. Its low power shutdown current of 2μA max supports battery-powered and portable instrumentation.
24-pin TQFN-EP package with compact 4mm x 4mm footprint. 12-bit resolution with 4 independent channels. Wide supply voltage range of 2.7V to 5.25V. Fast 5 microsecond settling time. Buffered voltage output with guaranteed monotonicity.
Flexible Microwire, DSP, SPI, QSPI compatible serial interfaces. Low power consumption with 2μA shutdown current max. Operates from -40°C to 105°C for industrial use. RoHS compliant for environmental safety.
Applications include automatic test equipment, communication systems, programmable voltage and current sources, process control, servo loops, data acquisition, gain and offset adjustments, power amplifier control, and portable instrumentation.
This Maxim Integrated MAX5135GTG+ DAC is a key component for industrial, laboratory, communication, and instrumentation systems requiring reliable, flexible analog conversion capabilities.
Explore more semiconductor and data converter products for advanced electronic design and industrial applications on EnvMart.
Explore more products in our Digital to Analogue Converter category.
