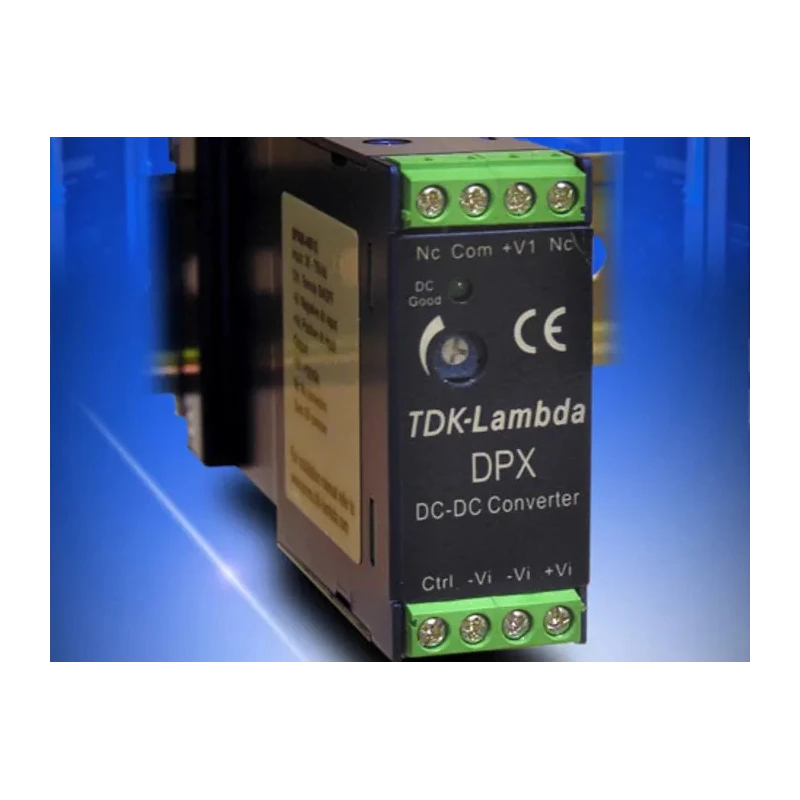

TDK-Lambda DPX DC/DC Converter, 5V DC Output, 12A, 24V DC Input, DIN Rail Mount, 60W, Operating Temp -40°C to DPX60-24S05
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TDK-Lambda DPX DC/DC Converter, 5V dc/ 12 A, 24V d |
| Brand | TDK-Lambda |
| Efficiency | 0.85% |
| Length | 125mm |
| Model | DPX60-24S05 |
| Depth | 125mm |
| Gross Weight | 182g |
| Width | 25.4mm |
| Mount Type | DIN Rail |
| Series | DPX |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 75mV |
| Maximum Output Power | 60W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | CE |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 12A |
| Isolation Voltage | 1.6kV |
Key Features
- Compact DIN rail mount design suitable for industrial and automation applications.
- Operates efficiently with 0.85% efficiency to optimize power consumption.
- Wide operating temperature range from -40°C to 85°C ensures reliable performance in harsh environments.
- Includes multiple built-in protections such as input fuse, reverse polarity, in-rush current, overload, and short circuit protection.
- Provides isolation voltage of 1600 VDC for enhanced safety and noise reduction.
- Output voltage adjustment range allows ±10% voltage fine-tuning.
- Single output with ripple and noise limited to 75mV for stable operation.
- Compact dimensions with 125mm length, 125mm depth, and 25.4mm width optimizing space utilization.
Product Description
TDK-Lambda DPX60-24S05 DC/DC Converter is a high-quality, DIN rail mountable power supply unit designed to convert 24V DC input into a regulated 5V DC output at 12A with a maximum output power of 60W. This robust converter is engineered for applications in industrial automation, electronics manufacturing, and embedded systems requiring isolated and stable power sources.
The DPX series features superior efficiency of 0.85%, ensuring minimal energy loss and heat generation. It supports a wide ambient temperature range from -40°C up to 85°C, making it suitable for harsh and demanding industrial environments.
Built-in protections include input fuse protection, reverse polarity protection, input in-rush current limitation, overload and short circuit protection, and overvoltage safeguard, enhancing device longevity and operational safety.
It includes a reliable snap-on mechanism compatible with DIN rail types TS-35/7.5 or TS-35/15 for easy installation and maintenance. The unit complies with CE standards and class B EMC performance, ensuring electromagnetic compatibility and reduced interference with sensitive electronics.
This converter provides excellent electrical isolation of 1600 VDC, protecting devices from electrical noise and faults. Its single output design delivers a low ripple and noise output voltage of 75mV, maintaining signal integrity for sensitive loads.
Compact DIN rail mount design suitable for industrial and automation applications. Operates efficiently with 0.85% efficiency to optimize power consumption. Wide operating temperature range from -40°C to 85°C ensures reliable performance in harsh environments.
Includes multiple built-in protections such as input fuse, reverse polarity, in-rush current, overload, and short circuit protection. Provides isolation voltage of 1600 VDC for enhanced safety and noise reduction. Output voltage adjustment range allows ±10% voltage fine-tuning.
Single output with ripple and noise limited to 75mV for stable operation. Compact dimensions with 125mm length, 125mm depth, and 25.4mm width optimizing space utilization. Certified with CE standard complying with industrial EMC requirements.
Designed and manufactured in Taiwan, Province Of China.
The TDK-Lambda DPX60-24S05 model is ideal for industrial automation, embedded systems power supply, instrumentation, telecom equipment, and other commercial electronics applications requiring reliable DC power conversion with DIN rail mounting convenience. It provides a balance of performance, reliability, and compact footprint facilitating integration into complex electrical control panels.
Explore extensive industrial-grade DC/DC Converters and related power components on EnvMart for your electronic and electrical project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of this model is 12A.
It supports a maximum input voltage of 24V DC.
This model has an efficiency rating of 0.85%.
The operating temperature range is from -40°C to 85°C.
The dimensions are 125mm in length, 125mm in depth, and 25.4mm in width.
It is designed for DIN rail mounting, compatible with types TS-35/7.5 or TS-35/15.
It includes input fuse protection, reverse polarity protection, in-rush current limitation, overload and short circuit protection, and overvoltage safeguard.
The isolation voltage is 1600 VDC, providing enhanced safety and noise reduction.
The output voltage ripple and noise is limited to 75mV.
Yes, it complies with CE standards and has class B EMC performance.
It is suitable for industrial automation, embedded systems power supply, instrumentation, and telecom equipment.
It is manufactured in Taiwan, Province of China.
