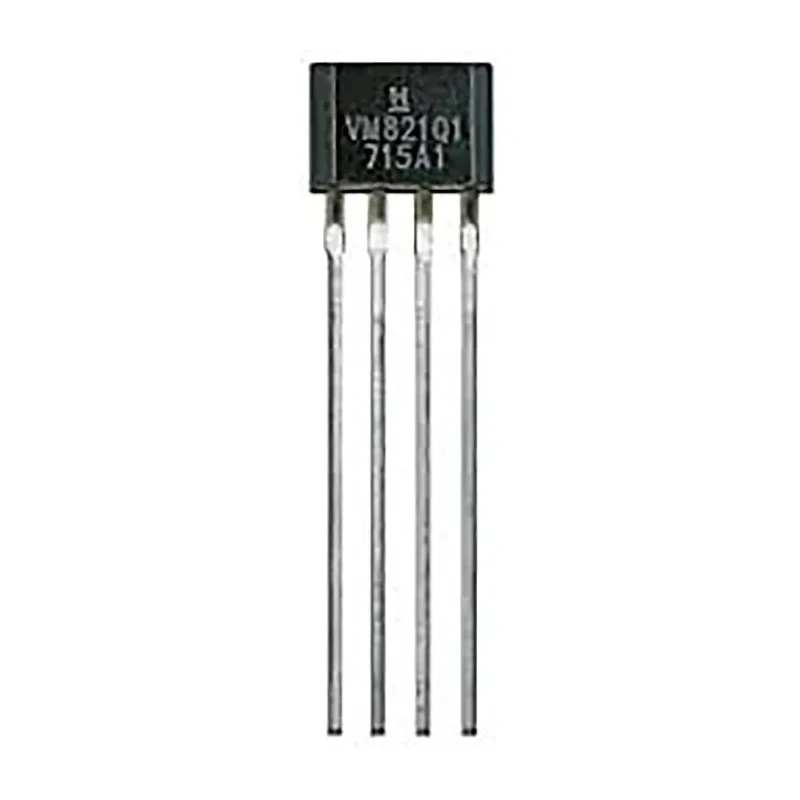

Honeywell Technologies Through Hole Hall Effect Sensor 4 V to 24 V, SIP Package, 4-Pin VM821Q1
Specifications
| Country of Origin | China |
|---|---|
| Brand | Honeywell |
| Response time | 1.5s |
| Height | 3.46mm |
| Length | 5.13mm |
| Model | VM821Q1 |
| Technology | Anisotropic Magnetoresistive |
| Sensor Type | Hall Effect |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | VM821Q1 |
| Maximum Operating Temperature | 150°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | JEDEC JS-002-2014 |
| Pin Count | 4 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 4V |
| Supply Current | 20mA |
| Magnetic Type | Anisotropic Magnetoresistive (AMR) |
| Maximum Frequency Response | 35kHz |
Key Features
- Utilizes anisotropic magnetoresistive (AMR) technology for high sensitivity.
- Through hole mount type with a compact SIP 4-pin package.
- Operates reliably between -40°C and 150°C.
- Maximum frequency response of 35 kHz suitable for dynamic sensing.
- Supplies current of 20 mA ensuring low power consumption.
- Robust design compliant with JEDEC JS-002-2014 and automotive standard AEC-Q100.
- Insensitive to mechanical vibration and no calibration required.
- Applications include industrial speed, direction feedback, encoders, and motor speed control.
Product Description
Honeywell Technologies VM821Q1 is a through hole Hall Effect Sensor featuring anisotropic magnetoresistive (AMR) technology. It operates within a supply voltage range of 4 V to 24 V and is housed in a 4-pin SIP package measuring 5.13 mm in length, 1.6 mm in width and 3.46 mm in height. Designed for high-frequency response up to 35 kHz and a fast response time of 1.5 seconds, this sensor is highly suitable for applications requiring precise magnetic field detection.
With an operational temperature range from -40°C to 150°C and compliance to JEDEC JS-002-2014 standards, it is built to withstand challenging industrial environments. It meets the automotive qualification standard AEC-Q100, making it appropriate for automotive and industrial sensor applications.
The VM821Q1 sensor delivers reliable zero speed operation without requiring recalibration and offers protection against reverse polarity and short circuits. Typical uses include industrial speed and direction feedback in conveyor rollers, gearboxes, induction motors, pumps, compressors, electric blind positioning, and garage door opening systems. Its mechanical vibration insensitivity enhances durability in harsh conditions.
High sensitivity due to anisotropic magnetoresistive technology. Compact SIP 4-pin through hole mounting with standard JEDEC dimensions. Wide operating voltage range from 4 V to 24 V ensuring versatility. Fast response time and high frequency handling for dynamic sensing.
Robust automotive standard compliance for demanding applications. Protection features include reverse polarity and short circuit safeguards. Applications span industrial automation, motor control, and position feedback systems.
Manufactured in China with stringent quality control.
This sensor is ideal for engineering professionals seeking reliable and precise Hall Effect Sensors for industrial, automotive, and manufacturing systems. Explore our Electronics & Electricals category for more sensors and components to support your projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The VM821Q1 sensor operates within a supply voltage range of 4 V to 24 V.
It has a maximum frequency response of 35 kHz, making it suitable for dynamic sensing applications.
This model operates reliably between -40°C and 150°C, allowing it to function in various environmental conditions.
The sensor is housed in a compact SIP package measuring 5.13 mm in length, 1.6 mm in width, and 3.46 mm in height.
It utilizes anisotropic magnetoresistive (AMR) technology, which provides high sensitivity for magnetic field detection.
The VM821Q1 features a 4-pin configuration and is designed for through hole mounting.
No, it delivers reliable zero speed operation without requiring recalibration.
The VM821Q1 meets the automotive qualification standard AEC-Q100, ensuring its suitability for automotive applications.
It includes protection against reverse polarity and short circuits, enhancing its reliability in various applications.
The response time of the VM821Q1 is 1.5 seconds, allowing for quick detection of magnetic fields.
Typical applications include industrial speed and direction feedback, motor speed control, and various automation systems.
