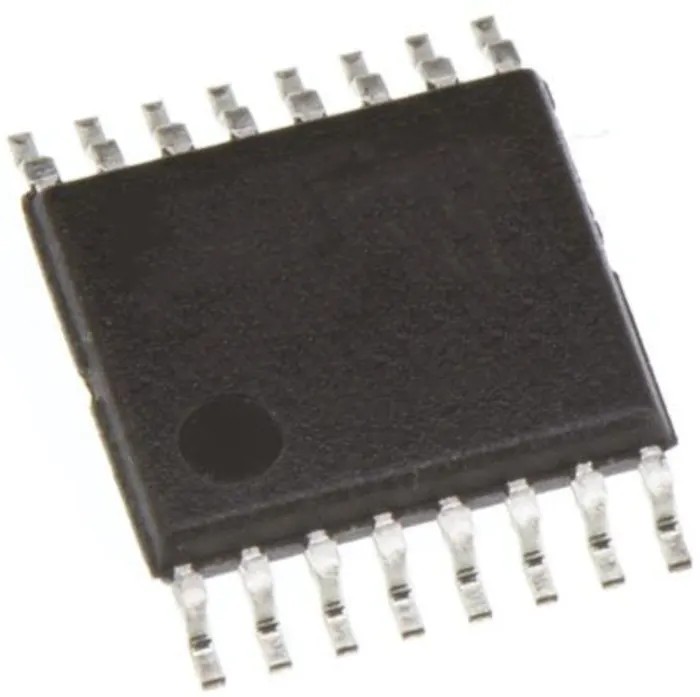

Maxim Integrated LVDS Interface Deserialiser 4 Drivers 4 Receivers 500Mbps TSSOP 16-Pin MAX9121EUE+
Specifications
| Country of Origin | India |
|---|---|
| Brand | Maxim Integrated |
| Height | 420μm |
| Length | 5.1mm |
| Model | MAX9121EUE+ |
| Mount Type | Surface |
| Output type | LVCMOS |
| Series | MAX9121 |
| Input Type | LVDS |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Sub Type | Deserialiser |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | -0.3V |
| Minimum Supply Voltage | 4V |
| Number of Drivers | 4 |
| Number of Receivers | 4 |
| Transmission Data Rate | 500Mbps |
| Differential Input High Threshold Voltage | 100mV |
| Differential Input Low Threshold Voltage | -100mV |
Key Features
- Features a 16-pin TSSOP package suitable for surface mount applications.
- Operates from a minimum supply voltage of 4V with single +3.3V supply.
- Includes integrated termination eliminating the need for external resistors.
- Supports data transmission rate up to 500Mbps with 300ps maximum pulse skew.
- Designed for reliable operation from -40°C to 85°C with ESD protection.
- Flow-through pinout simplifies PCB layout and reduces crosstalk.
- Compatible pin-to-pin with DS90LV048A deserialiser IC.
- Applications include backplane interconnects, network routers, digital copiers, and DSLAM equipment.
Product Description
Maxim Integrated MAX9121EUE+ is a LVDS Interface Deserialiser designed for high-speed data communication applications. It features 4 drivers and 4 receivers, supporting a transmission data rate of 500Mbps. Housed in a compact 16-pin TSSOP package, it is ideal for surface mount technology implementations.
This device operates with a minimum supply voltage of 4V and employs a single +3.3V supply, incorporating integrated termination to eliminate four external resistors, which simplifies the PCB layout and reduces electronic noise via minimized crosstalk. The flow-through pin configuration further supports efficient board design.
With a guaranteed maximum pulse skew of 300ps, the MAX9121EUE+ assures signal integrity and timing precision for demanding applications including add/drop multiplexers, backplane and interconnect systems, cell phone base stations, digital copiers, digital cross-connects, DSLAM equipment, laser printers, and network routers.
Operating across a wide temperature range of -40°C to 85°C complemented by ESD protection, this device is suited for industrial and telecommunications environments. It is pin compatible with the DS90LV048A, allowing straightforward upgrades or system replacements without redesign.
The small form factor, measuring just 5.1mm in length and 420μm in height, makes it suitable for compact electronics requiring high-performance differential signaling. The deserialiser's output is in LVCMOS logic, providing compatibility with a broad range of digital circuits.
Features integrated termination eliminating four external resistors. Flow-through pinout simplifies printed circuit board layout and reduces crosstalk. Pin compatible with DS90LV048A. Guaranteed 500Mbps data rate with 300ps maximum pulse skew.
Single +3.3V supply operation. Fail-safe circuit for improved reliability. Wide operating temperature range from -40°C to 85°C. Applications in telecommunications, networking, and digital imaging devices.
For designs requiring reliable, high-speed LVDS interface deserialization with efficient PCB integration, the MAX9121EUE+ provides an optimized solution. Explore EnvMart's extensive semiconductor components catalog for compatible peripheral devices and support.
Explore more products in our LVDS Interface Ics category.
