Baumer Digital Panel Multifunction Meter LED Display for Current, Voltage, Power, 45 mm x 92 mm PA418

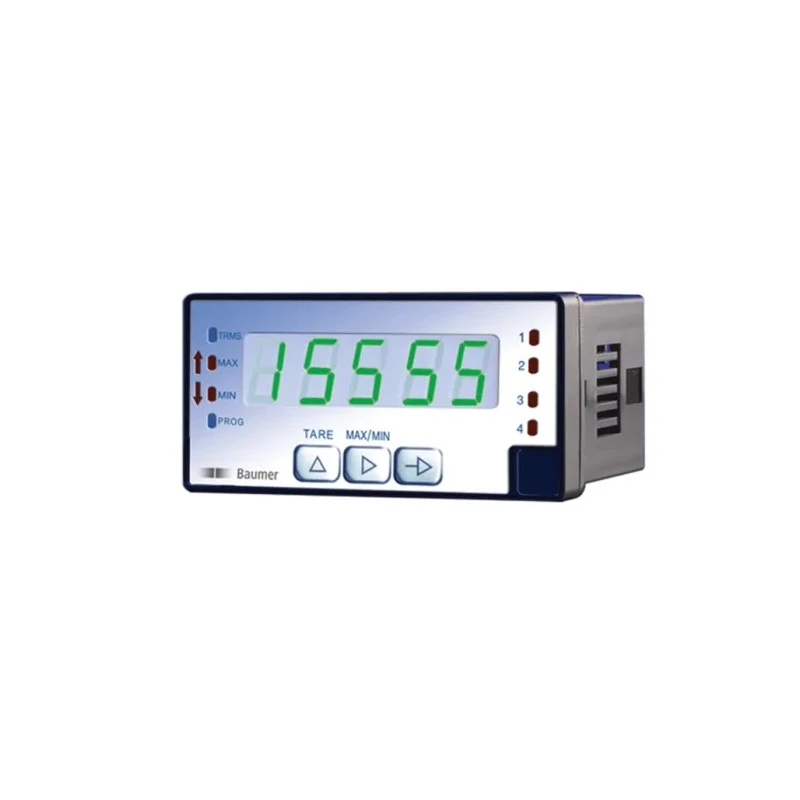

Baumer PA418 Digital Panel Multifunction Meter is an advanced industrial instrument designed for accurate measurement of electrical parameters including current, voltage, and power. It features a bright LED display with 5 digits and three color indicators, ensuring clear readability in various industrial environments. The compact DIN housing with cutout dimensions of 45 mm height and 92 mm width allows easy integration into control panels and automation systems.

This multifunction meter supports a wide range of inputs such as voltage ±10 V, current ±20 mA, thermocouples types J, K, T, Pt100 sensors, strain gauges, and potentiometers, catering to diverse process monitoring needs. Its programmable characteristic curve with 11 control points and three programmable control inputs provide flexible customization for complex applications. The device also incorporates useful functions like Min, Max, and Tare to assist in process optimization.

For seamless industrial communication, it includes RS232 and RS485 interfaces. The analogue output options of 4 - 20 mA or 0 - 10 V enhance compatibility with process controllers and data acquisition systems.

Built to endure industrial conditions, this meter operates reliably from -10°C up to 60°C and complies with UL 94 V-0 safety standards. The depth of the device is 96 mm, and the digit height is 14 mm, providing clear visibility and compact design advantages.

Manufactured in Spain by Baumer, this product is ideal for electrical automation, process control, HVAC, laboratory, and manufacturing applications requiring precise multi-parameter measurements.

Measures current, voltage, and power accurately with a digital meter. LED display with five digits and three colors enhances readability. Compact panel cutout size of 45 mm height and 92 mm width fits standard DIN housing.

Operates reliably between temperatures of -10°C to 60°C. Equipped with multiple inputs including voltage ±10 V, current ±20 mA, thermocouples, strain gauge, and potentiometer. Programmable characteristic curve with eleven control points for versatile application.

Provides three programmable control inputs and supports Min, Max, Tare functions. Output options include analogue 4-20 mA or 0-10 V for flexible interfacing. Communication interfaces RS232 and RS485 ensure integration with industrial systems.

Made in Spain with compliance to UL 94 V-0 standards for safety and durability. Explore more Baumer products and multifunction panel meters at EnvMart for industrial and process control solutions.
