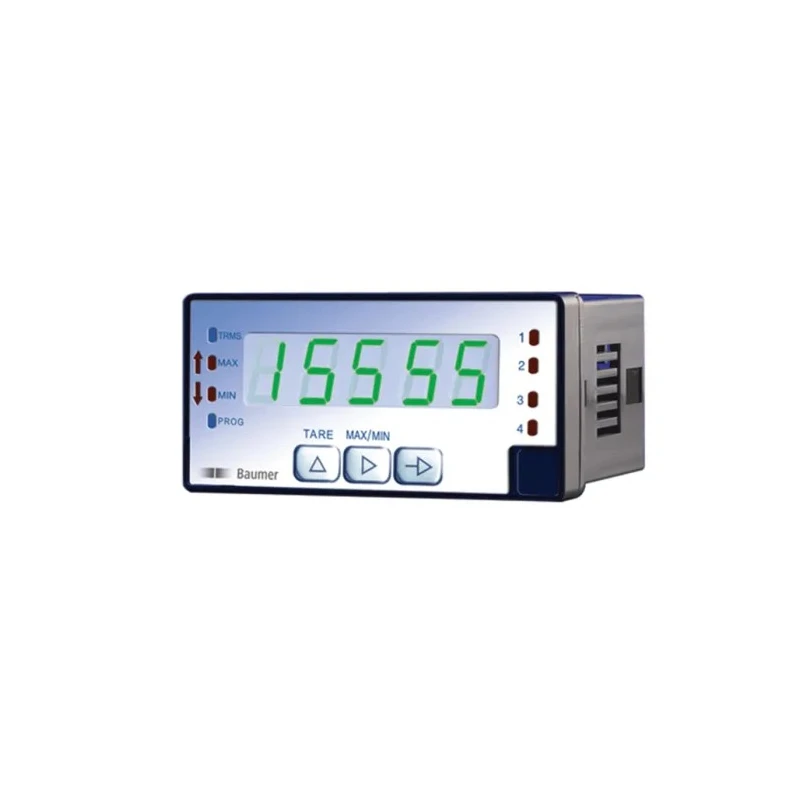

Baumer Digital Panel Multifunction Meter Power Current Voltage LED Display Cutout 45mm x 92mm PA418

Baumer PA418 digital panel multifunction meter combines precision and versatility for industrial power, current, and voltage measurement tasks. The meter features a robust LED display with five digits displayed in three different colors, allowing easy reading and interpretation of measurements. Designed with a compact cutout size of 45 mm height and 92 mm width, it fits standard panel installation requirements.

This multifunction meter supports multiple input types including voltage ±10 V, current ±20 mA, thermocouples J, K, T, Pt100 sensors, strain gauges, and potentiometers, making it suitable for a wide range of industrial automation applications. Its programmable characteristic curve with 11 control points offers flexibility in custom sensor calibration.

The meter incorporates three programmable control inputs and functionalities such as minimum, maximum, and tare operations. A display stabilization filter enhances measurement accuracy by reducing fluctuations. For analog signal output, it offers selectable 4 - 20 mA or 0 - 10 V outputs, ensuring compatibility with various control systems.

Communication is facilitated through RS232 or RS485 interfaces, enabling integration into complex monitoring or automation networks. Its DIN housing measures 96 mm in depth and meets UL 94 V-0 fire safety standards, assuring reliability and safe operation in demanding industrial environments. The meter is rated to operate within a temperature range from -10°C up to 60°C, covering most industrial ambient conditions.

Manufactured in Spain, this Baumer PA418 multifunction meter is ideal for process control in electrical and automation sectors, delivering dependable performance in power monitoring, industrial equipment control, and instrumentation systems.

Measures power, current, and voltage with high precision. Equipped with a bright 5-digit LED display in three colors. Programmable inputs include voltage, current, thermocouples, strain gauge, and potentiometer. Offers programmable characteristic curves and three control inputs.

Includes min, max, and tare functions with display stabilization filter. Provides analogue output options of 4 - 20 mA or 0 - 10 V for flexible signaling. Communication interfaces available via RS232 or RS485 protocols. DIN housing dimensions of 96 x 48 mm with durable build.

Operates reliably between -10°C and 60°C ambient temperature. Meets UL 94 V-0 standard for safety and durability. Explore the full range of Digital Panel Multifunction Meters and industrial automation products at EnvMart to find the optimal components for your applications.
