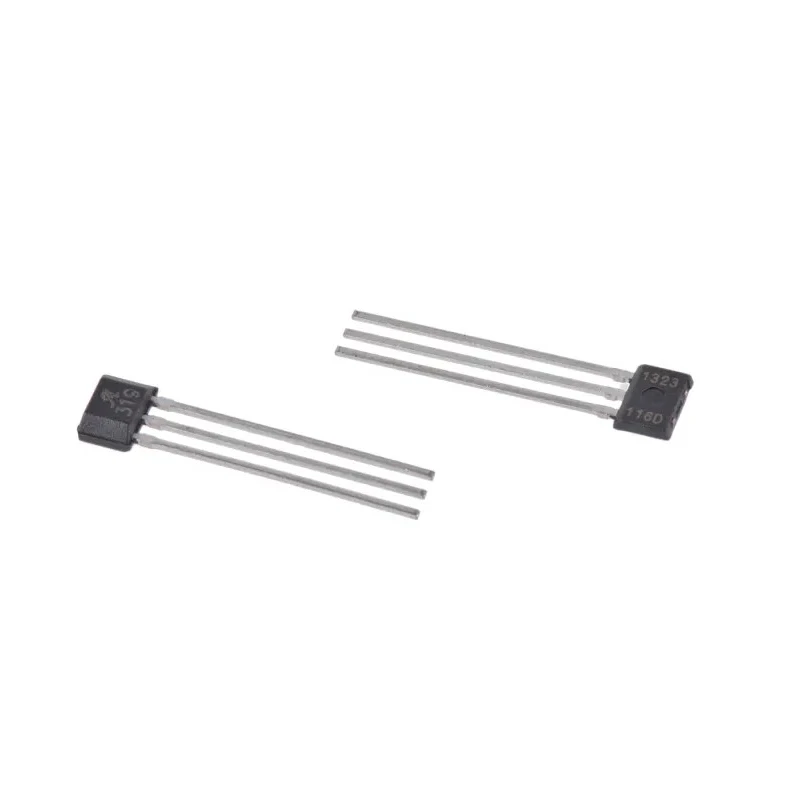

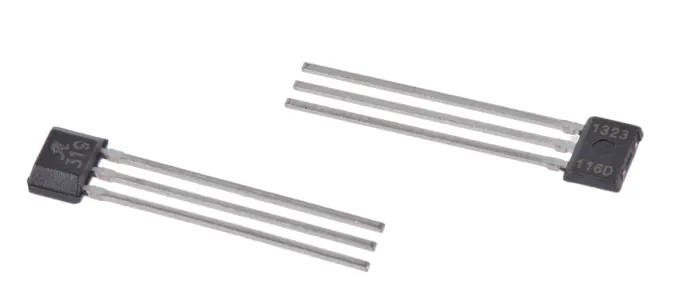

Allegro Microsystems 1 Axis Through Hole Linear Hall Effect Sensor, Analogue SIP, 3-Pin, 3V to 3.6V Supply A1319LUA-5-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Allegro Microsystems |
| Response time | 50μs |
| Height | 3.02mm |
| Length | 4.09mm |
| Model | A1319LUA-5-T |
| SENSITIVITY | 5mV/g |
| Technology | BiCMOS |
| Sensor Type | Hall Effect Sensors |
| Width | 1.52mm |
| Mount Type | Through Hole |
| Series | A1318A1319 |
| Maximum Operating Temperature | 150°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of axis | 1 |
| Interface Type | Analogue |
| Pin Count | 3 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Supply Current | 7.7mA |
| Magnetic Type | Linear |
| Maximum Frequency Response | 20kHz |
| Wide ambient temperature range | - 40°C to 150°C |
Key Features
- The sensor integrates BiCMOS technology for enhanced sensitivity and stability.
- It operates over a wide ambient temperature range from -40°C to 150°C.
- Features a high bandwidth and low noise analogue output suitable for precise measurements.
- Compact through-hole SIP package enables easy integration in industrial and automotive applications.
- Includes temperature compensation and dynamic offset cancellation for superior accuracy.
- Has a maximum frequency response of 20 kHz and response time of 50 microseconds.
- Designed to operate with a low supply current of 7.7 mA for energy efficiency.
- Output voltage clamps provide short circuit diagnostic features for reliability.
Product Description
Allegro Microsystems A1319LUA-5-T is a high-precision, 1 axis linear Hall effect sensor designed with BiCMOS monolithic circuits that integrate a Hall element, temperature compensation, and a low noise amplifier within a compact single inline package (SIP) suitable for through-hole mounting.
This sensor operates over a broad temperature range of -40°C to 150°C, making it ideal for demanding industrial and automotive sensing applications. It supports a supply voltage range of 3 V to 3.6 V and outputs an analogue signal proportionate to magnetic field intensity with a sensitivity of 5 mV/g.
The device features a rapid response time of 50 microseconds and a maximum frequency response of 20 kHz, delivering timely and accurate position and motion detection. Its dynamic offset cancellation and temperature stability ensure reliable output voltage consistency across extended periods and temperature fluctuations.
Architected for enhanced EMC performance and mechanical stress immunity, the sensor guarantees durability in harsh operating environments. The output voltage clamping provides short circuit diagnostics, enhancing system reliability. This 3-pin SIP package with dimensions 4.09 mm length, 3.02 mm height, and 1.52 mm width facilitates straightforward PCB integration for various electronic assemblies.
Applications include precise angular position sensing, motor commutation, and industrial automation requiring reliable magnetic field detection with low noise figures. The sensor provides a low power supply current of 7.7 mA for efficient operation in embedded systems.
Temperature compensation circuitry minimizes intrinsic sensitivity drift for enhanced accuracy. Suitable for automotive and industrial sectors needing stable magnetic sensing across extreme conditions. Its lead-free construction with matte tin plating ensures environmental compliance and durability.
Offers precise recoverability after temperature cycling for consistent performance. Designed and optimized by Allegro Microsystems for superior measurement fidelity. Explore our comprehensive range of Hall Effect Sensors and find the perfect solution for your motion detection and position sensing needs at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates over a wide ambient temperature range from -40°C to 150°C, making it suitable for demanding industrial and automotive applications.
This model features a maximum frequency response of 20 kHz, allowing for timely and accurate position and motion detection.
The sensitivity of this Hall effect sensor is 5 mV/g, providing precise measurements of magnetic field intensity.
It outputs an analogue signal that is proportionate to the magnetic field intensity, suitable for various applications.
The dimensions of the SIP package are 4.09 mm in length, 3.02 mm in height, and 1.52 mm in width, facilitating easy PCB integration.
This sensor operates with a supply voltage range of 3 V to 3.6 V, ensuring compatibility with various systems.
The supply current for this model is 7.7 mA, contributing to its energy efficiency in operation.
The temperature compensation circuitry minimizes intrinsic sensitivity drift, enhancing the accuracy of the sensor across varying temperatures.
The response time of the sensor is 50 microseconds, allowing for rapid detection of changes in the magnetic field.
It is suitable for precise angular position sensing, motor commutation, and industrial automation requiring reliable magnetic field detection.
The sensor includes output voltage clamps for short circuit diagnostics and dynamic offset cancellation for superior accuracy and reliability.
This model utilizes BiCMOS technology, which enhances sensitivity and stability in its performance.
