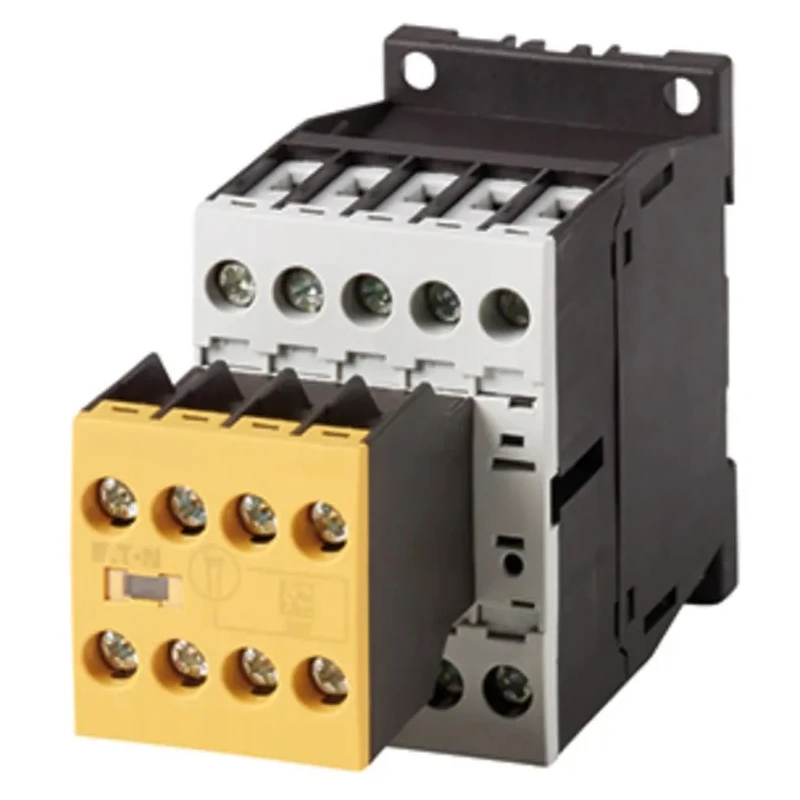

Eaton Safety Contactor 3-Pole 9A 3kW Coil Voltage 120V AC Control Voltage 24V Model 191734 DILMS9-R23(110V50HZ,120V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 45mm |
| Model | 191734 DILMS9-R23(110V50HZ,120V60HZ) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 3kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 400V ac |
| Coil Voltage | 120V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 9A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with a 120V AC coil voltage ensuring effective operation in AC control circuits.
- Features a 3 NO normal state auxiliary contact configuration for safety monitoring.
- Includes five auxiliary contacts with 2 NO and 3 NC configurations for enhanced control flexibility.
- Constructed with a durable screw clamp terminal type for secure electrical connections.
- Operates reliably within a temperature range of -25°C to 60°C suitable for harsh industrial environments.
- Compact dimensions with 117mm width, 68mm depth, and 45mm length optimize panel space usage.
- Certified to CSA, IEC, and UL standards ensuring compliance with global safety and performance requirements.
- Designed with a visible inspection window and a distinctive yellow cover to facilitate safe status monitoring.
Product Description
Eaton 191734 DILMS9-R23(110V50HZ,120V60HZ) safety contactor is a high-reliability device tailored for safety-critical industrial and automation applications. This 3-pole contactor supports a contact voltage of 400V AC and contact current of 9A, delivering a power rating of 3 kW. It features a 120V AC coil voltage and a 24V control circuit voltage, allowing safe and efficient machine control.
The contactor integrates a top-mounted, non-detachable auxiliary contact, providing five auxiliary contacts configured as 2 NO and 3 NC, to enhance the control and monitoring capabilities. A robust screw clamp terminal ensures secure and reliable electrical connections. The unit operates effectively within a broad temperature range from -25°C to +60°C, making it suitable for demanding industrial environments.
The compact dimensions of 117mm width, 68mm depth, and 45mm length make it ideal for panel installations where space efficiency is essential. The yellow (RAL1004) cover and integrated inspection window above the switch-position indicator provide a reliable visual status check to prevent accidental manual activation, beneficial for safety and emergency-stop applications with controlled start (category 4).
This contactor conforms to CSA, IEC, and UL certification standards, guaranteeing certified safety and quality. It is especially designed for use in safety and machine control circuits that require high reliability and self-monitoring features. The DILMS range spans four different sizes covering the power spectrum from 7 to 150 A, making this model a versatile solution for various industrial automation needs.
Equipped with a 120V AC coil voltage for optimal AC control circuit compatibility. 3-pole configuration supporting a 9A contact current and 3 kW power rating. Top-mounted, non-detachable auxiliary contacts with 2 NO and 3 NC for enhanced monitoring.
Screw clamp terminals provide secure electrical connections. Temperature range of -25°C to 60°C suitable for industrial environments. Compact dimensions facilitate efficient panel mounting. Complies with CSA, IEC, and UL certification standards ensuring safety and quality.
Yellow cover and integrated inspection window enable safe manual activation prevention and quick status verification.
This Eaton DILMS safety Contactor is an ideal choice for industrial, manufacturing, HVAC, and safety-critical applications requiring dependable machine control and emergency stop functions. Explore more automation and control gear on EnvMart to find compatible components that enhance system safety and reliability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage for this model is 120V AC, ensuring effective operation in AC control circuits.
This contactor has a contact current rating of 9A, making it suitable for various industrial applications.
The dimensions of this model are 117mm in width, 68mm in depth, and 45mm in length, optimizing panel space usage.
The Eaton Safety Contactor has a power rating of 3 kW, suitable for safety-critical applications.
It operates effectively within a temperature range of -25°C to +60°C, suitable for harsh industrial environments.
This model includes five auxiliary contacts, configured as 2 normally open (NO) and 3 normally closed (NC), enhancing control flexibility.
It is certified to CSA, IEC, and UL standards, ensuring compliance with global safety and performance requirements.
The contactor features a screw clamp terminal type, providing secure and reliable electrical connections.
The normal state configuration consists of 3 normally open (NO) contacts for safety monitoring.
This contactor is designed for safety and machine control circuits that require high reliability and self-monitoring features.
This model is designed for table mounting, making it suitable for various installation setups.
The contact voltage rating for this safety contactor is 400V AC, making it suitable for a range of applications.
