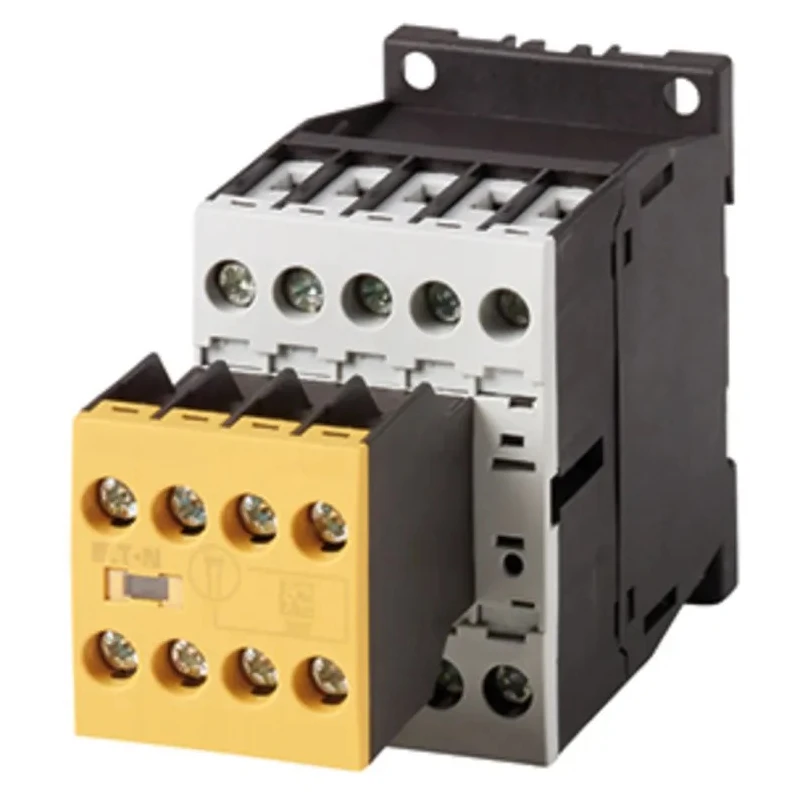

Eaton Safety Contactor 3-Pole 7 A 3 kW 120V AC Coil 24V Control Circuit 191733 DILMS7-R23(110V50HZ,120V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Safety |
| Length | 45mm |
| Model | 191733 DILMS7-R23(110V50HZ,120V60HZ) |
| Depth | 68mm |
| Width | 117mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 3kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 400V ac |
| Coil Voltage | 120V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 7A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 7A |
| Control Circuit Voltage Uc | 24V |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
| Eaton DILM Contactor, 110 V Coil, 3-Pole, 7 A, 3.5 kW, 400 VBrand | Eaton |
Key Features
- Equipped with a yellow cover for fast identification of safety devices.
- Features 3 normally open (NO) contacts and 5 auxiliary contacts (2 NO, 3 NC).
- Supports 400V AC contact voltage with screw clamp terminals.
- Includes top-mounted, non-detachable auxiliary contact to prevent tampering.
- Suitable for emergency-stop applications with controlled start, category 4.
- Reliable self-monitoring machine-control circuits with interlocked opposing and mirror contacts.
- Operating temperature range from -25°C to 60°C for versatile environments.
- Compact dimensions of 117 mm width, 45 mm length, and 68 mm depth.
Product Description
Eaton 191733 DILMS7-R23(110V50HZ,120V60HZ) is a safety contactor featuring a 120V AC coil voltage, 3 poles, rated for 7 A contact current and 3 kW power rating, with a 24V control circuit voltage. Designed for safety-related device applications, this contactor ensures reliable and secure operation with enhanced protection against manual activation.
The DILMS series safety contactors come with a yellow cover (RAL1004) to enable fast and clear identification in industrial and automation systems. It includes a non-detachable top-mounted auxiliary contact to prevent unauthorized manual actuation and tampering.
With integrated mirror contacts and interlocking opposing contacts, the contactor offers self-monitoring safety features aligned with stringent industrial standards such as CSA, IEC, and UL. The built-in inspection window above the switch position indicator allows for easy status monitoring in control panels.
This 3-pole contactor supports an operational current of 7 A and contact voltage up to 400V AC. It includes 5 auxiliary contacts configured as 2 normally open and 3 normally closed for auxiliary control functions. Connections utilize reliable screw clamp terminals for secure wiring.
The contactor operates reliably over a wide temperature range from -25°C to 60°C and features a compact design measuring 117 mm (W) x 45 mm (L) x 68 mm (D). It is suitable for emergency-stop applications with controlled start (category 4), safety machine controls, industrial automation, construction, HVAC systems, and manufacturing plants.
Manufactured in Romania, this Eaton DILMS series model is ideal for integrating into safety circuits requiring dependable switching, tamper prevention, and self-monitoring capabilities, ensuring operator and equipment protection in industrial environments.
Equipped with a yellow cover for easy safety device identification. Top-mounted, non-detachable auxiliary contact for tamper protection. Interlocking opposing contacts with mirror contacts for enhanced safety. Reliable screw clamp terminals for secure wiring connections.
Wide operating temperature range from -25°C to 60°C. Certified to CSA, IEC, and UL standards. Compact form factor suitable for various industrial panels. Supports emergency-stop applications with controlled start, category 4.
5 auxiliary contacts configured 2 NO / 3 NC for versatile control circuits. Inspection window for easy operational status monitoring.
Explore the Eaton automation components range for reliable and certified products designed to meet demanding industrial control requirements. This Contactor is essential for ensuring safety and operational reliability across various automation and control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton DILMS7-R23 contactor has a power rating of 3 kW.
This model supports a maximum contact voltage of 400V AC.
The coil voltage for this safety contactor is 120V AC.
The Eaton DILMS7-R23 contactor features 3 poles.
It includes 5 auxiliary contacts configured as 2 normally open (NO) and 3 normally closed (NC).
The dimensions of this unit are 117 mm in width, 45 mm in length, and 68 mm in depth.
The operational current rating for this contactor is 7 A.
It operates reliably within a temperature range of -25°C to 60°C.
This contactor utilizes screw clamp terminals for secure wiring connections.
It is certified to CSA, IEC, and UL standards.
The top-mounted auxiliary contact is non-detachable and designed to prevent unauthorized manual actuation and tampering.
This model is suitable for emergency-stop applications with controlled start, as well as safety machine controls and industrial automation.
