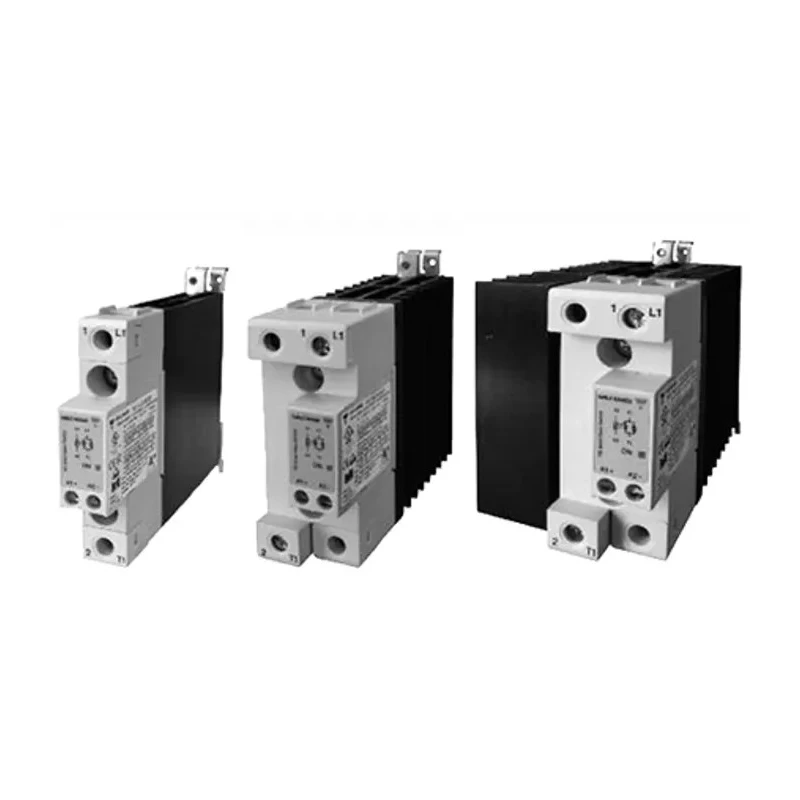

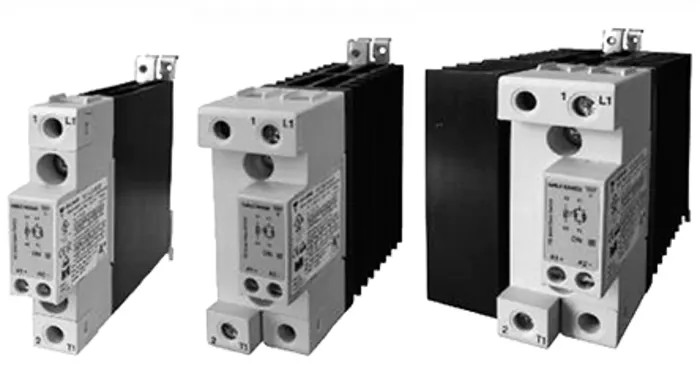

Carlo Gavazzi RGC Series Solid State Relay 30A Load Current, DIN Rail Mount, 600V AC Load, 32V DC Control RGC1A60D30KGU

The Carlo Gavazzi RGC1A60D30KGU solid state relay is engineered for industrial and electrical automation applications requiring reliable switching of AC loads up to 30A. It features a DIN rail mounting design that facilitates easy integration into control panels and electrical enclosures.

With a maximum load voltage of 600V AC and minimum load voltage of 42V AC, this relay is suitable for a broad range of AC load switching scenarios. The control side operates from 4V DC minimum to 32V DC maximum, providing effective interfacing with control circuits.

The relay uses a SPST contact configuration with screw terminals ensuring robust mechanical and electrical connections. This model incorporates zero cross switching functionality to minimize electromagnetic interference during switching, thus enhancing operational reliability.

Housing with IP20 ingress protection safeguards internal components from solid foreign objects, while its wide operating temperature range from -40°C to 80°C supports usage in harsh environments. The integrated varistor provides transient voltage suppression, protecting connected equipment.

Safety is further enhanced by its 100 kA short circuit current rating, meeting stringent installation requirements. Compact form factor with 110mm height, 70mm width, and only 22.5mm depth optimizes space utilization inside panels.

Certified to international standards including UKCA, CE, cULus, EAC, EE, RoHS, UL, and VDE, this relay ensures compliance with global safety and quality regulations. It is made in Malta, assuring high manufacturing quality.

The relay features a 32V DC control voltage for precise operation. It supports zero cross switching function for reduced electrical noise. Constructed with a SPST contact configuration and screw terminal type for secure connections.

IP20 rated enclosure provides standard ingress protection. Operational temperature ranges from -40°C to 80°C for versatile applications. Integrated varistor output type offers voltage transient protection. The relay offers a short circuit current rating of 100 kA ensuring safety in industrial environments.

Compact dimensions of 110mm height, 70mm width, and 22.5mm length optimize panel space. Certified under UKCA, CE, cULus, EAC, EE, RoHS, UL, and VDE standards.

This Solid State Relay is widely used in industrial automation, electrical panels, manufacturing machinery, HVAC systems, and process control applications. Its reliable switching and safety features make it suitable for high-demand commercial and industrial environments.
