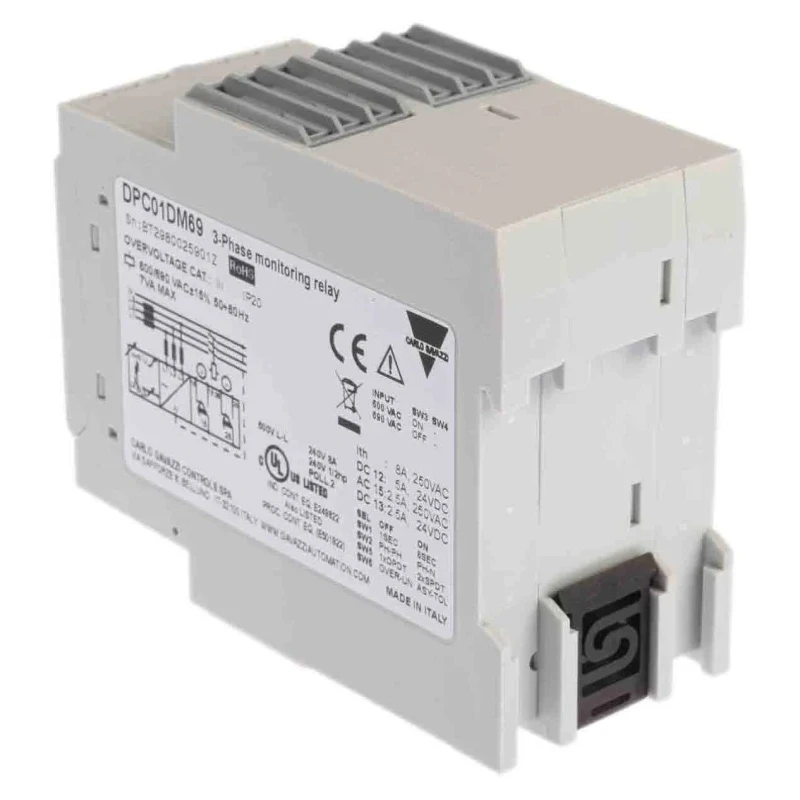

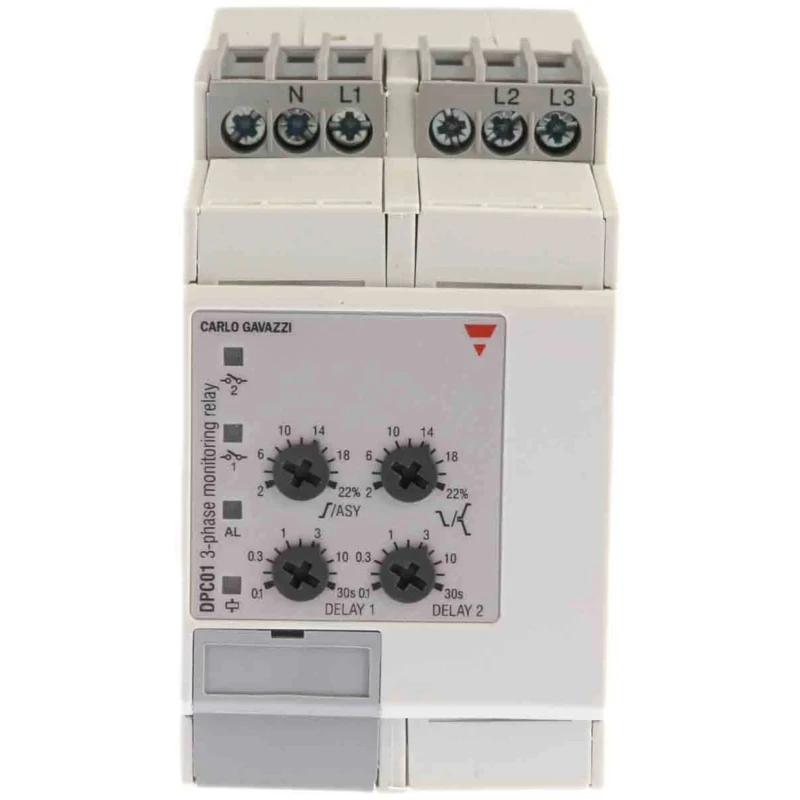

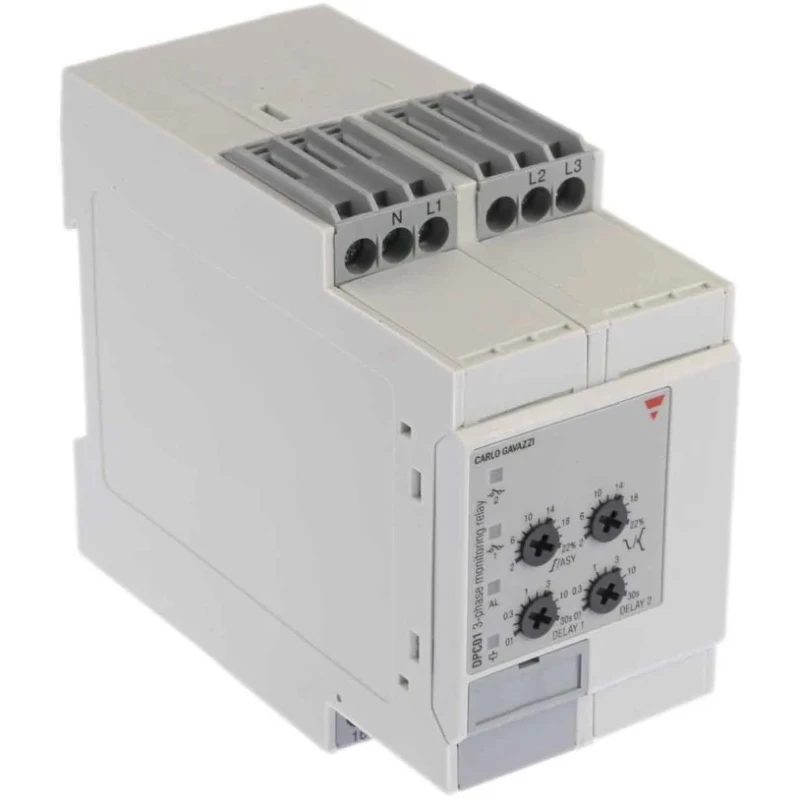

Carlo Gavazzi 3-Phase Monitoring Relay 510/793 V AC Monitor Range, SPDT Contact, DIN Rail Mount, 600 V AC, 690 V DPC01DM69

Carlo Gavazzi DPC01DM69 3-Phase Monitoring Relay is a precision device designed for industrial and commercial electrical monitoring applications, providing overvoltage and overcurrent monitoring in three-phase power systems. It operates with a wide AC monitor range of 510/793 V and supports supply voltages of 600 V AC and 690 V AC with a 24 V DC control supply.

This relay features a Single Pole Double Throw (SPDT) contact configuration, ensuring reliable switching performance for control circuits. The DIN Rail mounting design facilitates easy integration into existing panel setups, while screw-type terminals offer secure and straightforward wiring connectivity.

The unit is suitable for operation in challenging environments with an operating temperature range from -60°C to +60°C and an IP20 rating, providing protection against accidental contact and solid objects. It is equipped with a built-in latch function to maintain the ON state upon alarm conditions, complemented by a red LED indicator that signals relay and power status clearly.

Programmable features include adjustable voltage limits, hysteresis, and selectable measuring ranges via DIP switches, allowing tailored monitoring from 2 to 20 VAC/DC up to 50 to 500 VAC/DC. This flexibility makes it ideal for use as a 1-phase or 3-phase overcurrent monitoring relay when paired with current transformers.

The DPC01DM69 is compliant with multiple international standards such as RoHS, EN 61000-6-3, IEC 60947, UL EN 61000-6-2, and CE, ensuring safety, reliability, and electromagnetic compatibility in industrial applications.

Its compact form factor with dimensions 80 mm height, 45 mm width, and 99.5 mm length makes it suitable for space-limited installations in automation, manufacturing, HVAC, power distribution, and control systems.

Designed for advanced overvoltage and overcurrent monitoring in three-phase electrical circuits. Mounts securely on DIN Rail for easy installation and maintenance. Programmable measuring ranges and latch function for flexible operation.

Clear LED indication for alarm and relay status. Robust industrial-grade compliance and protection standards.

This relay is an essential component in monitoring devices for electrical infrastructure where protecting equipment from voltage anomalies and current overloads is critical. Explore more Carlo Gavazzi Monitoring Relays and allied components on EnvMart for enhanced electrical system safety and performance.
