Carlo Gavazzi RS1A Series Solid State Relay, 25 A Load Current, Panel Mount, 265 V AC Load Voltage, 32 V DC Control

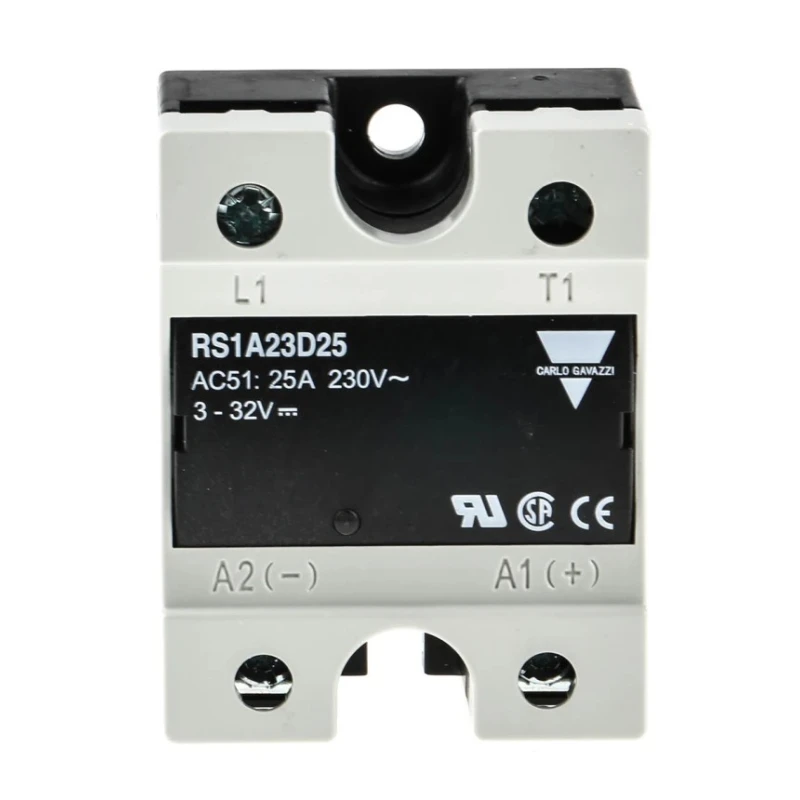

Carlo Gavazzi RS1A23D25 is a solid state relay from the RS1A Series designed for panel mounting applications, supporting a maximum load current of 25 A and rated for 265 V AC load voltage with control voltages up to 32 V DC. This relay features zero cross switching function to provide reliable switching performance with minimal electrical noise.

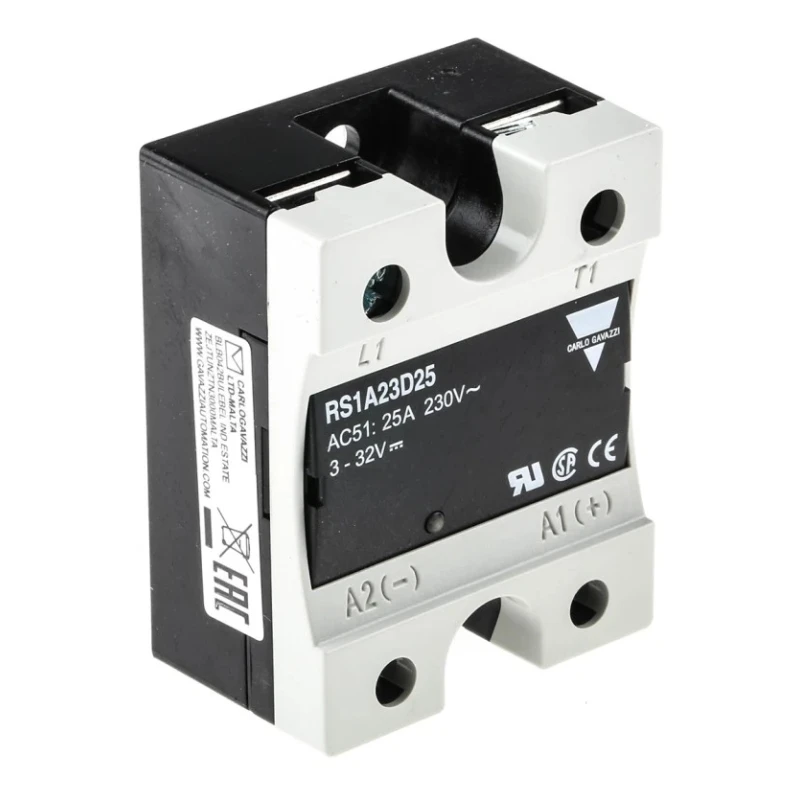

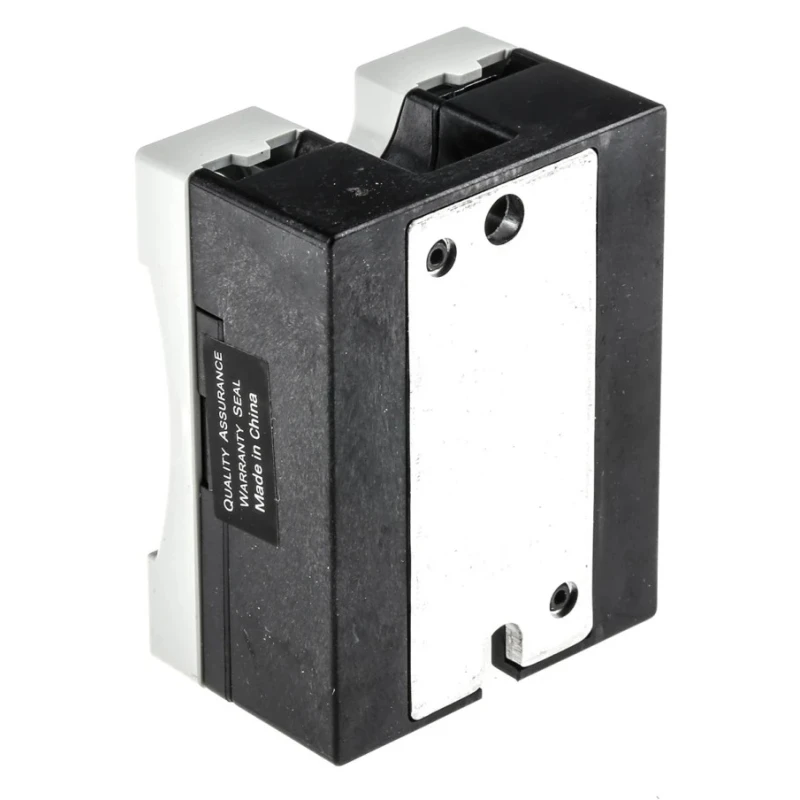

The product integrates an integral heatsink construction with an IP20 rated touch-safe cover which can be detached for connection adaptations, such as ring terminal fittings. The screw terminal type ensures secure and durable electrical connections.

Its SPST single-pole, single-throw contact configuration makes it suitable for switching resistive loads and motors. The device operates safely across a temperature range of -20°C to 70°C, suitable for various industrial environments.

Dimensions of the relay are compact at 44.8 mm length, 44.8 mm width, and 28.8 mm height, facilitating flexible installation in constrained panel spaces. The relay includes an LED indicator for easy status monitoring and features an integrated snubber network to protect against voltage spikes.

This Carlo Gavazzi solid state relay complies with multiple international standards including CE, CSA, cUR, EAC, UKCA, and UR, signifying robust quality and safety assurance. It is manufactured in China under strict quality control protocols.

Applications include industrial automation systems, electrical control panels, HVAC controls, manufacturing equipment, and other environments requiring reliable, maintenance-free switching of AC loads.

Designed for zero cross switching to ensure efficient operation. Equipped with screw terminal type for secure connections. Features SPST contact configuration for single-pole, single-throw application. Includes integral heatsink with IP20 touch-safe cover for safety and heat dissipation.

Suitable for resistive loads and motor applications. Operating temperature range from -20°C to 70°C. Compact dimensions: 44.8 mm length, 44.8 mm width, 28.8 mm height. Built-in LED status indicator for operational monitoring.

Complies with CE, CSA, cUR, EAC, UKCA, and UR standards. Manufactured in China ensuring industrial quality standards. Discover more Solid State Relays and electrical automation components in EnvMart's Electronics & Electricals range to suit your industrial and manufacturing needs.
