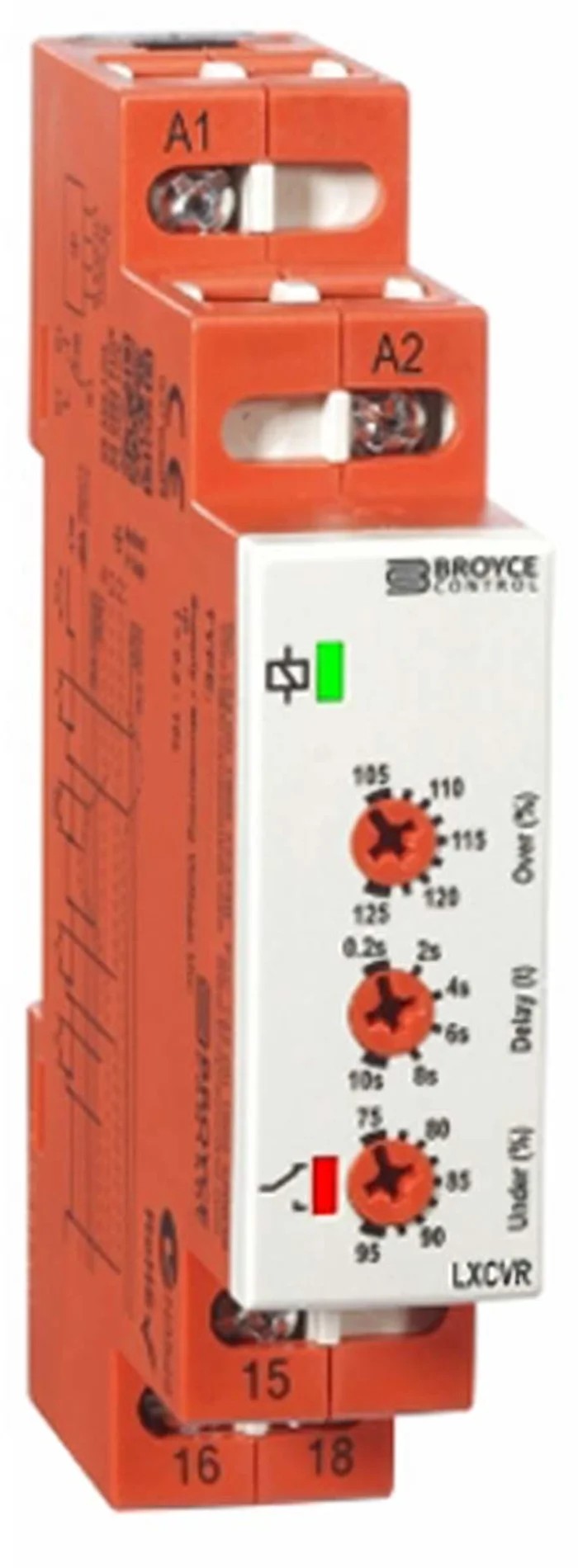

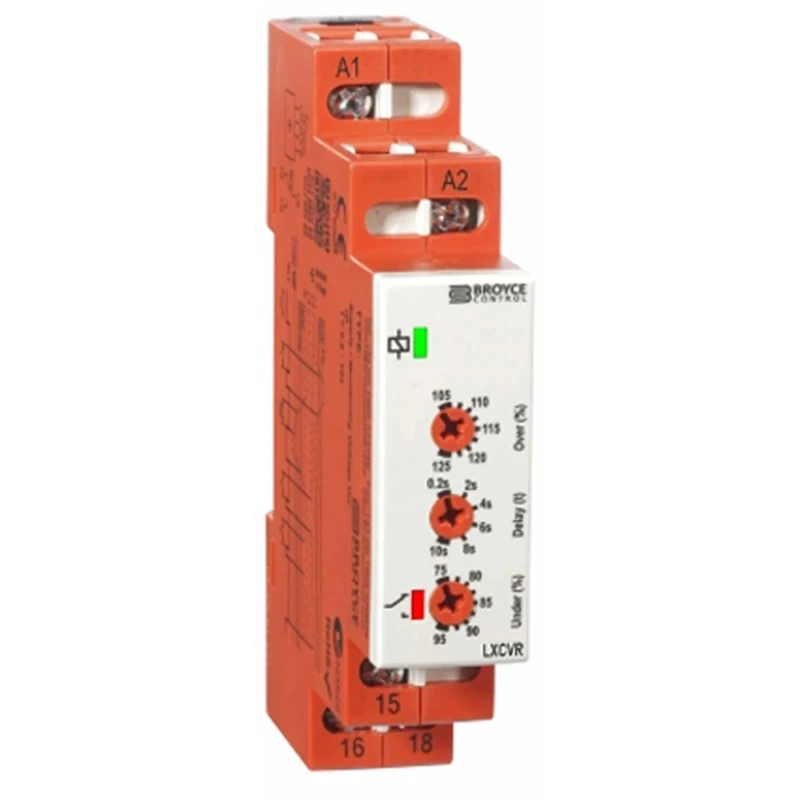

Broyce Control Monitoring Relay, 1 Phase, 110/240 V AC Monitor Range, SPDT Contact, DIN Rail Mount, 25 V AC Supply LXCVR 115V

Broyce Control LXCVR 115V Monitoring Relay is a versatile and reliable device designed for industrial and automation applications requiring phase voltage monitoring. This relay features a 1 phase monitoring capability with a broad 110/240 V AC range and is fitted with an SPDT 8 A contact output. Its compact housing is optimized for DIN Rail mounting, allowing convenient installation in electrical panels.

The device operates with a 25 V AC supply voltage and incorporates easy-to-read LED indicators, including a green LED for supply status and a red LED for relay operation status, facilitating straightforward monitoring and troubleshooting. Constructed with screw terminal connectors, it ensures secure and durable electrical connections.

With a switching voltage capacity of 250 V AC and a contact current rating of 8 A, this relay can handle typical industrial loads and control circuits. It operates reliably within a temperature range up to 60°C, supporting robust performance in demanding environments.

Approval and compliance with international standards such as UL, IEC, RoHS, and CE underline the product’s quality and safety. The L series relay range incorporates the latest microprocessor-based technology and offers user-adjustable features suitable for various control applications.

Its compact dimensions (89 mm height, 66.5 mm length, and 17.5 mm width) and IP20 rating make it suitable for protected environments and standard DIN Rail assemblies. Manufactured in the United Kingdom, this relay is a dependable component for industrial, laboratory, automation, and manufacturing applications seeking precise voltage monitoring and control.

Reliable 1 phase monitoring with 110/240 V AC range for industrial use. SPDT relay output rated at 8 A to handle typical control loads. DIN Rail mounting design with compact 17.5 mm width for space saving. Clear LED indication for both supply and relay status for easy diagnostics.

Secure screw terminal connections for robust electrical installation. Switching voltage up to 250 V AC supports various applications. Wide operating temperature range from +60°C minimum to 60°C maximum. Compliance with UL, EN 61000-6-2, EN 61000-6-4, IEC, RoHS, and CE standards ensures safety and quality.

Part of the L Series featuring microprocessor-based user adjustable relays. Manufactured in the United Kingdom with trusted quality. Explore more Broyce Control Monitoring Relays and control gear solutions on EnvMart for reliable industrial and automation performance.
