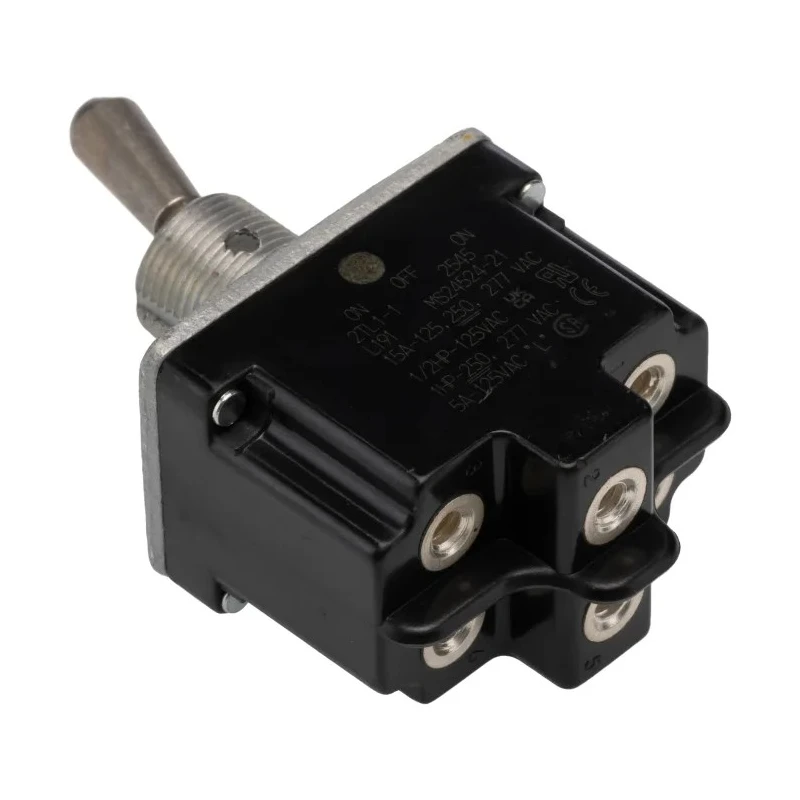

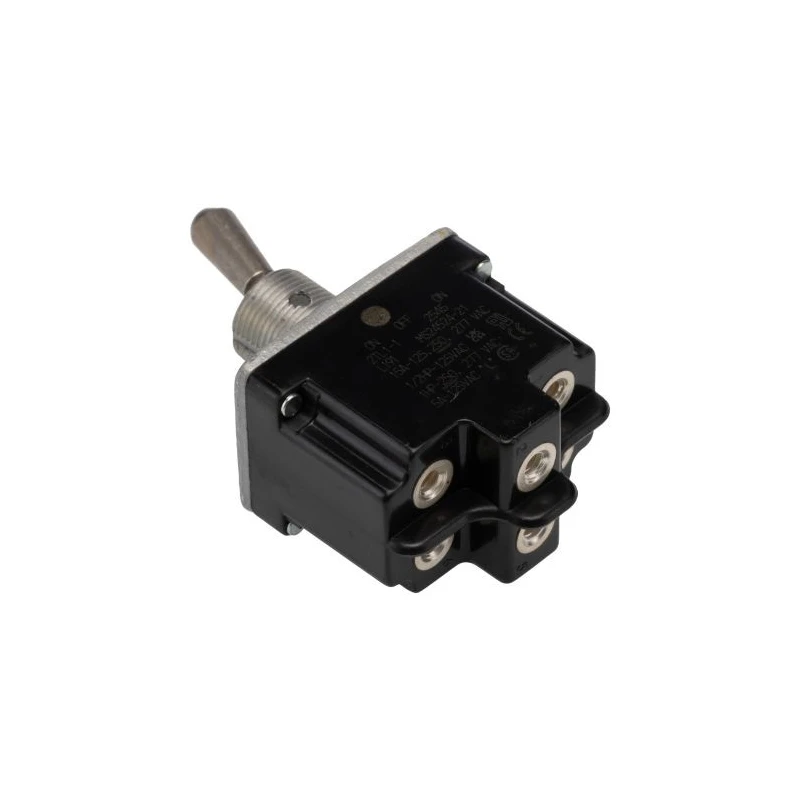

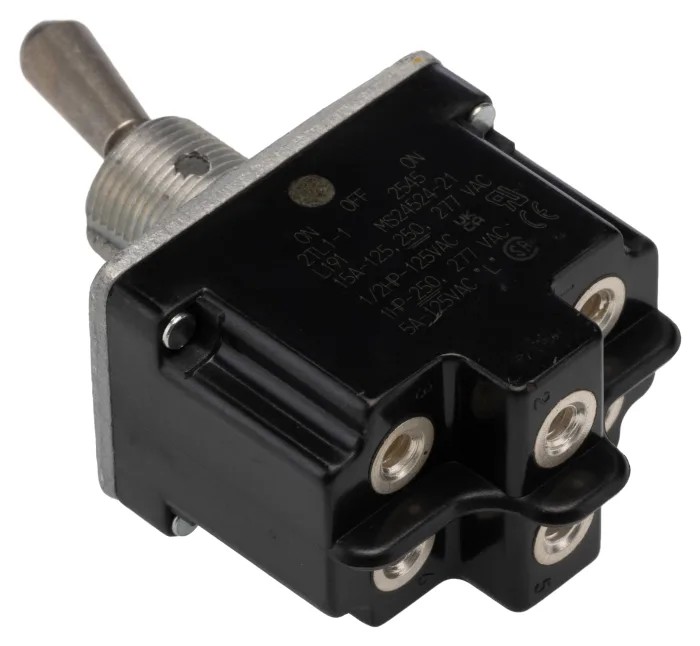

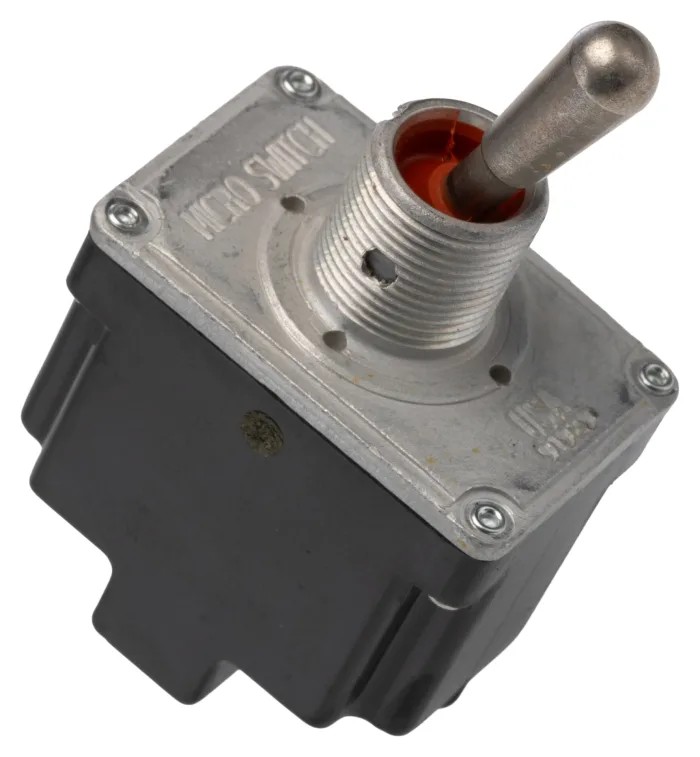

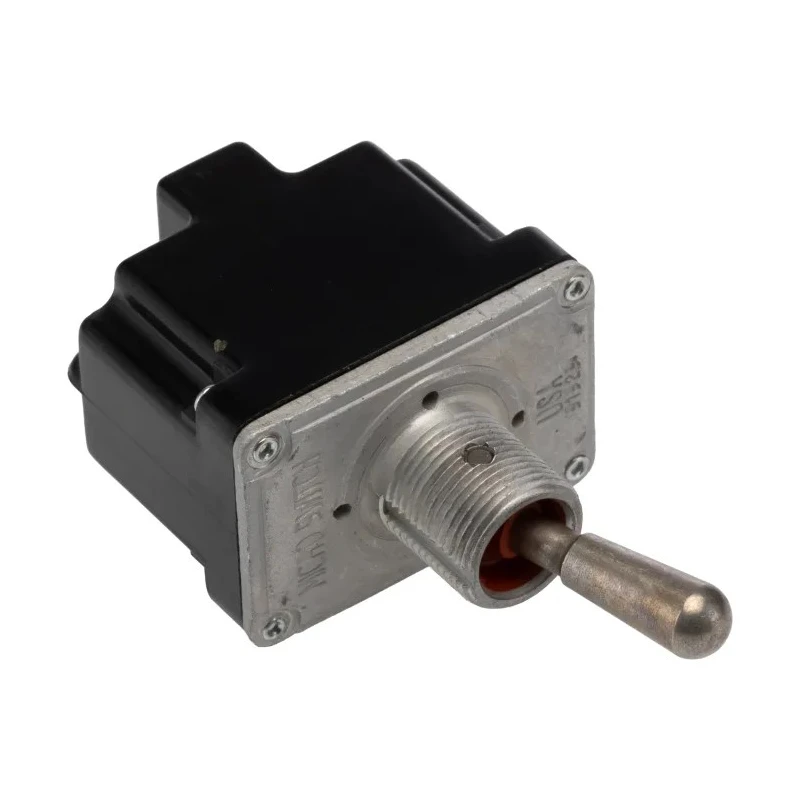

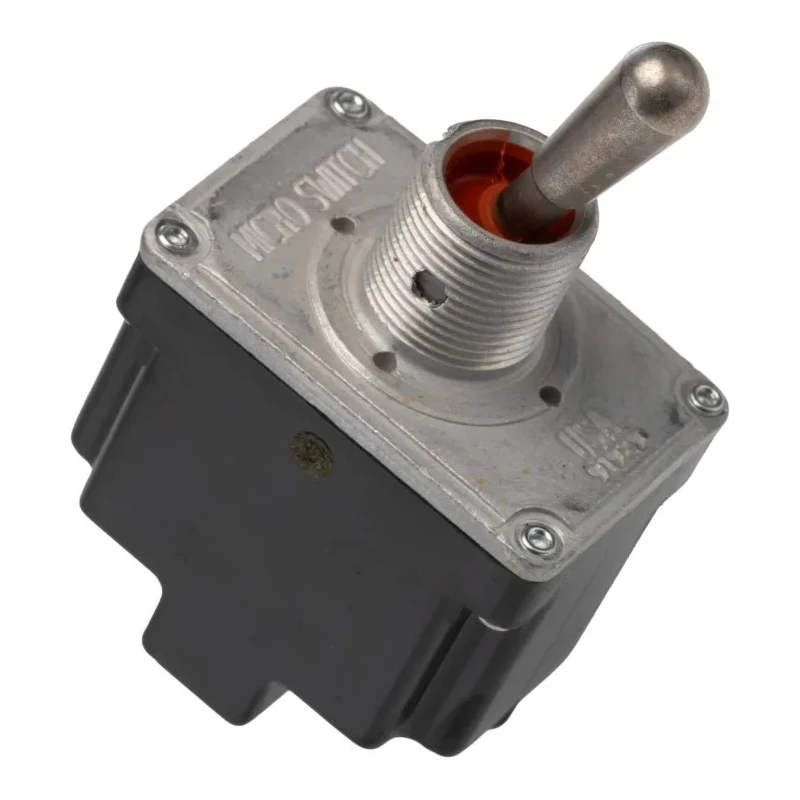

Honeywell Technologies Toggle Switch, Panel Mount, On-Off-On, DPDT, Screw Terminal, 277 V AC 2TL1-1

Honeywell Technologies 2TL1-1 toggle switch is a robust panel-mounted industrial component designed for reliable manual control of electrical circuits in commercial and industrial equipment.

This toggle switch features a double-pole double-throw (DPDT) contact configuration enabling it to switch two separate circuits simultaneously with an on-off-on switch operation. The device mounts securely to panels through a 12.4 mm cutout and uses a bushing mount method for a flush and stable installation.

The actuator has a length of 17 mm providing tactile feedback and ease of use even when wearing gloves. The switch supports screw terminal wiring ensuring solid, maintainable electrical connections suitable for field servicing.

Rated for a maximum contact current of 15A and operational voltage up to 277V AC, this toggle switch is appropriate for high-voltage control circuit applications. It operates across a wide ambient temperature range from −65°C to 71°C, making it fit for cold storage environments and warm industrial machinery rooms.

The compact physical dimensions of 33.5 mm width, 26.7 mm height, and 22 mm length make it suitable for integration into control panels where space-saving is critical. This product holds CE, UL, and CSA certifications, assuring compliance with safety standards required in professional and regulated industrial systems.

Common applications include dual-circuit control in industrial machinery, switching alternate power sources, motor control circuits with off-centre positions, test rigs requiring frequent toggling, and retrofitting in existing control enclosures.

The switch supports dual-pole double-throw operation for two separate circuits. Screw terminal connectors enable secure wiring attachment and easy maintenance. Panel installation requires a 12.4 mm cutout and secures with a bushing for a flush fit.

The 17 mm actuator length allows easy manual switching even with gloves. Rated for 15A contact current and 277V AC maximum operating voltage. Operating temperature range from -65°C to 71°C supports harsh industrial environments.

Dimensions: 33.5 mm width, 26.7 mm height, 22 mm length ensure compact mounting. Meets recognized safety standards including CE, UL, and CSA approvals. Suitable for control panels, motor control applications and test rigs needing frequent manual switching.
