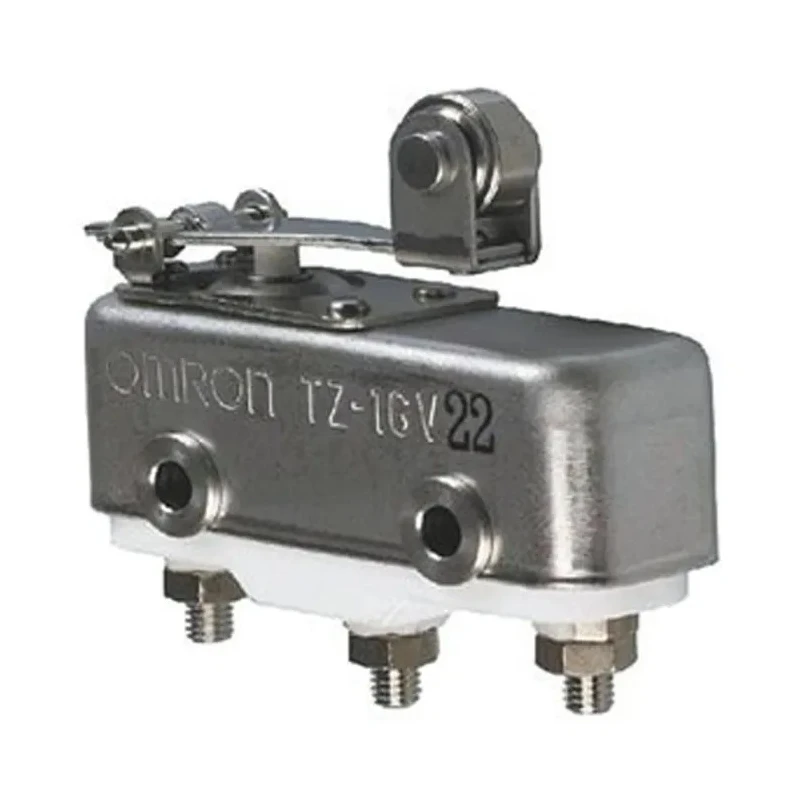

Omron TZ Series Roller Lever Limit Switch, SPDT, IP00, Ceramic Housing, 250V AC TZ-1GV22
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Operating Temperature Range | -65 to +400 °C (with no icing) |
| Length | 49.2mm |
| Model | TZ-1GV22 |
| Depth | 17.4mm |
| IP Rating | IP00 |
| Width | 21.8mm |
| Housing Material | Ceramic |
| Series | TZ |
| Maximum Operating Temperature | 400°C |
| Mounting Orientation | Front |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Contact Rating | 1A at 250 Vac |
| Contact Type | Snap Action |
| Minimum Operating Temperature | -65°C |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Operating Force | 2.35N |
| Mechanical Life | 100000Operations |
| Switching AC Voltage | 250V ac |
| Mechanical Service Life | 100,000 operations minimum |
| Electrical service life | 50,000 operations minimum |
Key Features
- The switch features a roller lever actuator type for precise operation.
- It has an IP00 ingress protection rating suitable for controlled environments.
- The contact configuration is SPDT with snap action contacts for fast switching.
- Constructed with ceramic housing for exceptional heat resistance and durability.
- Suitable for switching AC voltage up to 250V with a contact rating of 1A.
- Mechanical life expectancy is rated at a minimum of 100,000 operations.
- Operating temperature ranges from -65°C to +400°C, accommodating harsh industrial environments.
- Terminal connections are screw type for secure electrical contacts.
Product Description
Omron TZ-1GV22 Roller Lever Limit Switch is engineered to perform reliably in industrial and automation applications requiring high temperature tolerance and precise switching capability.
This limit switch employs a roller lever actuator with SPDT snap action contacts housed in a durable ceramic casing, making it ideal for environments with ambient temperatures reaching up to 400°C. Its IP00 rating indicates suitability for protected indoor settings.
The device supports switching AC voltages up to 250V with a contact rating of 1 ampere, providing dependable electrical performance. The mechanical life exceeds 100,000 operations ensuring long-term service reliability under demanding conditions.
Featuring a compact form factor with dimensions approximately 49.2mm in length, 21.8mm in width, and 17.4mm in depth, this limit switch is designed for front mounting installation, simplifying integration into systems.
Additional benefits include a cobalt-alloy spring and special-alloy contacts to maintain stable operation and high contact reliability at elevated temperatures. The ceramic housing further enhances heat resistance while ensuring electrical insulation.
Common industrial applications include use in manufacturing automation, process control systems, HVAC equipment, and other machinery requiring precise position detection and limit sensing.
The switch offers a roller lever actuator for accurate mechanical triggering. SPDT contact configuration provides versatile switching options. Ceramic housing for high temperature and electrical insulation. Durable construction with screw-type terminals for reliable wiring.
Mechanical life rated for 100,000 operations minimum ensures longevity. Operating temperature range from -65°C to +400°C suits harsh environments. Compact size for easy mounting and integration. Suitable for AC voltage switching up to 250V at 1 amp rating.
Choose Omron Limit Switches for trusted industrial-grade performance and reliability. Browse the Electronics & Electricals category for more high-quality switch components and automation products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this limit switch is from -65°C to +400°C, making it suitable for harsh industrial environments without icing.
This model features a Single Pole Double Throw (SPDT) contact configuration with snap action contacts for fast switching.
It is designed to switch AC voltages up to 250V with a contact rating of 1 ampere.
The switch utilizes a roller lever actuator type for precise operation.
This model has dimensions of approximately 49.2mm in length, 21.8mm in width, and 17.4mm in depth.
The mechanical life expectancy is rated at a minimum of 100,000 operations, ensuring long-term service reliability.
It is designed for front mounting installation, simplifying integration into systems.
The housing of this limit switch is constructed from ceramic, which provides exceptional heat resistance and electrical insulation.
It features screw-type terminals for secure electrical connections.
The switch has an IP00 ingress protection rating, indicating it is suitable for controlled indoor environments.
Common applications include manufacturing automation, process control systems, HVAC equipment, and other machinery requiring precise position detection and limit sensing.
This limit switch complies with RoHS standards, ensuring it meets environmental regulations.
