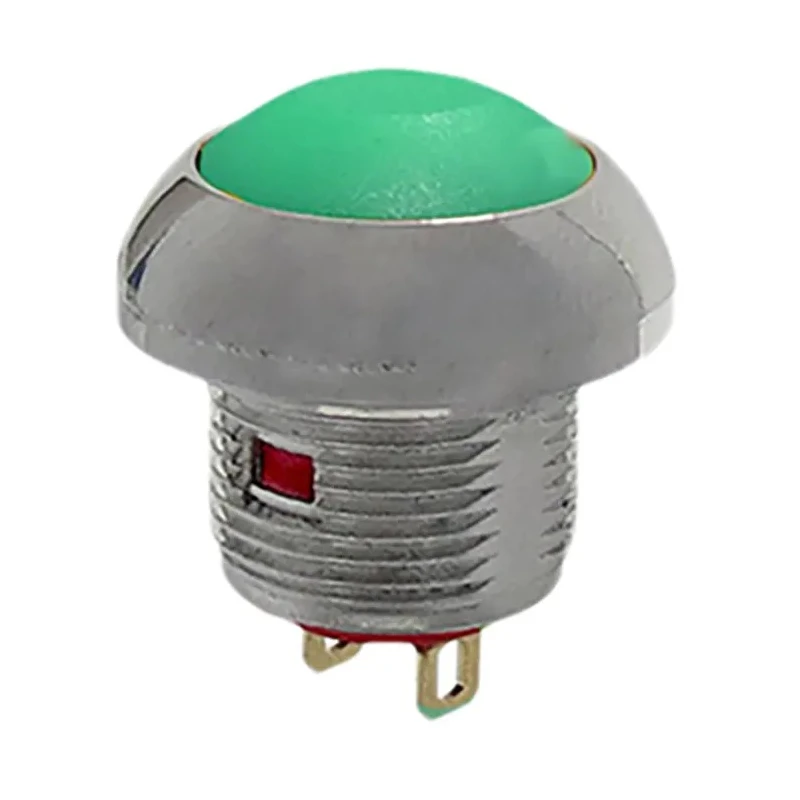

RS PRO Miniature Push Button Switch Momentary Panel Mount 13.6 mm Cutout SPST Green LED IP67 250V 891-9848
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 891-9848 |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Switch Configuration | 1P |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 13.6 mm |
| Terminal type | Solder Lug |
| Standards/Approvals | IEC 60629 2001, PB Lead-Free, RoHS Compliant |
| LED Colour | Green |
| Switch Operation | Momentary |
| Actuator Colour | Green |
| Contact DC Voltage | 250V |
| Actuator Style | Cap |
| Switch Contact Current | 200mA |
| Operating Force | 2N-5N max |
| Mechanical Life | 1,000,000 cycles min (without load) |
| Contact AC Voltage | 250V ac |
| Electrical Life | 500,000 make-and-break cycles at full load |
| Panel cut out | 13.6mm |
| Contact terminals | Gold over silver plated |
Key Features
- The switch features a momentary, single pole single throw operation.
- It has a robust IP67 rating ensuring protection against water and dust ingress.
- Designed for panel mounting with a 13.6 mm diameter cutout for easy installation.
- Contact terminals are gold over silver plated to ensure reliable conductivity.
- Operates within a temperature range of -30°C to 85°C for versatile environmental applications.
- It supports AC and DC voltages up to 250 V, suitable for a wide range of electrical applications.
- Mechanical and electrical life cycles guarantee long-lasting performance with up to 1,000,000 mechanical cycles.
- Operating force range of 2N to 5N provides tactile feedback for precise control.
Product Description
RS PRO 891-9848 Miniature Push Button Switch is a momentary panel mount switch designed for reliable and durable operation in various industrial and electrical applications. This compact and robust switch features a 13.6 mm cutout size, SPST (single pole single throw) contact configuration, and a green LED actuator cap for visual indication.
The switch is rated IP67 on the upper side, providing excellent ingress protection against dust and water, making it suitable for use in harsh environmental conditions. It operates within a temperature range from -30°C to 85°C, allowing flexible deployment in many industrial, electrical control, and automation systems.
Designed with gold over silver-plated contact terminals, it ensures excellent conductivity and reduces oxidation for long-term reliability. The electrical life is rated at 500,000 make-and-break cycles at full load, while the mechanical life reaches 1,000,000 cycles without load, delivering dependable performance over extended periods.
The actuator requires an operating force between 2N and 5N, providing a tactile momentary action for precise user input. The panel mount switch includes necessary components such as an M12 nut, locking washer, and splash-proof O-ring for secure installation and sealing.
This miniature push button switch is ideal for industrial control panels, laboratory equipment, automation systems, electrical distribution boards, and commercial machinery requiring dependable pushbutton control with visual indication. The green LED actuator enhances status visibility.
The switch provides momentary on/off operation for control circuits. Robust IP67 protection against dust and water ingress. Gold over silver plated terminals for reliable electrical contact. Wide operating temperature range from -30°C up to 85°C.
High electrical and mechanical endurance with long life cycle ratings. Panel mount design with included mounting accessories for easy installation. LED illuminated green actuator cap enhances user interface feedback. Explore more Push Button Switches and electrical components in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout size for this model is 13.6 mm, designed for panel mounting.
This switch has an IP67 rating, providing protection against dust and water ingress.
It operates within a temperature range of -30°C to 85°C, suitable for various environmental conditions.
This model features a single pole single throw (SPST) configuration for its switch operation.
The mechanical life of this switch is rated for a minimum of 1,000,000 cycles without load.
It has an electrical life rating of 500,000 make-and-break cycles at full load.
The operating force for this switch ranges from 2N to 5N, providing tactile feedback during operation.
It features gold over silver plated contact terminals to ensure reliable conductivity.
The switch includes an M12 nut, locking washer, and splash-proof O-ring for secure installation and sealing.
It complies with IEC 60629 2001, is PB Lead-Free, and is RoHS Compliant.
This switch is ideal for industrial control panels, laboratory equipment, automation systems, and electrical distribution boards.
The actuator style is a cap, and it features a green actuator color for visual indication.
