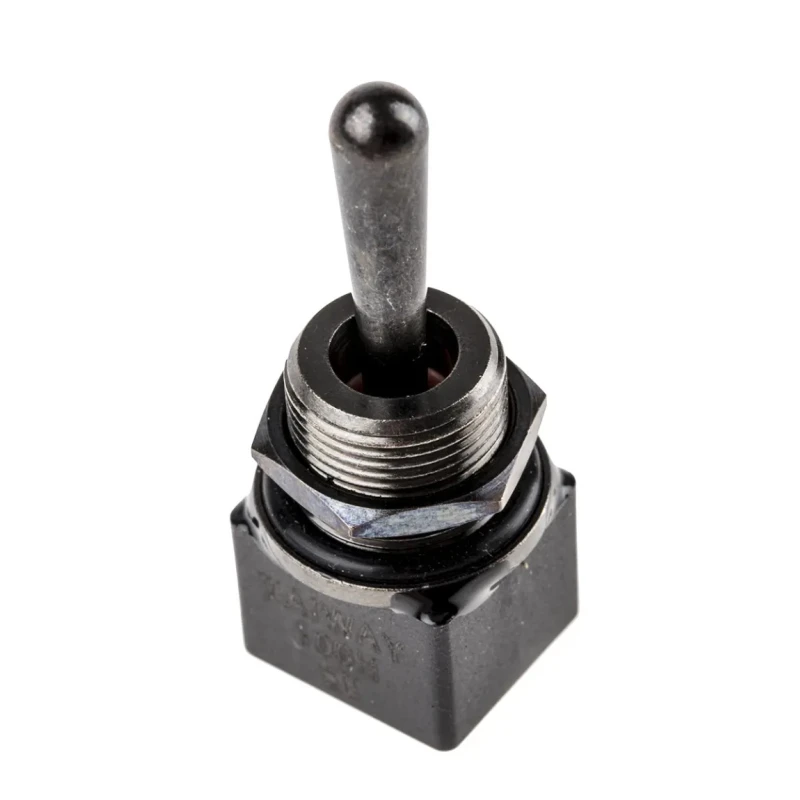

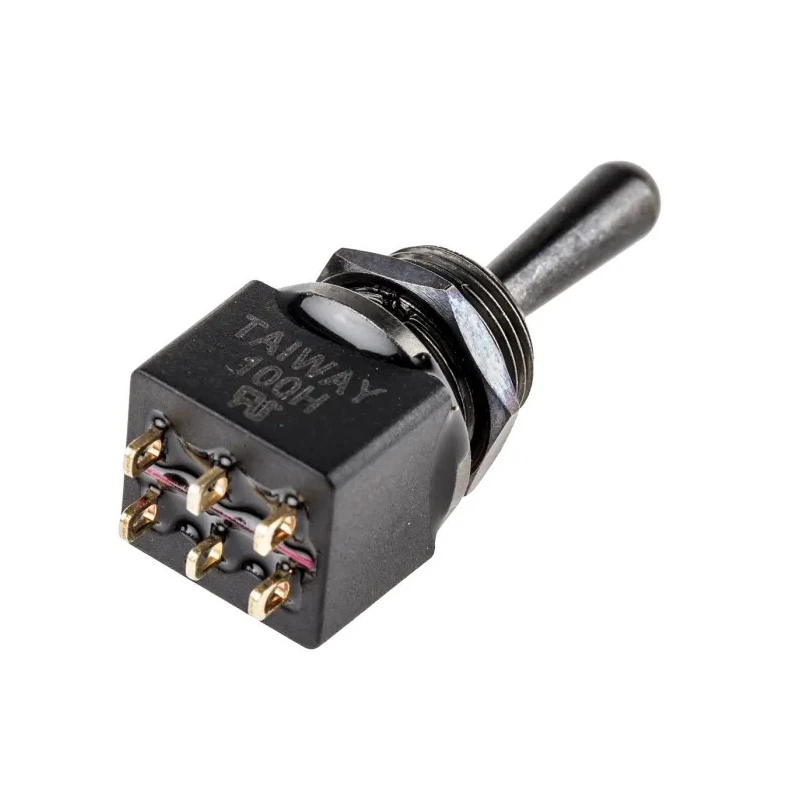

RS PRO Toggle Switch PCB Mount On-On-On DPDT 5A 28V dc 250V ac Brass Actuator 820-0520
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Height | 40.2mm |
| Length | 16mm |
| Model | 820-0520 |
| IP Rating | IP67 |
| Width | 14.48mm |
| Mount Type | PCB |
| Series | RS PRO |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Switch Configuration | On-On-(On) |
| Minimum Operating Temperature | -30°C |
| Terminal type | Solder |
| Standards/Approvals | MIL-STD-202F |
| Switch Operation | On-On-On |
| Actuator Length | 18mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Mechanical Life | 50000Cycles |
| Contact AC Voltage | 250V ac |
| Actuator Material | Brass |
Key Features
- This toggle switch is designed for PCB mounting with solder terminals for secure electrical connection.
- Features a brass actuator with an 18mm length for reliable mechanical operation.
- The switch operation is On-On-On with a double-pole double-throw (DPDT) contact configuration.
- It offers a high IP67 rating, ensuring high resistance to dust and water ingress.
- Operates reliably between -30°C to 85°C, suitable for diverse environments.
- Rated for mechanical life of 50,000 cycles, ensuring durability in industrial use.
- The switch body dimensions are 40.2mm height, 16mm length, and 14.48mm width.
- Conforms to MIL-STD-202F standards for mechanical and environmental performance.
Product Description
RS PRO 820-0520 is a high-quality Toggle Switch designed for PCB mounting applications requiring On-On-On DPDT switch operation. It supports a contact current of 5A and is rated for both 28V dc and 250V ac, making it suitable for a wide range of industrial, electronic, and electrical equipment.
The toggle switch features a brass actuator measuring 18mm in length, offering excellent mechanical strength and durability. An IP67 rating ensures comprehensive protection against dust and water ingress, making it ideal for harsh environments and outdoor applications.
Designed for long-lasting performance, this switch is rated for 50,000 mechanical cycles and complies with MIL-STD-202F standards, ensuring resistance to environmental stresses. Operating temperature ranges from -30°C to 85°C enable use in diverse climatic conditions.
Its compact dimensions of 40.2mm height, 16mm length, and 14.48mm width make it suitable for integration into dense PCB layouts. The solder terminal mounting type facilitates reliable and secure electrical connections on the PCB.
This toggle switch is designed for PCB mounting with solder terminals for secure electrical connection. Features a brass actuator with an 18mm length for reliable mechanical operation. The switch operation is On-On-On with a double-pole double-throw (DPDT) contact configuration.
It offers a high IP67 rating, ensuring high resistance to dust and water ingress. Operates reliably between -30°C to 85°C, suitable for diverse environments. Rated for mechanical life of 50,000 cycles, ensuring durability in industrial use.
The switch body dimensions are 40.2mm height, 16mm length, and 14.48mm width. Conforms to MIL-STD-202F standards for mechanical and environmental performance. This product is manufactured in Taiwan, Province Of China, under the RS PRO series which assures quality and reliability for demanding industrial applications.
Common applications include industrial machinery, control panels, automation systems, automotive electronics, and other demanding electrical control environments. The toggle switch's high IP rating and mechanical endurance make it highly suitable for use in rugged and outdoor conditions.
Explore more from the RS PRO range in the Toggle Switch category on EnvMart for compatible and complementary electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a double-pole double-throw (DPDT) contact configuration, allowing for versatile switching capabilities.
The switch has dimensions of 40.2mm in height, 16mm in length, and 14.48mm in width, making it suitable for compact PCB layouts.
It operates reliably at a maximum temperature of 85°C, suitable for various environmental conditions.
This unit has an IP67 rating, providing excellent resistance to dust and water ingress, making it ideal for harsh environments.
The switch features solder terminals, ensuring secure and reliable electrical connections on the PCB.
It is rated for a mechanical life of 50,000 cycles, ensuring durability for industrial applications.
It supports a contact DC voltage of 28V and an AC voltage of 250V, making it versatile for various applications.
The actuator is made of brass and measures 18mm in length, providing reliable mechanical operation.
It conforms to MIL-STD-202F standards, which ensures its mechanical and environmental performance in demanding conditions.
The switch operates effectively at a minimum temperature of -30°C, suitable for cold environments.
Common applications include industrial machinery, control panels, automation systems, and automotive electronics, among others.
This toggle switch is manufactured by RS PRO and is produced in Taiwan.
