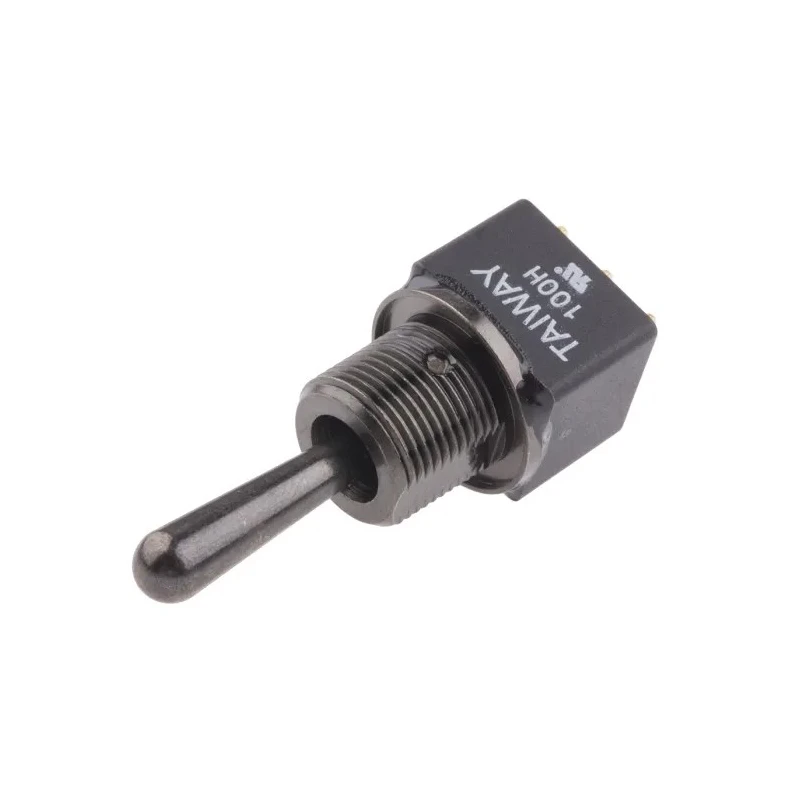

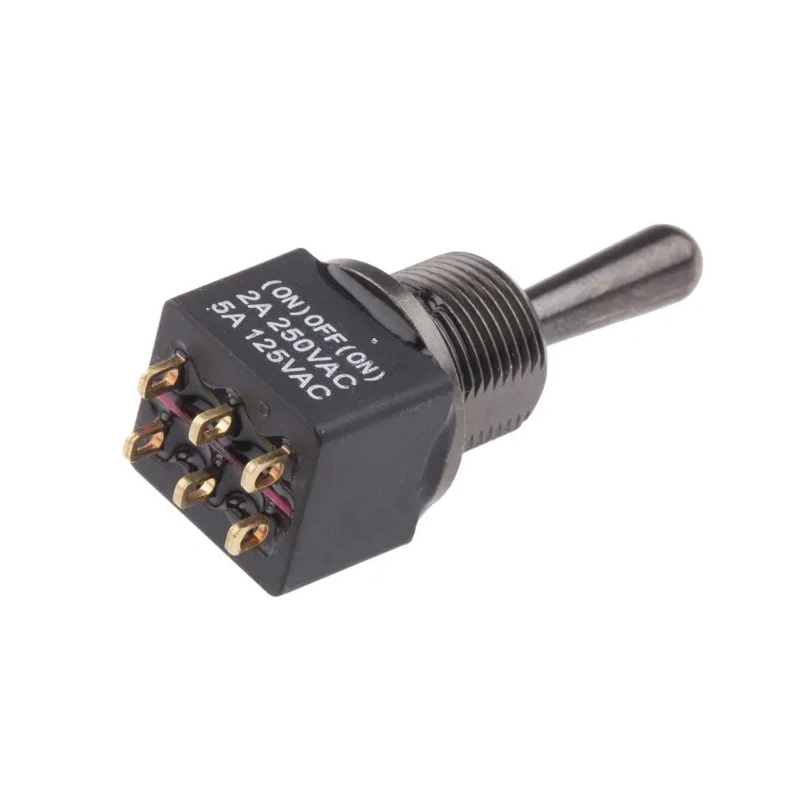

RS PRO Toggle Switch PCB Mount On-Off-On DPDT Brass Actuator IP67 Sealed 28V DC 250V AC 820-0510

RS PRO 820-0510 is a high-quality toggle switch designed for PCB mounting applications requiring reliable double pole double throw (DPDT) switching with an On-Off-On operation. The switch operates with a contact rating of 5 Amperes at 28 Volts DC and 250 Volts AC, making it suitable for both low-level signal switching and moderate power applications.

This model features a fully sealed and ruggedized design with IP67 rating, incorporating a double shell case and twin O-ring seals at the front and rear for complete protection against dust, moisture, and flowing water. This makes it ideal for industrial, electrical, automation, and instrumentation uses in challenging environments.

The brass actuator measures 18mm in length, providing tactile feedback and durability over its extensive mechanical life of 50,000 cycles. The compact physical dimensions (40.2mm height, 16mm length, and 14.48mm width) allow efficient integration into PCB assemblies without compromising performance.

The switch complies with MIL-STD-202F military standards, guaranteeing robust mechanical strength and electrical insulation. It is rated to operate reliably between -30°C and +85°C, making it suitable for diverse environmental conditions found in manufacturing, automation, and instrumentation sectors.

This toggle switch features a double shell case with two O-ring frontal seals for waterproof operation. Capable of handling 5A contact current at 28V DC and 250V AC voltages. Equipped with solder terminals suitable for PCB mounting to ensure secure connections.

Mechanical life rated at 50,000 cycles providing long-term reliability. Operates within a wide temperature range from -30°C to 85°C, suitable for harsh environments. Compact dimensions of 40.2mm height, 16mm length, and 14.48mm width optimize PCB space utilization.

Conforms to MIL-STD-202F standards ensuring high mechanical strength and electrical insulation. Actuator length is 18mm made from durable brass material for enhanced durability.

Manufactured in Taiwan, Province Of China, the RS PRO 820-0510 toggle switch is an excellent choice for applications in industrial automation, laboratory equipment, HVAC systems, manufacturing controls, and water treatment plants. Its sealed construction ensures reliable operation even in wet or dusty conditions.
