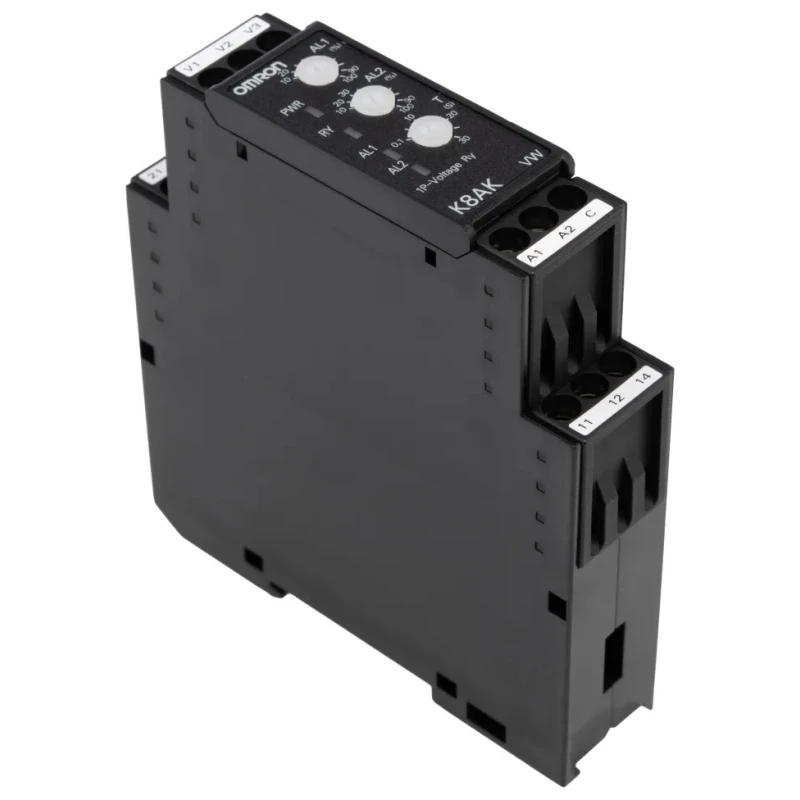

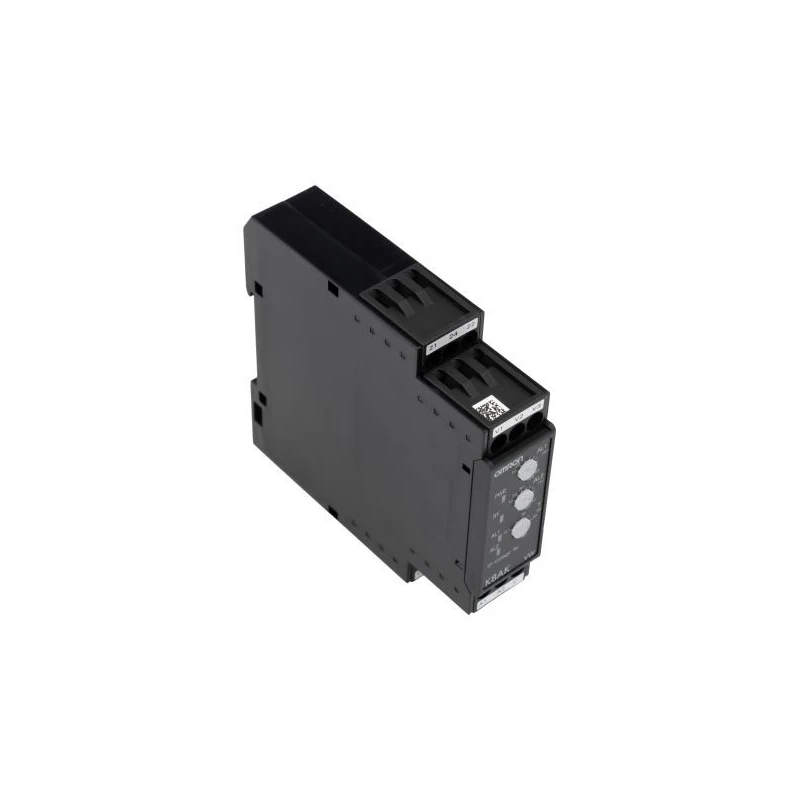

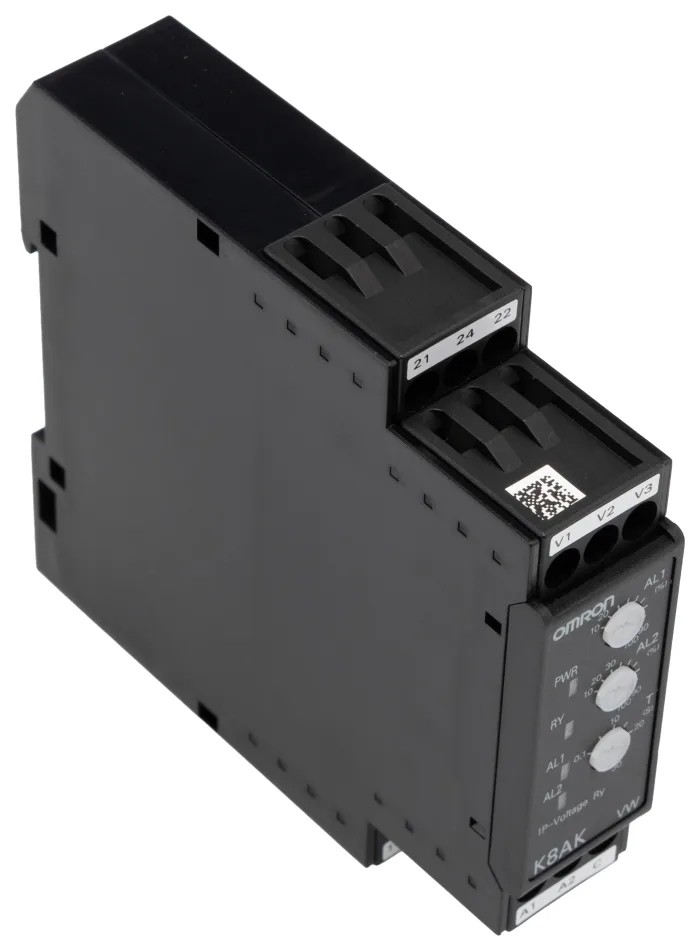

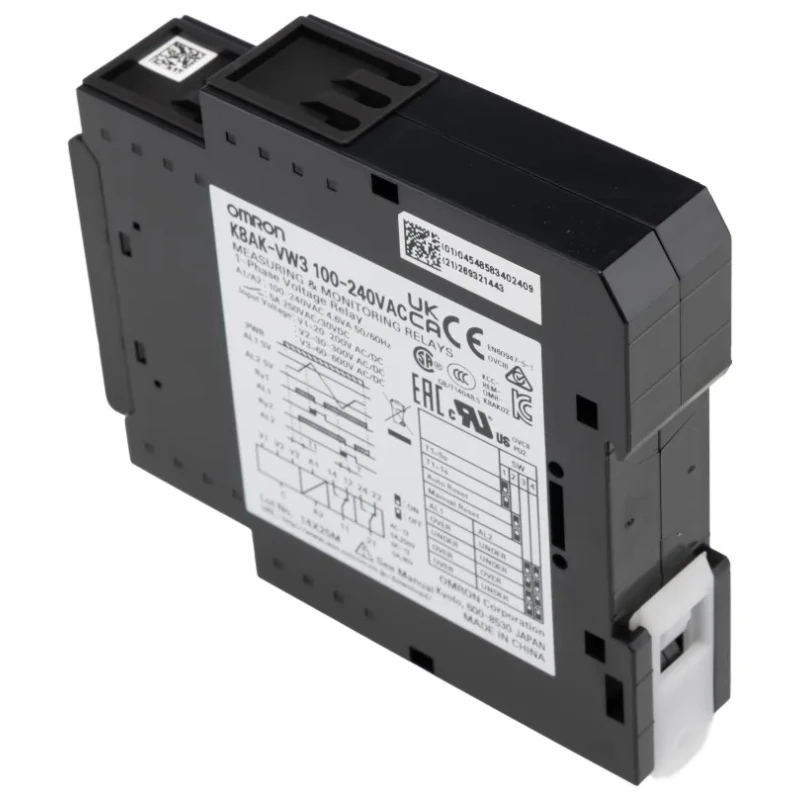

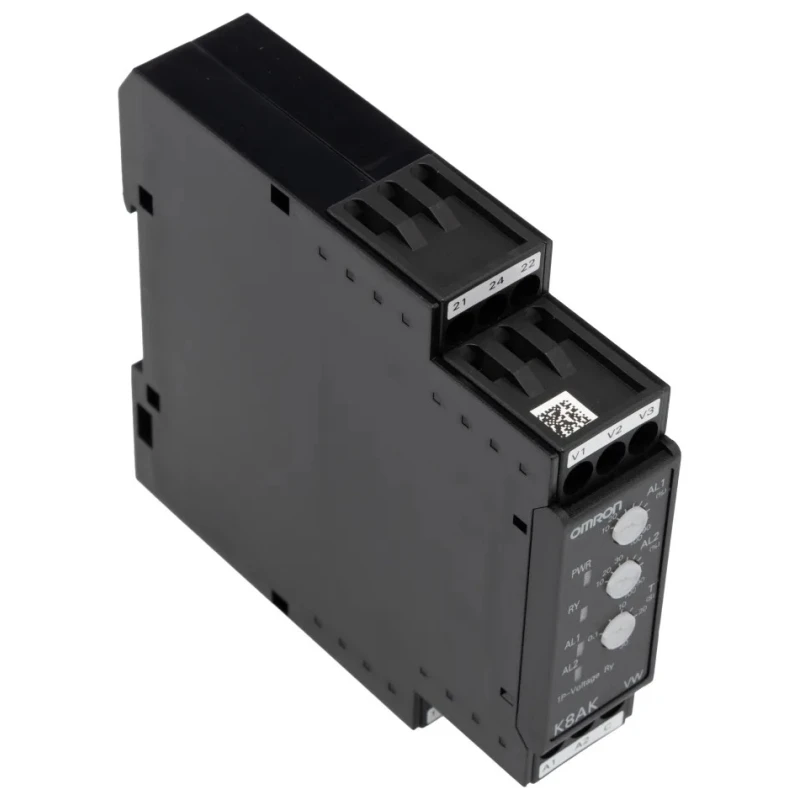

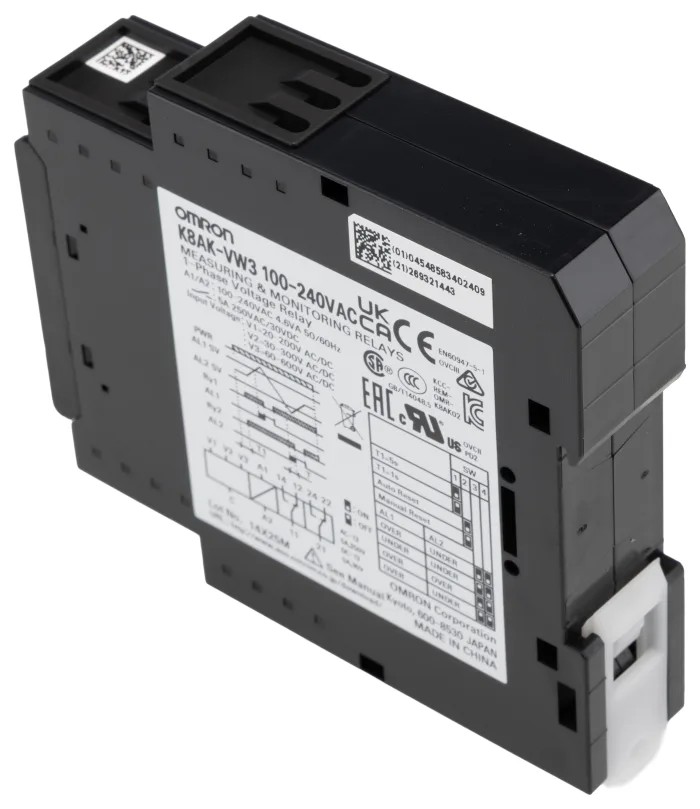

Omron Monitoring Relay 1 Phase 2 x SPDT Contact, DIN Rail Mount, 24 V DC 100-240 V AC K8AK-VW3 100-240VAC

Omron K8AK-VW3 100-240VAC is a high-performance monitoring relay designed for 1 phase electrical systems that require precise voltage monitoring and protection. It features a 2 x SPDT contact configuration and is intended for DIN rail mounting, making it suitable for streamlined integration in industrial electrical panels.

This relay supports dual supply voltages of 24 V DC and 100-240 V AC, enabling flexibility in various electrical environments. It monitors both overvoltage and undervoltage conditions simultaneously to help protect sensitive industrial equipment from voltage anomalies.

The device includes LED indicators for instant visual feedback on input signals and alarm states, facilitating quick diagnostics by operators. Its voltage sensing range extends from 20 V to 600 V AC/DC, making it adaptable for diverse voltage monitoring requirements.

Operation frequency support ranges between 40 Hz and 500 Hz, accommodating a wide array of industrial power systems. Adjustable time delay settings from 0.1 to 30 seconds allow users to customize response times according to system needs.

With a compact footprint measuring 22.5 mm in length, 100 mm in width, and 90 mm in height, the relay supports easy installation on DIN rails within control cabinets. It features screw terminal connections for secure and reliable wiring.

Monitors overvoltage and undervoltage simultaneously for comprehensive voltage protection. Two SPDT output relays rated at 5A ensure dependable signaling capabilities. LED indicators provide clear, real-time status information for input and alarms.

Wide voltage sensing range from 20 V to 600 V AC/DC covers varied industrial applications. Adjustable time delay from 0.1 to 30 seconds for flexible operation timing. Supports supply voltages of 24 V DC and 100-240 V AC for compatibility.

Designed for DIN rail mounting with a compact form factor. Suitable for manufacturing, automation, and electrical safety monitoring applications.

This Monitoring Relay complies with RoHS, EN 61326-1, and UL 61010-1 standards, ensuring industrial safety and quality. Its application spans manufacturing facilities, automation systems, and electrical infrastructures requiring reliable voltage monitoring solutions.
