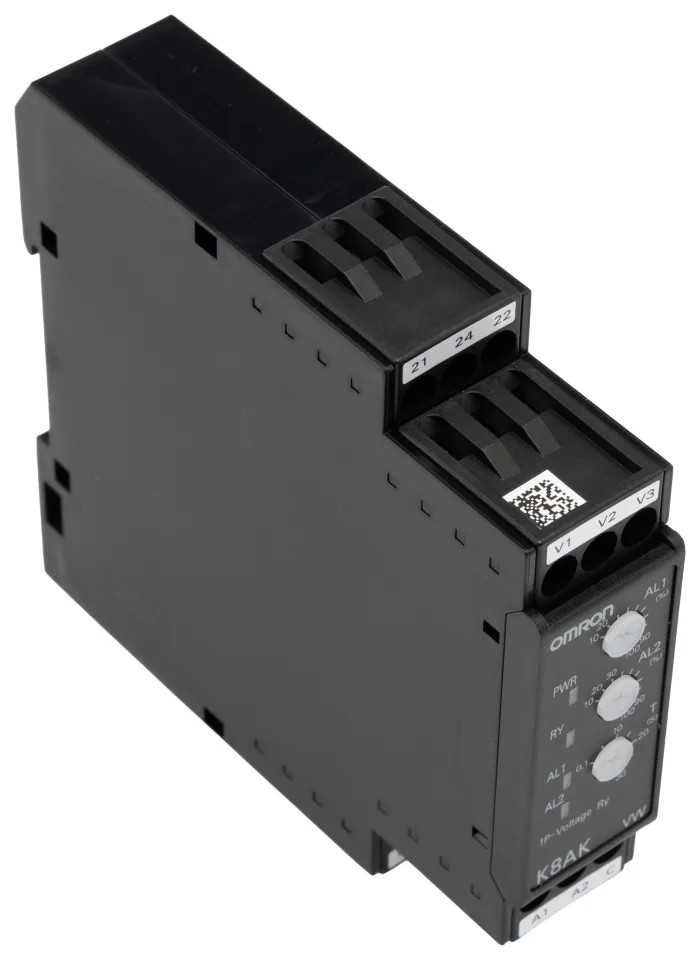

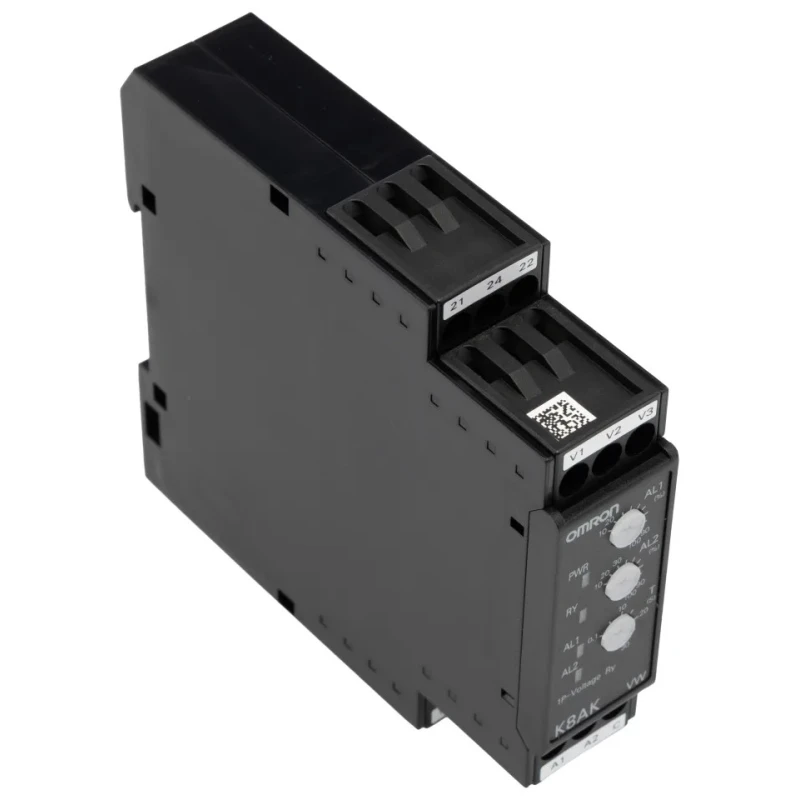

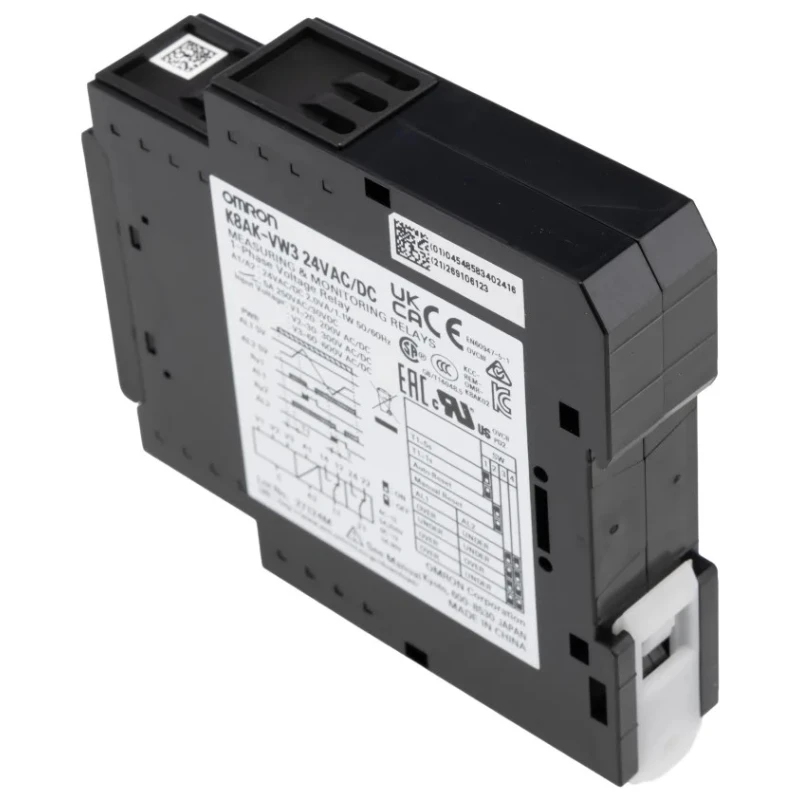

Omron Monitoring Relay 1 Phase 2 x SPDT DIN Rail Mount 100V AC 240V AC 24V DC K8AK-VW3 24VAC/DC

Omron K8AK-VW3 24VAC/DC monitoring relay is designed for precise and reliable voltage supervision in industrial electrical systems. Featuring a single electrical phase and dual SPDT contacts, this relay ensures effective monitoring of overvoltage and undervoltage conditions for sensitive control equipment.

The compact DIN Rail mount form factor with dimensions of 22.5mm width, 100mm length, and 90mm height facilitates easy integration into electrical panels and control cabinets. Screw type terminals provide strong and safe wiring connections.

Suitable for a supply voltage of 24 V DC or 100 to 240 V AC, it supports a maximum switching voltage of 250 V AC with a contact current rating of 5A, making it ideal for a wide range of industrial automation and process control applications.

Operating reliably across a temperature range from -20°C to +60°C, the relay is protected by an IP20 rated enclosure that offers resistance against solid foreign objects. LED indicators clearly show output relay status, improving operational transparency.

The K8AK-VW3 series complies with international safety and environmental standards RoHS, UL 61010-1, and EN 61326-1, underscoring its suitability for global industrial use. Supports simultaneous detection of overvoltage and undervoltage conditions.

Compact DIN Rail mount design measuring 22.5mm x 100mm x 90mm. Wide operating voltage range suitable for 24 V DC, 100 V AC, and 240 V AC supplies. Equipped with screw terminals for secure electrical connections. Operates safely within an ambient temperature range of -20°C to +60°C.

IP20 rated housing for protection against solid objects. Contact current rating of 5A supports industrial control loads. LED indicators provide clear status feedback on relay outputs. Meets RoHS compliance and international standards including UL 61010-1 and EN 61326-1.

This monitoring relay is widely used in industrial facilities for voltage regulation, process control systems for ensuring electrical stability, and electrical panels requiring protection against voltage fluctuations. It is well-suited for commercial and manufacturing environments that demand precise voltage monitoring and control.
