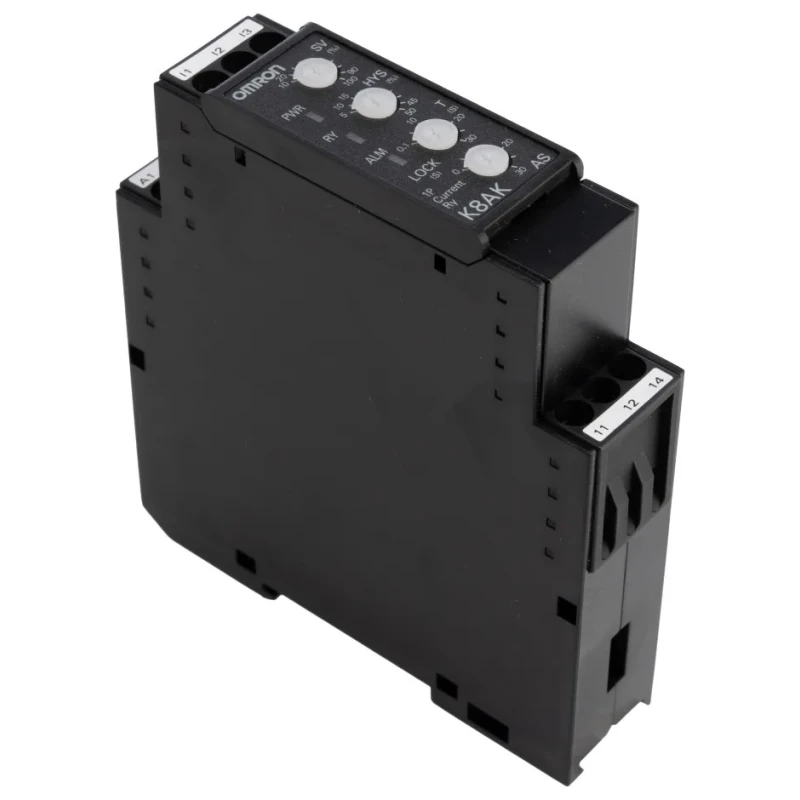

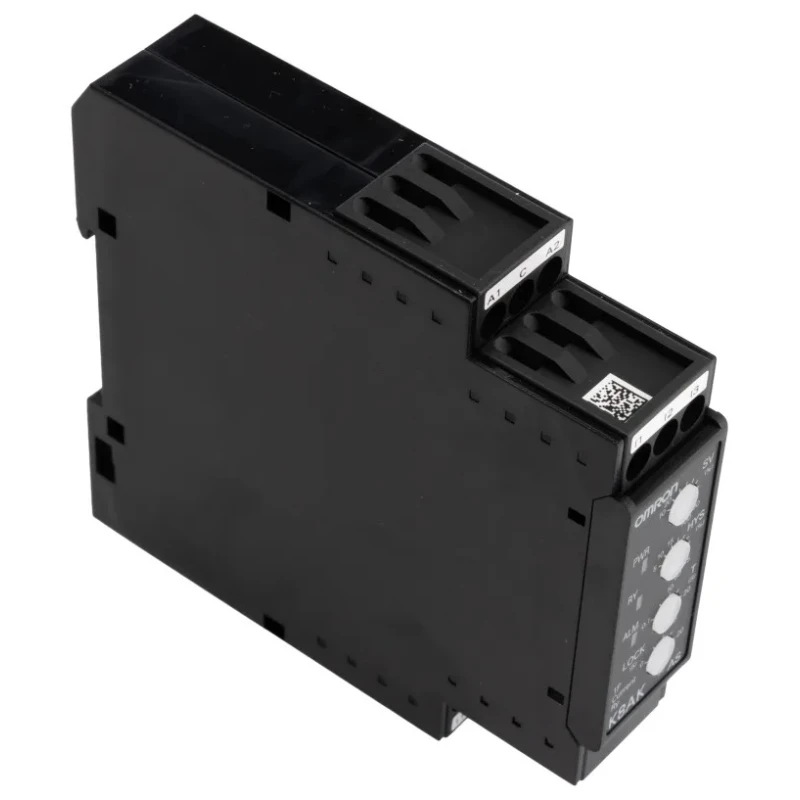

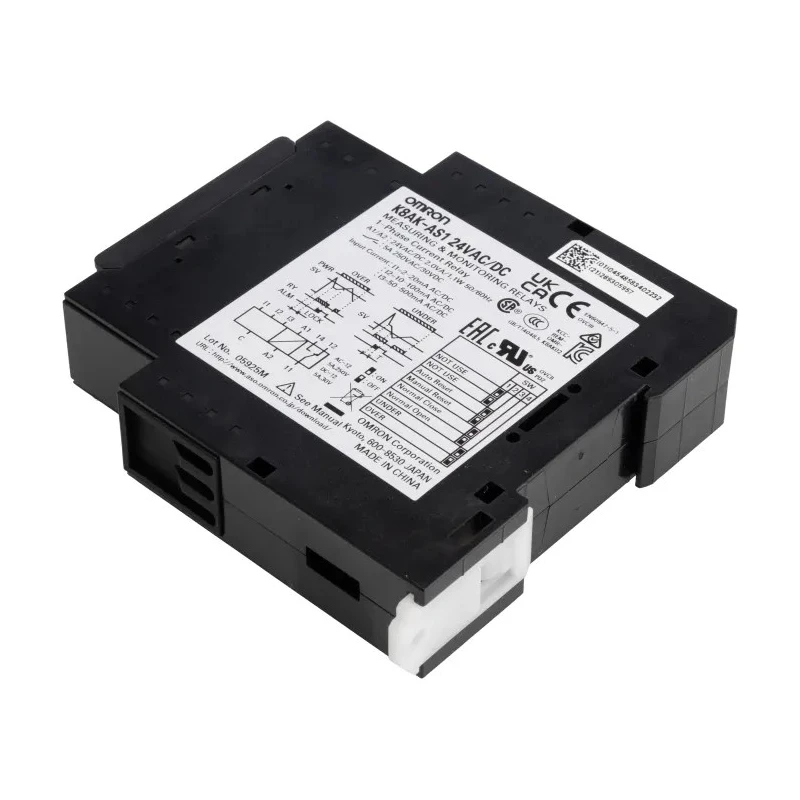

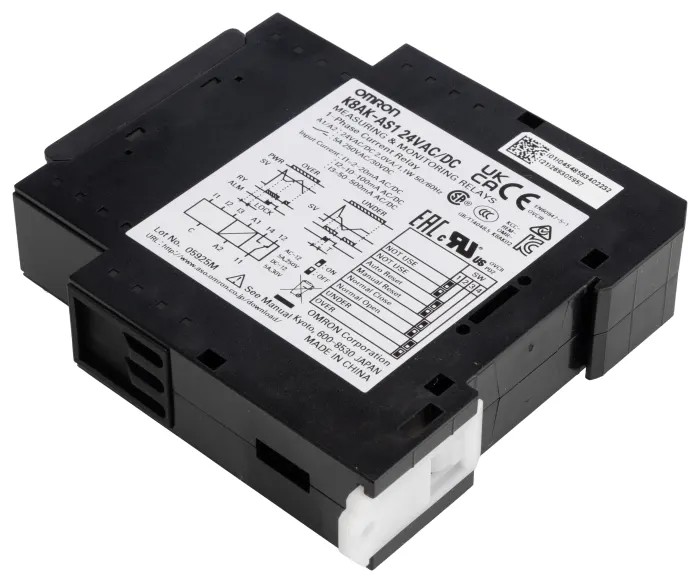

Omron Monitoring Relay 1 Phase SPDT DIN Rail Mount 24 V dc/ac Sensitivity 2mA to 500mA K8AK-AS1 24VAC/DC

Free Delivery in India | Lowest Global Shipping Charges

Omron Monitoring Relay 1 Phase SPDT DIN Rail Mount 24 V dc/ac Sensitivity 2mA to 500mA K8AK-AS1 24VAC/DC

Name: Omron Monitoring Relay 1 Phase SPDT DIN Rail Mount 24 V dc/ac Sensitivity 2mA to 500mA K8AK-AS1 24VAC/DC
Brand: Omron
SKU: 247959
Price: 170.57 USD
Availability: InStock



Category Monitoring Relay Brand Omron Condition New

Specifications

Country of Origin	India
Brand	Omron
Height	90mm
Length	100mm
Model	K8AK-AS1 24VAC/DC
Width	22.5mm
Mount Type	DIN Rail
Series	K8AK-AS
Maximum Operating Temperature	60°C
Contact Configuration	SPDT
Minimum Operating Temperature	+60°C
Terminal type	Screw
Electrical Phase	1
Standards/Approvals	CE
Supply DC Voltage	24 V dc
Supply AC Voltage	24V ac
Minimum Current Sensed	2mA
Maximum Current Sensed	500mA
Current Sensitivity	Overcurrent, Undercurrent
Relay Contact Current	500mA

Key Features

Monitors overcurrent and undercurrent conditions to safeguard electrical systems.
Features DIN rail mounting for convenient installation in control panels.
Detects currents ranging from 2mA minimum to 500mA maximum with high sensitivity.
Supports both 24 V dc and 24 V ac supply voltages for flexible use.
Includes LED indicators for clear status and alarm notifications.
Offers manual and automatic reset options to suit operational needs.
Isolated inputs enhance safety during electrical monitoring.
Compact dimensions of 100mm length, 90mm height, and 22.5mm width facilitate easy integration.

Product Description

Omron K8AK-AS1 24VAC/DC Monitoring Relay is designed for efficient monitoring of electrical currents in 1-phase systems, featuring a SPDT (Single Pole Double Throw) contact configuration. This device is engineered for installation on DIN rails, making it ideal for integration into industrial automation and electrical control systems.

The relay enables precise sensing of current levels from 2mA up to 500mA, detecting both overcurrent and undercurrent conditions to protect machinery and electrical equipment from faults. Powered by either 24 V dc or 24 V ac supply, it provides wide application compatibility.

LED indicators on the relay provide immediate visual feedback on the output status and alarm conditions, assisting in quick diagnostics and maintenance. The relay supports manual and automatic reset functionalities, allowing customization based on operational requirements.

Safety is enhanced with input isolation from the power supply, minimizing electrical hazards. The device’s compact form factor - measuring 100mm in length, 90mm in height, and 22.5mm in width - facilitates installation in space-constrained environments.

Typical applications include current monitoring in mechanical and industrial equipment, integration with various commercially available current transformers, and installations requiring DIN rail-mounted relays. Standards such as EN 60947-5-1 and UL 508 compliance, along with CE marking, confirm its adherence to industrial safety and quality norms.

Omron K8AK-AS1 relay features startup lock settings configurable between 0 and 30 seconds to avoid false triggering during power-up. Recommended wiring uses solid wires up to 2.5mm² with insulated ferrules for twisted cables, ensuring reliable connections.

Monitors both overcurrent and undercurrent electrical conditions. Mounts on standard DIN rails for quick installation. Adjusts sensitivity to detect current between 2mA and 500mA. Supports dual supply voltage of 24 V dc and 24 V ac.

Equipped with LED indicators for operational status overview. Isolated input ensures enhanced safety. Manual and automatic reset capability for flexibility. Compact size compatible with standard electrical panels. Compliant with CE standards and EN 60947-5-1, UL 508 certifications.

Explore more monitoring and control solutions at EnvMart, your industrial and electrical component partner.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model can sense currents ranging from a minimum of 2mA to a maximum of 500mA, allowing it to monitor both overcurrent and undercurrent conditions.

The K8AK-AS1 supports dual supply voltages of 24 V dc and 24 V ac, providing flexibility for various applications.

It features a Single Pole Double Throw (SPDT) contact configuration, suitable for various control applications.

The relay measures 100mm in length, 90mm in height, and 22.5mm in width, making it compact for installation in control panels.

This model includes isolated inputs, which enhance safety by minimizing electrical hazards during monitoring.

It is designed for DIN rail mounting, facilitating easy installation in industrial control systems.

The K8AK-AS1 offers both manual and automatic reset options, allowing for customization based on operational needs.

The maximum operating temperature for the K8AK-AS1 is 60°C, ensuring it can function effectively in various environments.

This monitoring relay is compliant with CE standards, EN 60947-5-1, and UL 508 certifications, confirming its adherence to industrial safety norms.

It features screw terminals, which are suitable for secure connections in electrical installations.

This model is typically used for current monitoring in mechanical and industrial equipment, as well as in installations requiring DIN rail-mounted relays.

The minimum operating temperature for the K8AK-AS1 is +60°C, ensuring it operates effectively in various conditions.
