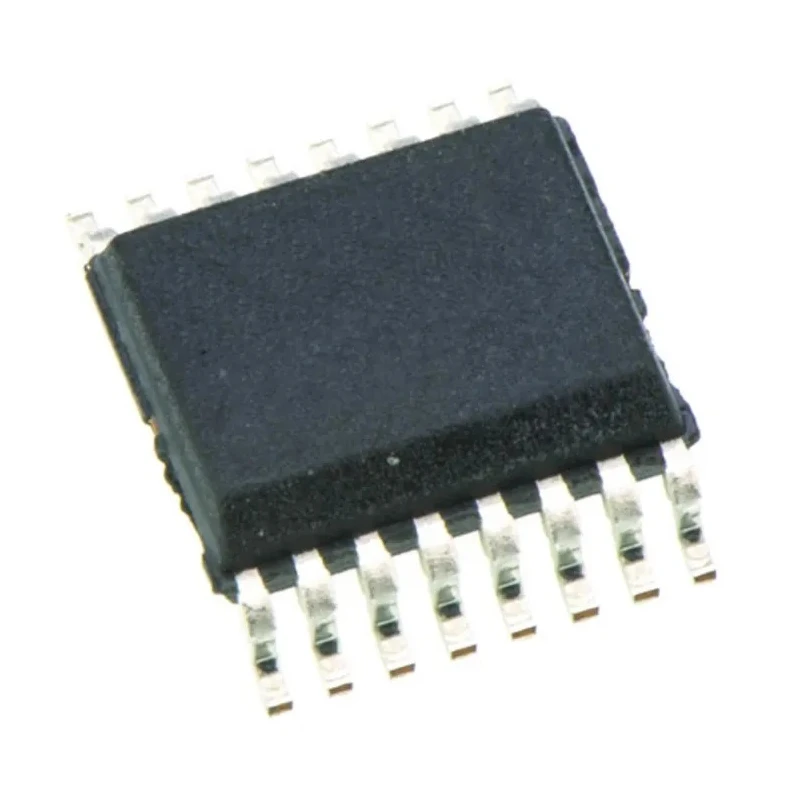

Texas Instruments Open Drain Output Temperature Sensor Surface Mount SMBus ±2°C 16-Pin SSOP AMC6821SDBQ
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±2°C |
| Brand | Texas Instruments |
| Height | 1.5mm |
| Length | 5mm |
| Model | AMC6821SDBQ |
| Width | 4mm |
| Mount Type | Surface |
| Output type | Open Drain |
| Maximum Operating Temperature | 125°C |
| Package Type | SSOP |
| Sub Type | Temperature Sensor |
| Minimum Operating Temperature | -40°C |
| Interface Type | SMBus |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| 3 Fan Control Modes | Auto Temperature Fan Mode, Software-RPM Mode, Software-DCY Mode |
Key Features
- Operates over a voltage range of 2.7V to 5.5V for flexible power supply options.
- Designed for surface mount applications with a compact SSOP package size of 5mm length, 4mm width, and 1.5mm height.
- Accurate temperature monitoring from -40°C up to 125°C for reliable performance in harsh environments.
- Ideal for systems requiring active cooling control such as PCs, telecommunications, DLP, and LCD projectors.
- Complies with RoHS standards ensuring environmental safety.
Product Description
Texas Instruments AMC6821SDBQ is a high-precision temperature sensor designed for surface mount applications. It features an open drain output and SMBus interface, ensuring effective communication in complex electronic systems. The device provides temperature accuracy of ±2°C within an operating range from -40°C to 125°C, making it suitable for industrial and commercial environments.
Powered by a supply voltage range of 2.7V to 5.5V, this sensor is housed in a compact 16-pin SSOP package measuring 5mm in length, 4mm in width, and 1.5mm in height, facilitating integration on densely packed circuit boards.
The AMC6821 offers advanced fan control with three operational modes: Auto Temperature Fan Mode, Software-RPM Mode, and Software-DCY Mode, allowing optimized thermal management in devices such as personal computers, telecommunications equipment, and projection systems.
Integrating this device enables active system cooling with noise reduction and power efficiency improvements. It is RoHS compliant, supporting environmentally sustainable manufacturing practices.
Package contents include the AMC6821 sensor in QSOP-16 form factor ready for surface mounting. Operates from 2.7V to 5.5V supply voltage for versatile application. Temperature accuracy of ±2°C ensures reliable monitoring.
Supports SMBus communication protocol for system integration. Compact SSOP package optimizes PCB space. Three fan control modes facilitate dynamic thermal management.
This sensor is commonly used in industrial, laboratory, HVAC, and manufacturing applications where precise temperature control and monitoring are essential. Explore more Temperature Sensors and control devices on EnvMart for your project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates within a temperature range of -40°C to 125°C, making it suitable for various industrial and commercial applications.
It operates over a supply voltage range of 2.7V to 5.5V, allowing for flexible power supply options.
The sensor has a compact size, measuring 5mm in length, 4mm in width, and 1.5mm in height, suitable for surface mount applications.
It features an open drain output, which is compatible with various electronic systems for effective communication.
The AMC6821SDBQ supports the SMBus communication protocol, facilitating integration into complex electronic systems.
The sensor is housed in a 16-pin SSOP package, designed for surface mounting on circuit boards.
Yes, it complies with RoHS standards, ensuring environmentally safe manufacturing practices.
It is commonly used in industrial, laboratory, HVAC, and manufacturing applications where precise temperature control and monitoring are essential.
The AMC6821SDBQ is manufactured in India.
This model features a pin count of 16, making it compatible with various circuit designs.
