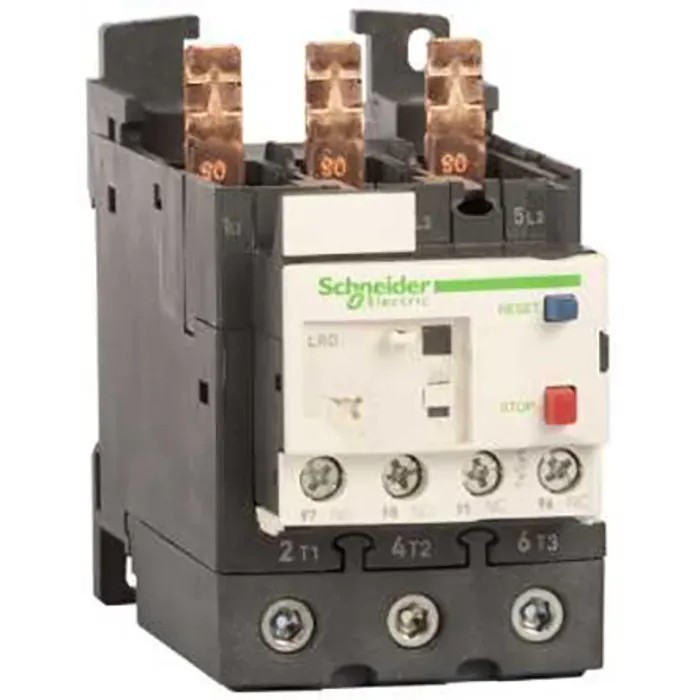

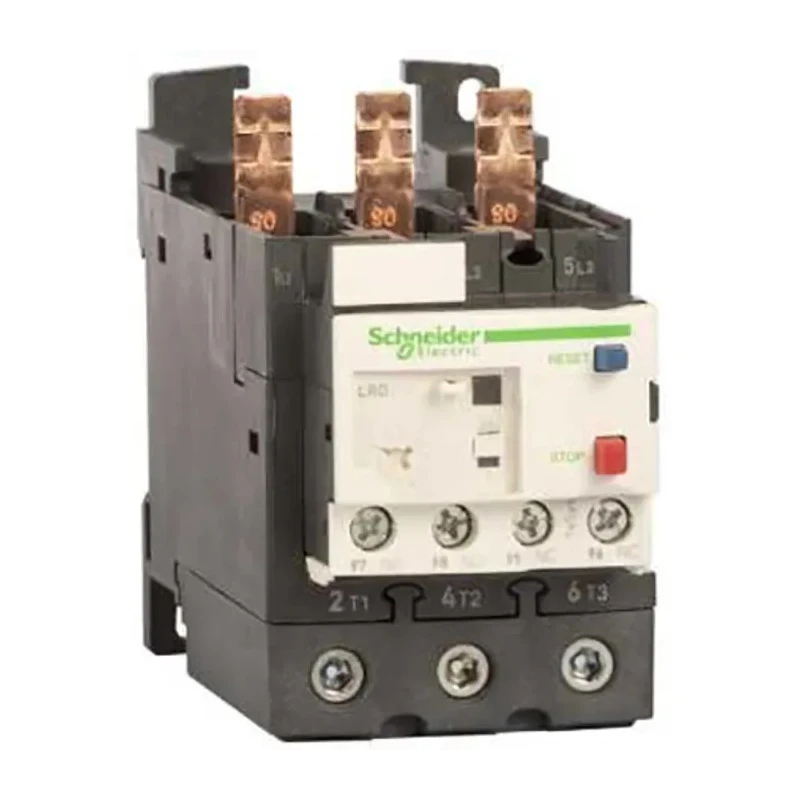

Schneider Electric LRD Thermal Overload Relay 65A Contact Rating Screw Terminal Push Button Reset LRD365L

Schneider Electric LRD365L Thermal Overload Relay is engineered for industrial, automation, and electrical applications where the protection of AC motors and circuits against overload and fault conditions is critical. This three-pole relay operates with a high contact current rating of 65A and can be used for monitoring phase failures, long starting times, and prolonged motor stalling situations.

The relay features screw terminals which ensure stable and reliable wiring connections. Its push button reset method allows for straightforward and quick manual resetting after a trip event. The adjustable relay setting dial enables fine-tuning to match motor protection requirements precisely.

Designed to endure a wide temperature range from -20°C to 60°C, this relay is suitable for harsh industrial environments. It incorporates an indicator for trip conditions and a sealable cover to protect the internal components from tampering and dust ingress.

With compact dimensions (123mm width, 55mm length, 70mm depth) and the flexibility to mount directly beneath compatible three-pole contactors or independently on DIN rails, installation is versatile and space-efficient. The relay also includes one normally open and one normally closed auxiliary contact for additional control circuit functionality.

The insulation voltage rating of 600V and withstand voltage of 6kV ensures superior electrical endurance. The LRD series relays are widely used in manufacturing, HVAC, water treatment, industrial automation, and commercial sectors to ensure safe and efficient motor operation.

Operates with a supply voltage up to 690V AC ensuring high compatibility. Features screw terminal type connections for secure wiring. Push button method enables manual reset for user convenience. Equipped with adjustable relay setting dial and trip indicator for operational status visibility.

Incorporates 1 Normally Open and 1 Normally Closed auxiliary contact. Built to operate in ambient temperature ranges from -20°C to 60°C. Compact dimensions with 123mm width, 55mm length, and 70mm depth. Direct mounting beneath three-pole contactors or independent mounting on DIN rails.

Sealable cover design enhances safety and tamper resistance. Insulation voltage rated at 600V with withstand voltage of 6kV for durability. Explore Schneider Electric products and their full range of Thermal Overload Relays for reliable motor protection solutions on EnvMart.
