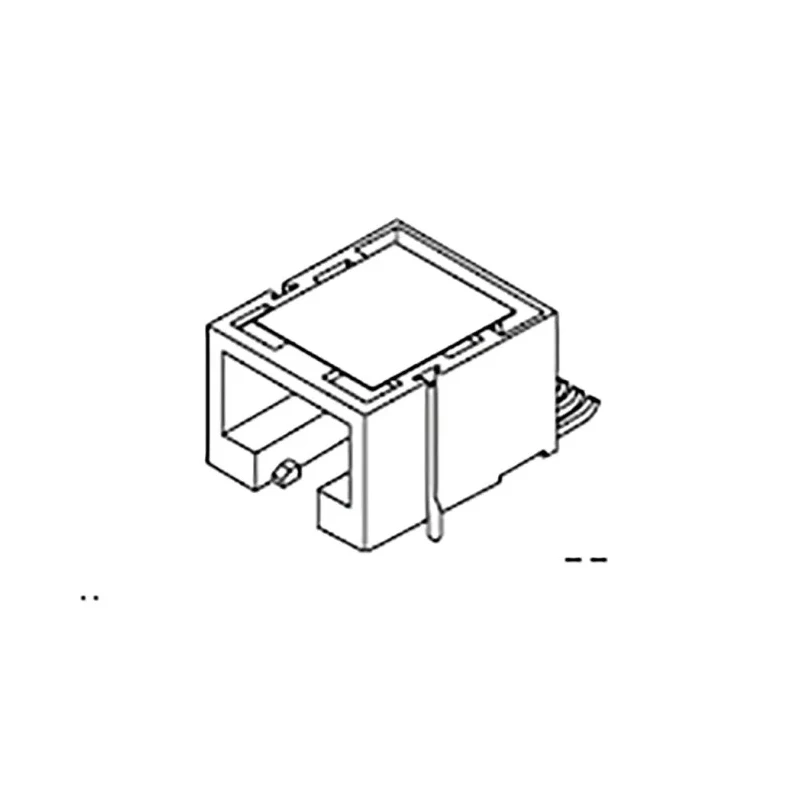

Molex 85502 Series RJ45 Connector Female Surface Mount Cat3 Unshielded Right Angle 1 Port 8 Way RJ45

Molex RJ45 Connector RJ45 model is a female, surface mount modular jack designed specifically for Cat3 Ethernet applications. Featuring a right angle orientation and unshielded design, this connector supports 1 port and 8 ways, providing reliable and efficient connectivity in networking environments. The product is manufactured with copper alloy contacts plated with gold over nickel palladium, enhancing signal integrity and corrosion resistance. It is engineered to operate within a minimum temperature of -40°C and a maximum of 85°C, suitable for diverse industrial and commercial applications. This connector meets IEC 60603-7 and TIA-1096-A standards, guaranteeing compliance with international quality benchmarks.

The Molex 85502 series connector offers low profile construction with pin-in-hole reflow solder termination, allowing for secure PCB mounting and ease of assembly. Its right angle mounting type optimizes space on circuit boards, making it ideal for compact device designs. The surface mount design and tape & reel packaging facilitate automated PCB assembly processes. Absence of magnetic components and LEDs ensures compatibility where electromagnetic interference and visual indicators are not required. The connector has precise dimensions of 11.5mm width, 18.1mm depth, and 15.24mm length, supporting installation in tight spaces.

Typical industrial use cases include telecommunications, networking hardware assembly, office equipment, and computer peripheral manufacturing. It provides an essential interface for Cat3 Ethernet signals, commonly used in low-speed local area networks and voice/data communications. The connector's unshielded design suits environments where electromagnetic shielding is not mandatory, facilitating cost-effective network infrastructure solutions.

Package contents include 1 piece of Molex 85502 Series RJ45 Connector Female Surface Mount. This component is part of the established 85502 series, known for quality and reliability in electronic connector applications. The product enables designers and manufacturers to build efficient, space-saving network interface hardware adhering to international standards.

Explore a broad range of electronic Connectors and components at EnvMart to meet all your industrial and commercial connectivity needs. Constructed with copper alloy contacts plated gold over nickel palladium for durability.

Low profile, pin-in-hole reflow solder termination for secure PCB mounting. Operational temperature range from -40°C to 85°C for wide application range. Compliant with IEC 60603-7 and TIA-1096-A international standards. Right angle, surface mount design optimizes circuit board space.
