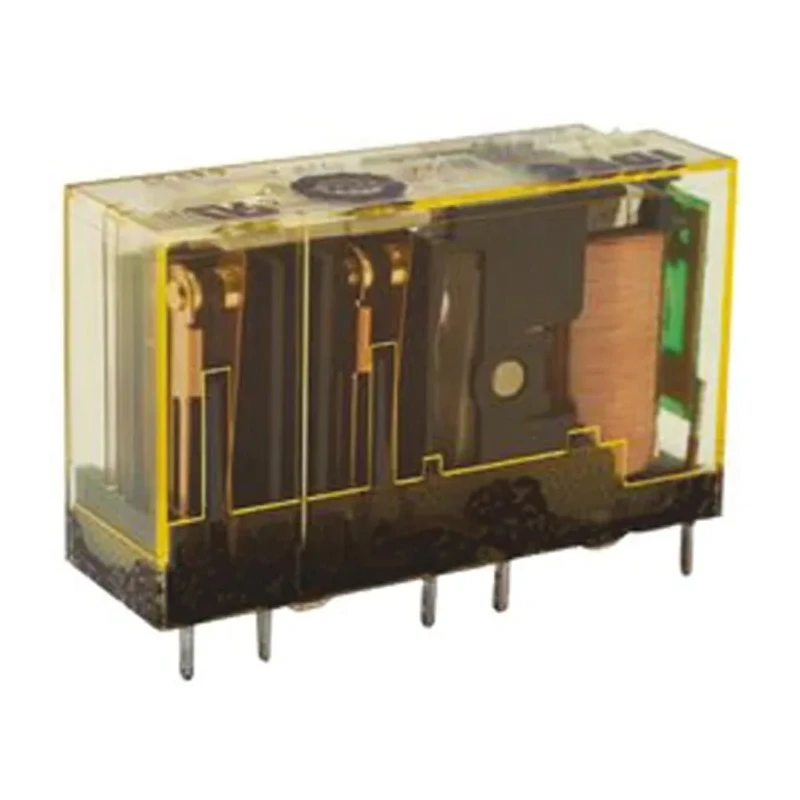

Idec Force Guided Relay PCB Mount 24V Coil Voltage 4-Pole DPDT RF1V-2A2BL-D24
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Height | 24mm |
| Length | 40mm |
| Model | RF1V-2A2BL-D24 |
| Depth | 13mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RF1V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Terminal type | PCB Terminal |
| Number of Poles | 4 |
| Coil Resistance | 1.6Ω |
| Coil Power | 360mW |
| Isolation Coil To Contact | 4kV ac |
Key Features
- Compact PCB mount design ideal for control circuit integration.
- Force guided contact mechanism ensures safe operation in safety circuits.
- Coil operates at 24V with power consumption of 360mW and coil resistance of 1.6Ω.
- Operating temperature range from -40°C to 85°C for industrial environments.
- Durable Silver Alloy contacts provide reliable electrical conductivity.
- High coil-to-contact isolation rated at 4 kV AC for safety and noise immunity.
- Fast response time of up to 8 ms suitable for emergency stop and safety controls.
- Manufactured in Japan ensuring premium build quality and reliability.
Product Description
Idec RF1V-2A2BL-D24 Force Guided Relay is a PCB mount relay designed for use in critical safety circuits such as interlock switches, light curtains, and emergency stop applications. This 24V coil relay features a force guided contact mechanism providing reliable and safe switching.
The relay includes a 4-pole DPDT contact configuration with silver alloy contacts to ensure excellent conductivity and durability under demanding industrial conditions. It is optimized for fast response with a maximum switching time of 8 milliseconds, supporting efficient safety control system operations.
The coil has a resistance of 1.6Ω and power rating of 360mW, suitable for low power consumption applications. The relay supports an operating temperature range from -40°C to +85°C, making it resilient to harsh environmental conditions frequently encountered in manufacturing, automation, and control gear scenarios.
The isolation between coil and contacts is rated at 4 kV AC, providing strong electrical separation to enhance safety and reduce interference. Its compact physical dimensions of 40 x 24 x 13 mm enable easy integration on PCBs without occupying excessive space.
Commonly applied in industrial automation, safety relay modules, and manufacturing control systems, the RF1V series is known for high shock resistance and features available options such as built-in LED indicators and various pole configurations for flexible use cases.
Compact PCB mount design ideal for control circuit integration. Force guided contact mechanism ensures safe operation in safety circuits. Contact configuration: Double Pole Double Throw (DPDT) with 4 poles. Coil operates at 24V with power consumption of 360mW and coil resistance of 1.6Ω.
Operating temperature range from -40°C to 85°C for industrial environments. Durable Silver Alloy contacts provide reliable electrical conductivity. High coil-to-contact isolation rated at 4 kV AC for safety and noise immunity.
Fast response time of up to 8 ms suitable for emergency stop and safety controls. Compact dimensions: 40mm length, 24mm height, and 13mm depth. Manufactured in Japan ensuring premium build quality and reliability. Explore our complete range of safety relays and Force Guided Relays at EnvMart to find the perfect solution for industrial and automation safety requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this model is 24V.
It features a Double Pole Double Throw (DPDT) contact configuration with 4 poles.
The coil has a power consumption of 360mW.
The relay has compact dimensions of 40mm in length, 24mm in height, and 13mm in depth.
It operates within a temperature range of -40°C to +85°C.
It utilizes durable Silver Alloy contacts for reliable electrical conductivity.
The coil resistance is 1.6Ω.
The isolation between the coil and contacts is rated at 4 kV AC.
It has a maximum switching time of up to 8 milliseconds.
This relay is designed for PCB mounting.
It is commonly applied in critical safety circuits such as interlock switches and emergency stop applications.
This model is manufactured in Japan.
