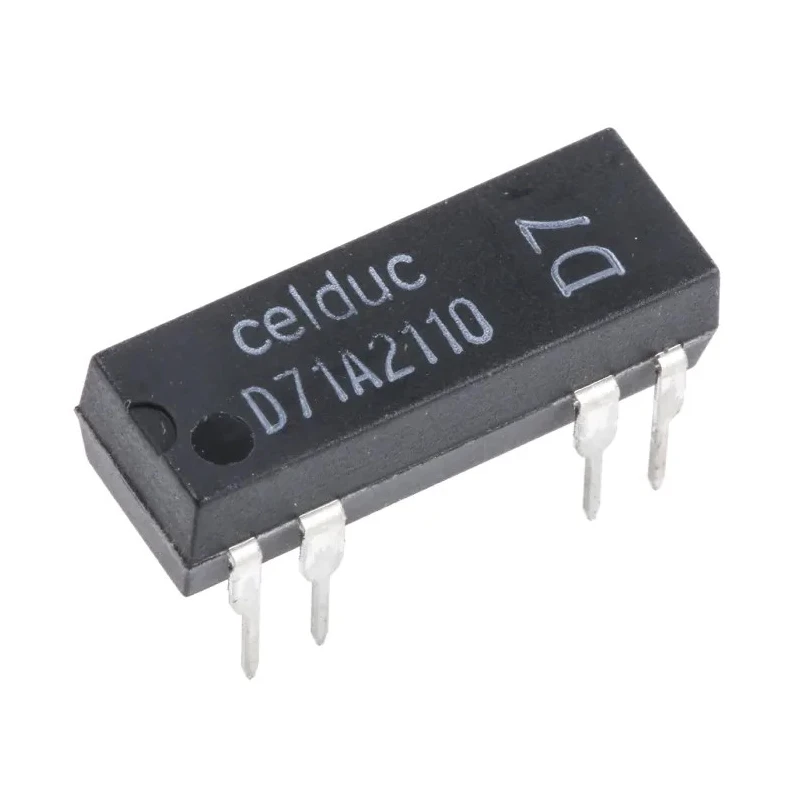

Celduc PCB Reed Relay SPST 5V Coil 10W Power 380 Ω Resistance 100V DC Max 0.5A Max D71A2110

Celduc D71A2110 PCB Reed Relay is a precision-engineered electronic component used primarily for signal switching in industrial, laboratory, and automation systems. Featuring a Single Pole Single Throw (SPST) contact configuration, this relay is equipped with a 5V DC coil and 10W coil power rating, making it well-suited for low-power control circuits on printed circuit boards.

The relay coil has a resistance of 380 Ω, optimized for efficient electromagnetic operation, while providing a rapid operating time of 1 millisecond for swift response in control applications. The PCB mount design with solder terminals allows for secure and reliable integration into assemblies.

Operating safely at voltages up to 100V DC and currents up to 0.5A, this relay delivers dependable switching performance within a temperature range of -40°C to 85°C. The isolation between coil and contacts is rated at 750V AC, providing high electrical isolation to prevent interference and ensure operator safety.

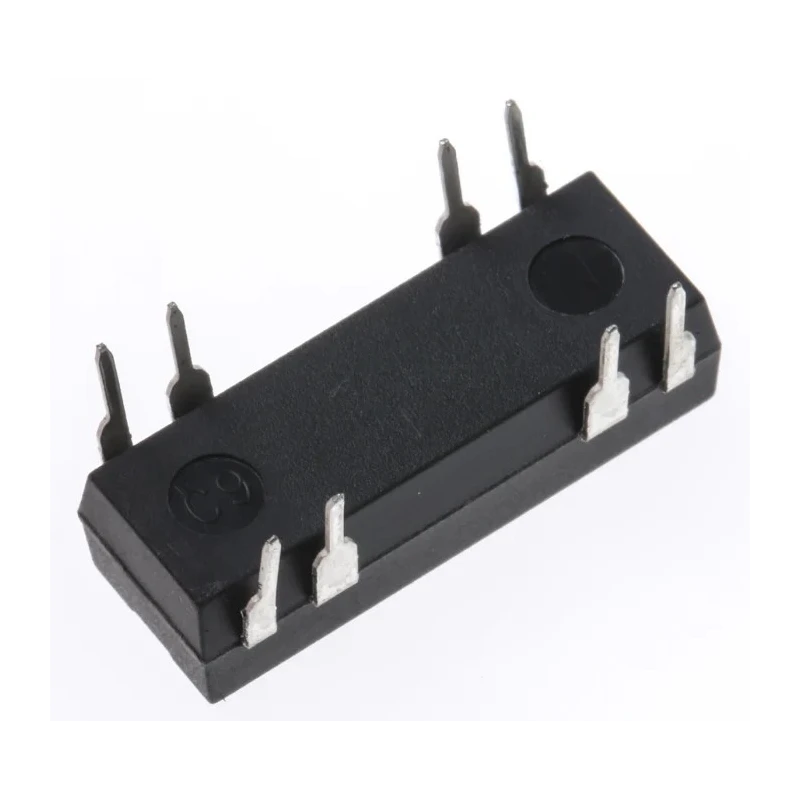

With compact dimensions of 19.1mm length and 5.5mm height, the D71A2110 model from the D31 series features a DIP enclosure with over-moulding comparable to integrated circuit packaging, enhancing durability and ease of handling. Its contact resistance is kept minimal at 150 milliohms, supporting signal integrity in sensitive electronic applications.

This normally open (N/O) configuration reed relay is ideal for use in automated industrial control systems, instrumentation, HVAC controls, telecommunications, and other electronic signal conditioning applications. The product is manufactured in France and meets stringent quality standards despite no formal certifications listed.

Choose this Celduc D71A2110 PCB Reed Relay for reliable switching in demanding industrial and electrical environments where small form factor and precision switching are essential.

This reed relay provides durable SPST switching with quick 1ms operation. PCB mountable with solder terminal connections for robust installation. Supports 5V coil voltage with 10W coil power and 380 Ω resistance. Handles up to 100V DC and 0.5A maximum load current safely.

Designed for operation in broad temperature range -40°C to 85°C. Innovative DIP enclosure offers compact size and protective over-moulding. High coil-to-contact isolation of 750V AC ensures electrical safety. Low contact resistance of 150 milliohms minimizes power losses.

Manufactured in France with quality control standards. Applicable in industrial automation, signal conditioning, and electronic controls. Explore more Reed Relays and control solutions in the Electronics & Electricals category at EnvMart for your industrial and automation projects.
